DrayTek Vigor 2620Ln - xDSL & LTE Router/Firewall

The Vigor 2620Ln is a low cost router/firewall with LTE/4G as the headline connection method. In addition, it can use any one of three methods for its primary WAN (Internet) connectivity, falling back to one of the others in case of service interruption. It has a Dual-SIM cellular (3G/4G/LTE) modem, VDSL2 / ADSL2+ modem (Phone Line Broadband) and Ethernet (RJ45 - which can connect to many other WAN delivery sources), the Vigor 2620Ln provides extreme flexibility to ensure a reliable connection

With the built-in 4G, the Vigor 2620Ln is ideal for mobile Internet connectivity, or locations which wish to use LTE as their primary connectivity method or temporary workplaces.  You have the benefits of a DrayTek firewall, with optional web content filtering, shared by multiple users on wireless or wired connections to the unit.  You slot regular (standard size) SIMs into the back of the vigor 2620Ln for use on any of the UK cellular networks or MVNOs (exc. Relish).

The Vigor 2620Ln then provides Internet access to your local clients and the VPN facility fires up automatically and can provide a secure VPN link back to your HQ, or channel all of your traffic through a compatible 3rd party VPN provider for added security.

Key Features & Benefits

LTE 4G/3G Modem - Up to 150Mbps

Integrated LTE 4G/3G (Category 4) modem, with speeds up to 150Mbps Downstream and 50Mbps Upstream.
Compatible with EE, Vodafone, O2 and Three mobile networks and any MVNOs on those networks.

Benefits: High speed Mobile Broadband. Versatile Connectivity.

Constant Connectivity - Dual-SIM LTE

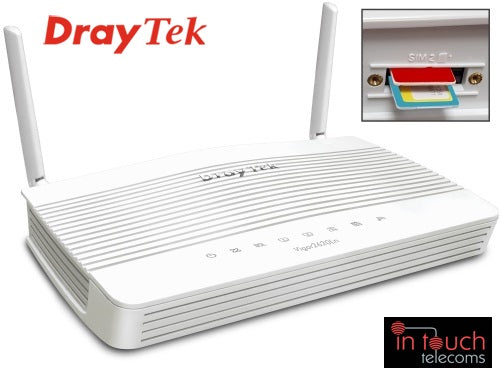

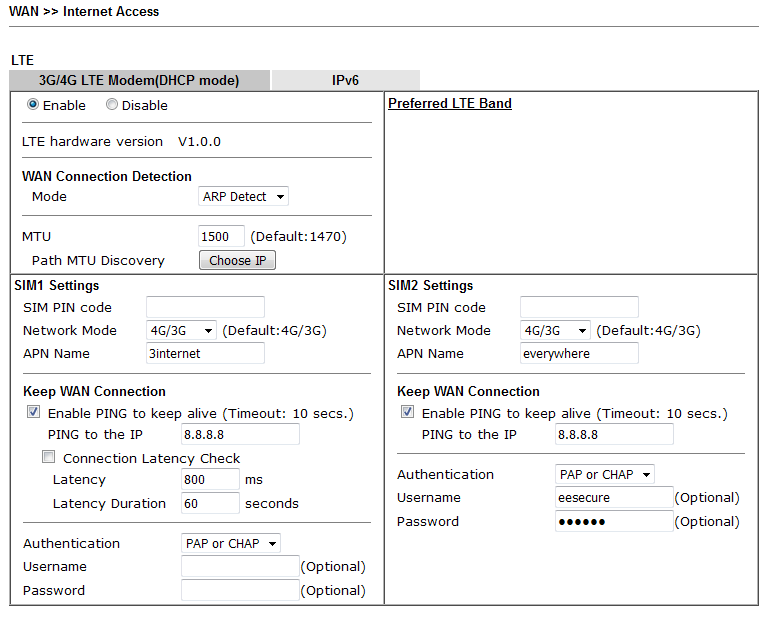

Install 2 SIM cards into the Vigor 2620Ln's integrated LTE 4G/3G modem for primary and backup mobile broadband connections.
Automatically switches to the backup SIM if the main SIM's connection drops, or experiences significant delays.

Benefits: Safeguard against mobile network outages. Ensure constant connectivity.

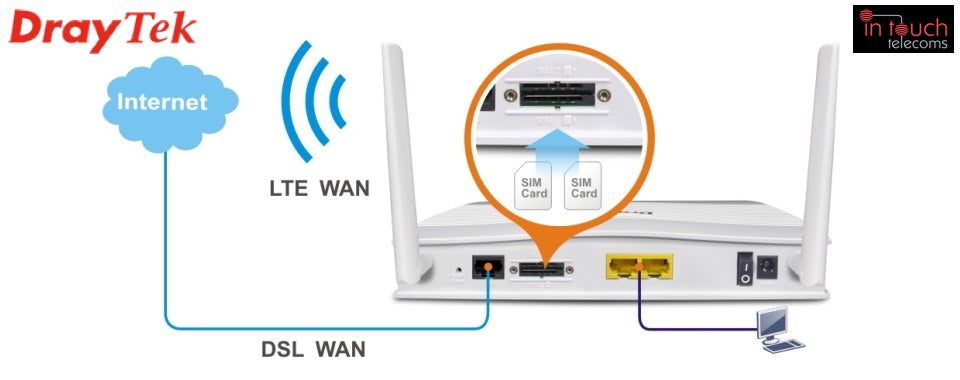

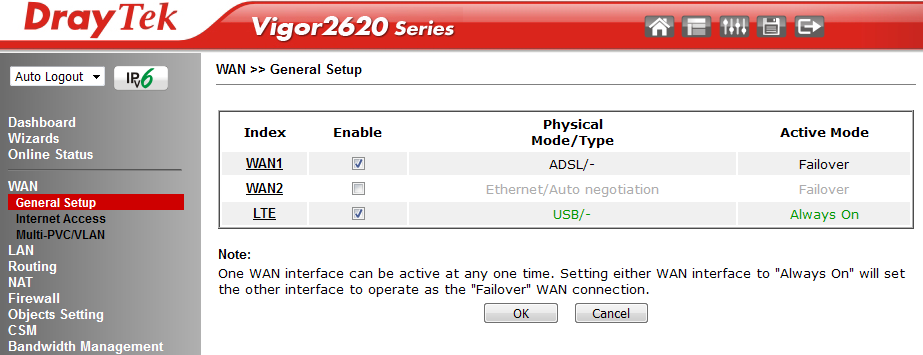

Versatile Multi-WAN Failover

Connect the Vigor 2620 to 4G mobile broadband, ADSL2+, VDSL2 or Ethernet. Intelligently manage data usage on metered connections with WAN Budget.
If the primary connection fails, the Vigor 2620Ln automatically resumes connectivity with its Failover connections.

Benefits: Highly adaptable. Non-stop connectivity.

Gigabit LAN Ports and VLANs

Attach Computers, Servers and Network Attached Storage to the Vigor 2620Ln, with 2 Gigabit (10/100/1000Mbps) LAN ports.

Use VLANs to supply broadband & VPN connectivity to 2 networks.

Benefits: Separate private & guest networks. Make full use of LTE 4G bandwidth.

VDSL2 & ADSL2+ Modem

Connect the Vigor 2620Ln to Fiber to the Cabinet (FTTC) VDSL2 or ADSL, with support for VDSL2 Vectoring. Openreach MCT approved & SIN498 compliant.
Support for IGMP Relay ensures compatibility with IPTV services such as YouView.

Benefits: Compatible with all ISPs in the UK and Ireland.

Virtual Private Networking

Create a secure LAN-to-LAN VPN tunnel from your remote office to the main office. Supports Ipsec IKEv1, IKEv2, DrayTek SSL Tunnel and L2TP with Ipsec. Dial-In to the Vigor 2620Ln's network with DrayTek SSL VPN.

Benefits: Ideal remote working router. Provides securely encrypted network access.

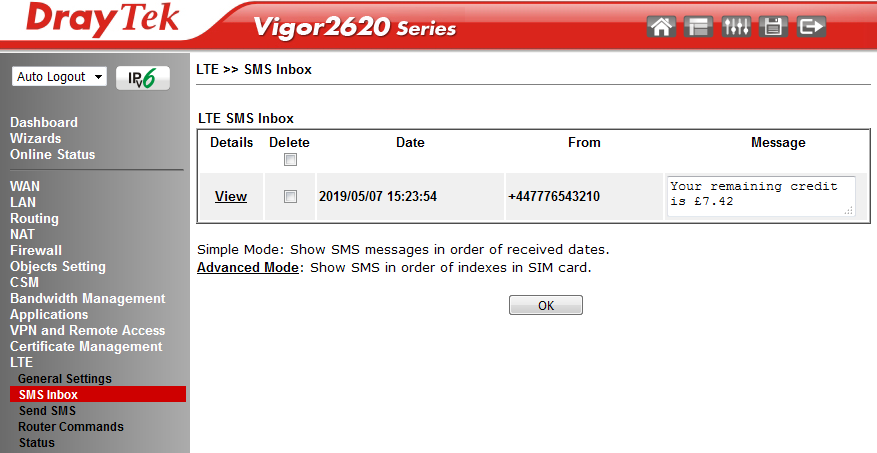

SMS Monitoring & Control

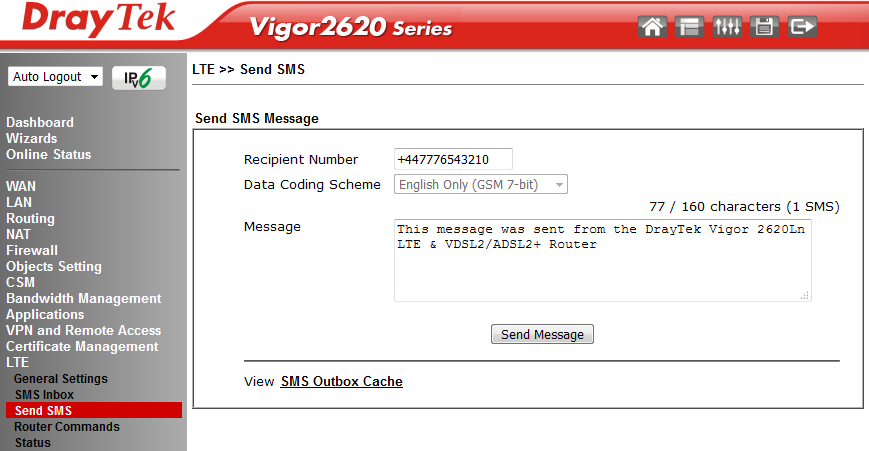

Send and receive SMS text messages through the web interface. Check the connection status of your Vigor 2620Ln by sending it a text message, it replies back with its current Internet IP, uptime & data usage.

Benefits: Easily manage the Vigor 2620Ln and its SIMs remotely.

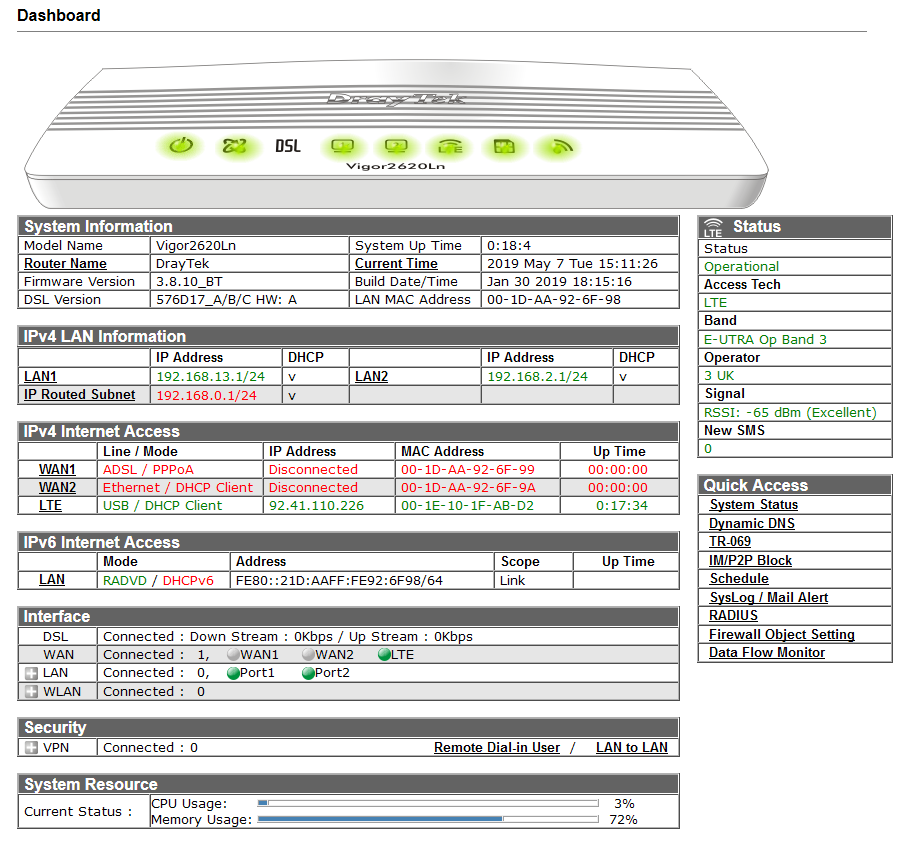

Designed for Centralised Management

Configure and manage the Vigor 2620Ln remotely through the VigorACS central management platform.

Benefits: Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

How to setup up your Draytek 2620ln router instruction video

Technical Specifications

  • Key Specifications

    • Multi-WAN Router with Failover
    • 4G/LTE with dual-SIMs for second backup telco
    • VDSL/ADSL Port for wired broadband
    • Ethernet (RJ45)
    • IPv4/IPv6 Dual-Stack
    • 2 Gigabit LAN Ports
    • Removable LTE/4G Antenna
    • Built-in Wireless LAN (802.11n)
    • Quality of Service Assurance
    • Dial-out LAN-to-LAN VPN
    • Incoming SSL VPN
    • VLANs (Port, 802.1q & Wireless)
    • Optional VigorCare Available
    • Can be centrally Managed by VigorACS

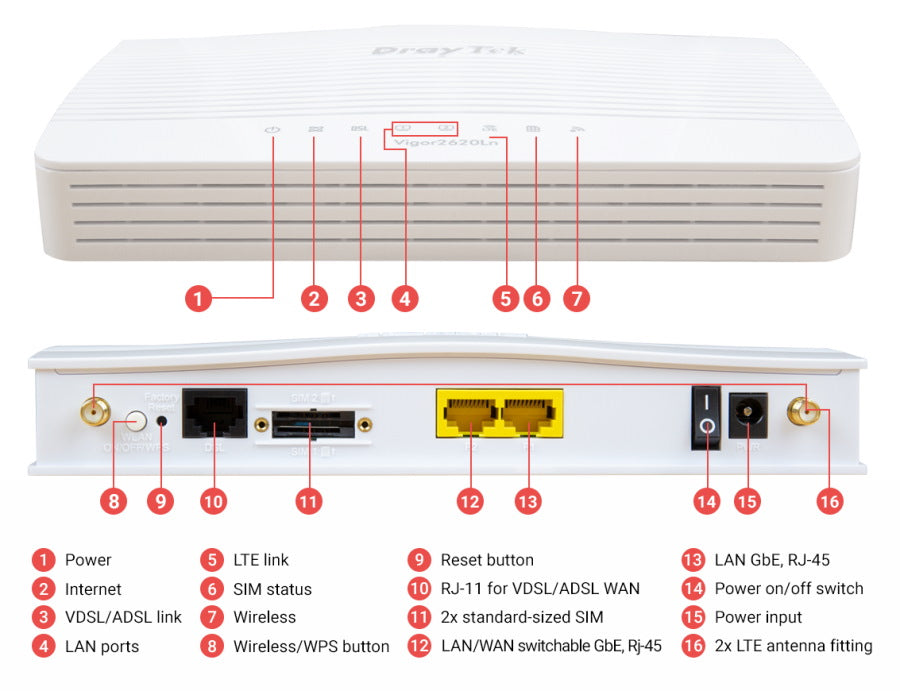

  • Physical Interfaces

    • LAN Ports (Switch)

      • 2 x Gigabit Ethernet (1000Mb/s) Ports (P2 switchable to WAN2 port)

    • WAN Ports (one as primary, others as failover)

      • WAN1 : ADSL/VDSL - RJ-11
      • WAN2 : Gigabit Ethernet - RJ-45
      • LTE : 3G/4G/LTE modem - Dual-SIM Slot
    • 2 x Removable LTE Wireless antennas
    • Wireless On / Off / WPS button
    • Recessed Factory Reset button

  • Performance

    • Firewall: Up to 300Mb/s
    • NAT Sessions: 30,000
    • Wireless LAN: Up to 300Mb/s (2 Spatial Streams @ 40MHz)
    • IPSec VPN: Up to 50Mb/s (using AES 256-bit encryption)
    • SSL VPN: Up to 25Mb/s

  • 4G LTE Modem Features

    • Dual SIM
    • 4G LTE Category 4 Modem with fallback to 3G / GPRS
    • Unlocked to any network (BT, EE, 3, O2, Vodafone, Eircom)
    • 4G LTE Max Data Rates:
      • 150Mbps Downlink (Category 4)
      • 50Mbps Uplink (Category 4)
    • 3G Max Data Rates:
      • 42Mbps Downlink (Category 24)
      • 5.76Mbps Uplink (Category 9)
    • 4G LTE (FDD – Frequency Division Duplex) Bands:
      • 1 (2100Mhz)
      • 3 (1800Mhz)
      • 5 (850Mhz)
      • 7 (2600Mhz)
      • 8 (900Mhz)
      • 20 (800Mhz)
    • 3G (WCDMA/HSPA+/UMTS) Bands:
      • 1 (2100MHz)
      • 5 (850Mhz)
      • 8 (900MHz)
    • GSM / GPRS Bands:
      • 850MHz
      • 900MHz
      • 1800MHz
      • 1900MHz

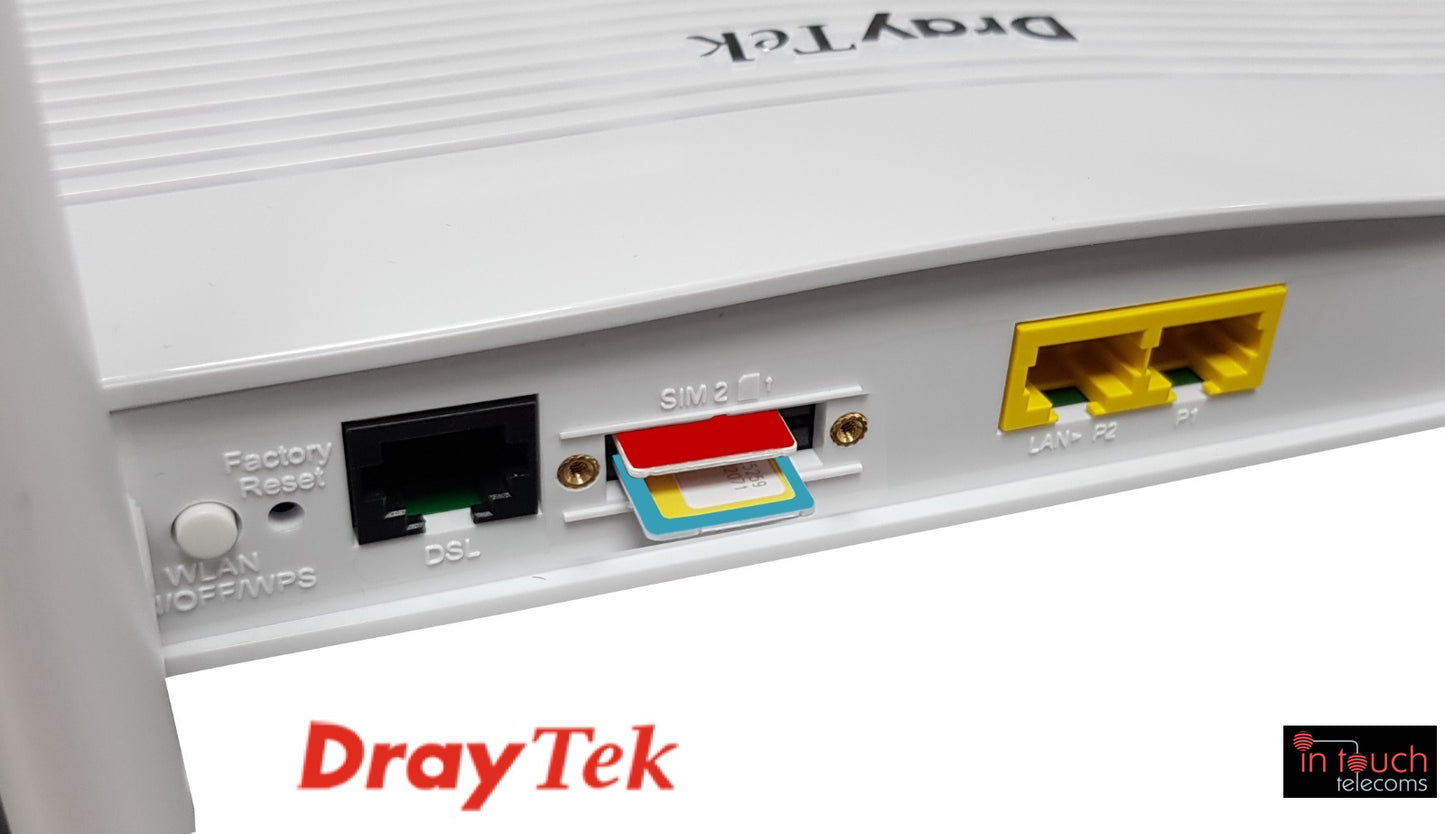

    • 2 Standard-Size SIM Slots (primary & backup)
    • Removable SIM slot cover
    • 2 Removable LTE Wireless Antennas (SMA connector fitting)
    • SMS Inbox - Send & Receive SMS text messages

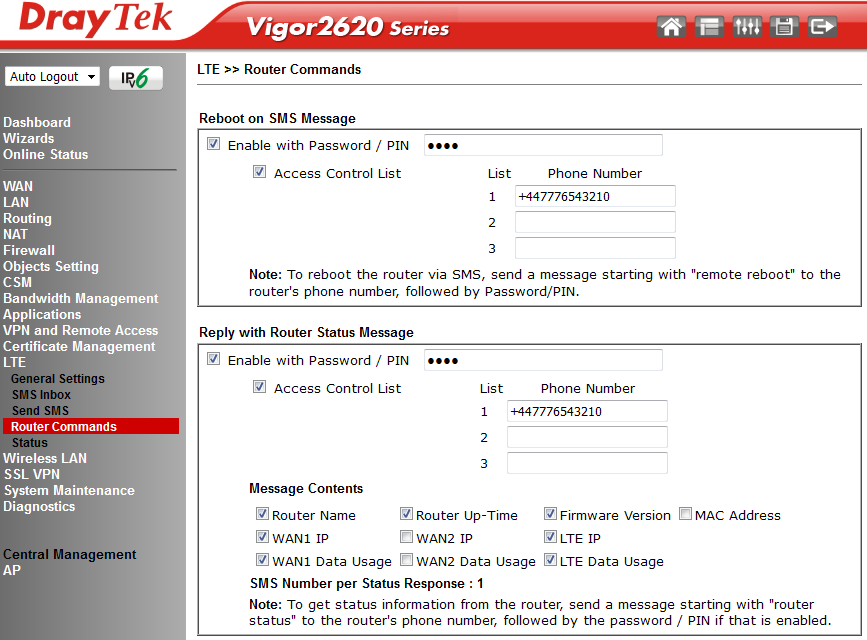

    • SMS Router Commands - Status Report, Reboot via text message

  • Wireless LAN Features

    • 2.4GHz - 802.11b/g/n Wireless
    • Wireless LAN On/Off button
    • 2 Internal Wireless Antennas
    • Up to 4 SSIDs
    • Whitelist / Blacklist individual wireless clients per SSID (by MAC address)
    • Time Scheduling for Wireless radio and/or individual SSIDs
    • Active Client list in Web Interface
    • Station Control, limit wireless client access time per day
    • Wireless Rate-Control
    • Wireless Client Isolation per SSID
    • WPA/WPA2 Encryption
    • Access Point Discovery
    • WDS (Wireless Distribution system) for WLAN Bridging and Repeating
    • WMM (Wi-Fi Multimedia) support

  • Firewall & NAT Features

    • 40 Port Redirection rules
    • 40 Open Port rules (10 port ranges per rule)
    • DMZ Host
    • Configurable SIP (VoIP) & RTSP Application Layer Gateway (ALG) services
    • Policy-Based Firewall
    • MAC Address Filter
    • SPI ( Stateful Packet Inspection ) with FlowTrack Mechanism
    • DoS / DDoS Protection
    • IP Address Anti-spoofing
    • E-Mail Alert and Logging via Syslog
    • Bind IP to MAC Address
    • Object-based Firewall to apply rules to Objects / Groups as well as subnet/network addresses

  • Routing & Failover Features

    • Route Policy - Outbound Policy-Based Routing to direct traffic via:
      • NAT or Routing
      • WAN Interface
      • LAN Interface
      • Specific LAN Gateway
      • VPN Tunnel
    • WAN Budget - Manage bandwidth usage on metered connections
    • WAN Connection Fail-over
    • Static Route for IPv4/IPv6

  • Content Security Management (CSM) Features

    • Part of the DrayOS Object based Firewall system
    • Apply Content Filtering to specific IP ranges and subnets
    • Apply different Content Filter profiles to different groups
    • Schedule restrictions to specific times of day
    • URL Keyword Filtering:
      • Whitelist or Blacklist specific sites or keywords in URLs
      • Prevent accessing of web sites by using their direct IP address (thus URLs only)
    • Web Content Filtering:
      • Block Web sites by category e.g. Adult, Gambling etc.
      • Includes free 30-day trial
    • DNS Filtering:
      • Applies URL/Web Content Filtering to DNS Lookups
      • Provides effective App and HTTPS Content Filtering
    • App Enforcement:
      • Block access to services and applications passing through the router
      • Block popular P2P (Peer-to-Peer) file sharing programs
      • Control access to Instant Messaging programs such as Skype, Whatsapp and Facebook Messenger
      • Block VPN connections and other Tunneling services being established through the router
      • Control access to Streaming services such as Youtube

  • Bandwidth Management

    • Temporary (5 minute) Quick Blocking of any LAN Client
    • Bandwidth Limit (Shared or individual limit)
    • Smart Bandwidth Limitation (Triggered by Traffic / Session)
    • Session Limit

  • Quality of Service (QoS)

    • Guaranteed Bandwidth for VoIP
    • Class-based Bandwidth Guarantee by User-Defined Traffic Categories
    • Layer 2&3 (802.1p & TOS/DCSP)
    • DiffServ Code Point Classifying
    • 4-level Priority for each Direction (Inbound / Outbound)
    • Bandwidth Borrowing

  • Dial-in (Host) VPN Facilities

    • SSL VPN (TLS) connections
    • 2 Concurrent active Remote Dial-In User VPN Tunnels

  • LAN-to-LAN Dial-Out VPN Facilities

    • 2 Concurrent active dial out VPN Tunnels
    • VPN Pass-Through
    • DrayTek VPN Matcher - New!
    • Tunnelling Protocols:
      • PPTP
      • IPSec
      • L2TP
      • L2TP over IPSec
      • DrayTek SSL
    • IPSec Features:
      • Internet Key Exchange : IKEv1 (Main and Aggressive mode) & IKEv2
      • Security Protocols : AH mode, ESP mode
      • IKE Authentication : Pre-shared Key or X.509 Digital Signature
      • DHCP over IPSec
      • NAT-Traversal (NAT-T)
      • Dead Peer Detection (DPD)
      • Virtual IP Mapping, map a remote IP subnet/range to another range to resolve IP subnet/range conflicts
      • DiffieHelman (DH) Groups:
        • IKEv1 : 1,2,5,14
        • IKEv2 : 1,2,5,14,19,20,21
      • Encryption:
        • DES / 3DES (168bits)
        • AES (128/192/256bits) - Hardware-Accelerated
      • Authentication - Hardware-Accelerated:
        • MD5
        • SHA-1
        • SHA-256

  • Network Features

    • 2 LAN Subnets with NAT/Routing modes (IPv4)
    • IPv6 Subnet (as provided by your ISP)
    • LAN Clients : Up to 253 per subnet
    • Multi Subnet DHCP Servers with DHCP Relay
    • Port-Based VLAN (Inclusive/Exclusive Groups)
    • 802.1q VLAN Tagging
    • Custom DHCP Option support
    • Port Mirroring
    • Dynamic DNS
    • DrayTek DrayDDNS Support
    • DNS Transparent Proxy
    • DNS Caching
    • NTP Client (Synchronise Router Time)
    • Maximum MTU 1534

  • Router Management

    • Web-Based User Interface (HTTP / HTTPS)
    • CLI ( Command Line Interface ) via Web Console, Telnet or SSH
    • Administration Access Control

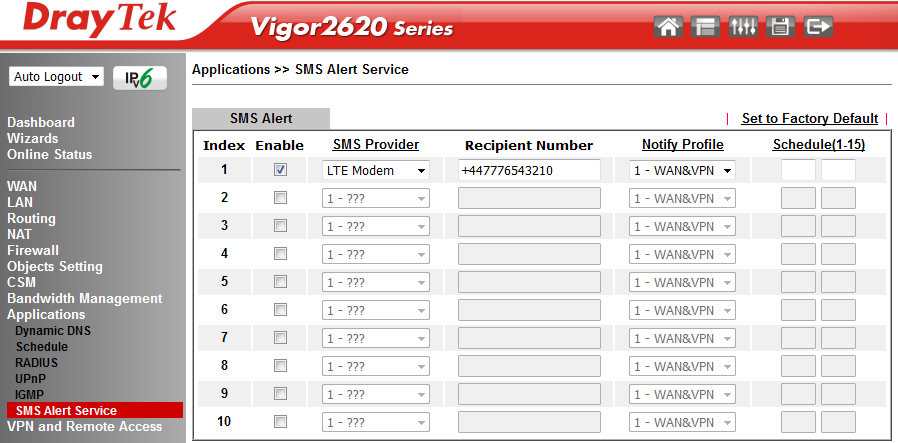

    • SMS Alert Service
    • Brute Force Protection
    • Configuration Backup / Restore
    • Built-in Diagnostic Function (ping, traceroute)
    • Firmware Upgrade via Web Interface, TFTP, VigorACS
    • Logging via Syslog
    • SNMP v2 & v3 Management with MIB-II
    • TR-069
    • TR-104

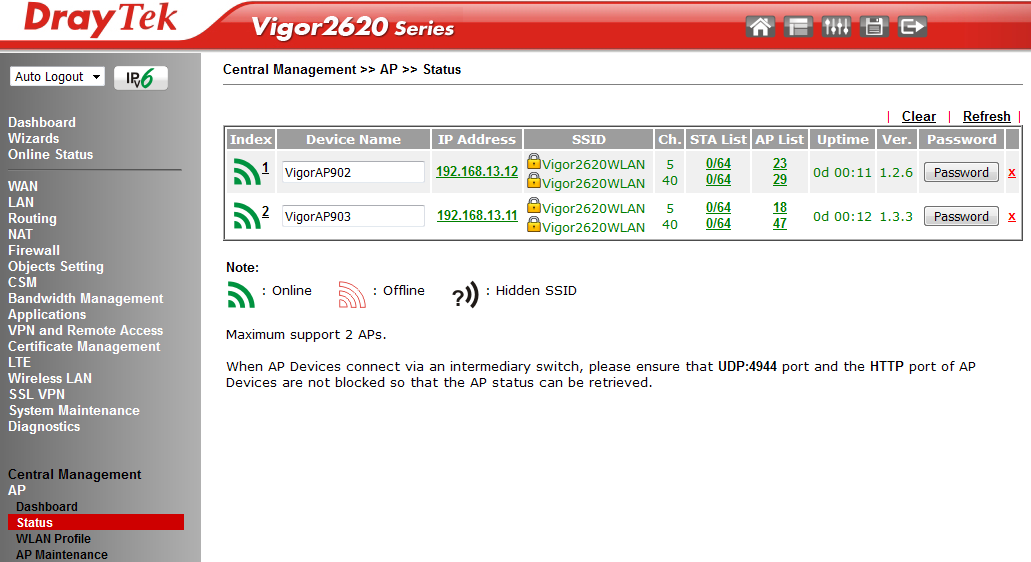

    • Access Point Management: Centrally Manage 2 DrayTek VigorAP wireless access points

  • WAN Features

    • WAN Connection Fail-over
    • WAN1 Service & Customer (double-tag) VLAN support
    • IGMP Proxy - for compatibility with IPTV services
    • Multi-PVC/VLAN virtual WAN interfaces for Management / IPTV services

  • WAN Protocols

    • DHCP Client
    • Static IP
    • PPPoE
    • PPTP/L2TP (Ethernet WAN only)

  • ADSL & VDSL Compatibility

    • BT Infinity Option 1 & Option 2 Compatible
    • Support for G.INP & Vectoring
    • BT Openreach SIN 498 MCT Approved

    • ADSL Standards

      • ANSI T1.413 Issue2
      • ITU-T G.992.1 G.dmt (ADSL)
      • ITU-T G.992.2 G.lite
      • ITU-T G.992.3 ADSL2
      • ITU-T G.992.5 ADSL2+
      • Annex L (READSL)
      • Annex A
      • Annex M
      • ANFP Issue 3 Compliant/Certified (for Annex A & Annex M)
      • DSL Forum : TR-048/67 & TR-100

    • VDSL Standards

      • ITU-T VDSL2 G.993.2
      • ITU-T G.993.1, G.997.1
      • Band Plan: G.998, G.997
      • Annex A, Annex B, Annex C
      • VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
      • OLR, UPBO, DPBO Supported
      • US0 Supported
      • Loop Diagnostic Mode
      • DSL Forum WT-114

    • ATM Protocols

      • RFC-2684/RFC-1483 Multiple Protocol over AAL5
      • RFC-2516 PPP over Ethernet
      • RFC-2364 PPP over AAL5
      • PPPoE pass through LAN/WLAN
      • PPPoE/PPPoA Relay
      • Transparent bridge for MPoA
      • Multiple PVC support for Triple Play Applications (up to 8 simultaneous)
      • Support for RFC4638 for MTU up to 1500

  • Operating Requirements

    • Wall Mountable
    • Operating Temperature : 0 °C ~ 45 °C
    • Storage Temperature : -25 °C ~ 70 °C
    • Humidity 10% ~ 90% (non-condensing)
    • Power Consumption: 12 Watt Max.
    • Dimensions:
      • Length: 207mm
      • Width: 131mm
      • Height: 39mm
    • Weight: 440g (without antenna)
    • Operating Power: DC 12V 1A (via external PSU, supplied)
    • Power Requirements : 220-240VAC

  • Box Contents

    • Vigor 2620Ln Router
    • Quick Start Guide
    • Cat-5e RJ-45 Cable
    • Detachable (SMA connector) LTE Antennas
    • DC 12V PSU

  • Warranty

    • Two (2) Year Manufacturer's RTB
    • Optional VigorCare Enhanced Warranty Available
      • VigorCare B3 3 Year Subscription: VCARE-B3
      • VigorCare B5 5 Year Subscription: VCARE-B5
      • Available on request

Shipping

We require 1 working day to process your order and aim to deliver your goods within 3 working days. Working days are Monday to Friday.  Our Logistics Centre will process orders up to 11pm the same day.  For example, if you place an order on Monday at 8am, your order will be processed that day before 11pm and leave our logistics centre on Tuesday.

The majority of goods are despatched between 1-3 working days subject to availability.  If you opt for the standard delivery service, you will receive your order within 1-3 days.  You can opt for an enhanced delivery service for a quicker service.  Some goods are despatched from overseas locations and therefore you will experience a longer lead time.  You will be notified if an order is being fulfilled from an overseas location.

Returns

We accept returns within 30 days. All we ask is that the item is returned in its original condition we all seals intact.

Note: You are not able to return any type of item that cannot be resold for hygiene reasons, such as headphones, earpieces etc

Please read our returns policy

Warranty

All products come with the standard manufacturer warranty. Extended warranty can also be purchased. Read more...

View full details

  • Many more brands available...

    We are a UK distributer and have access to over 500 brands and 100,000 products.  We cannot get all of this on the website, so contact us for a quote.

    Contact us
