DrayTek

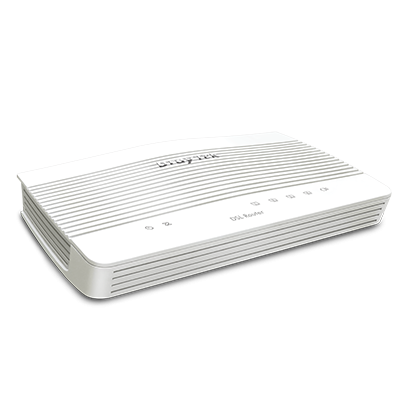

DrayTek Vigor 2763ac ADSL or VDSL SoHo Router/Firewall | V2763AC-K

DrayTek Vigor 2763ac ADSL or VDSL SoHo Router/Firewall | V2763AC-K

Regular price £198.95 GBP
Regular price £198.95 GBP Sale price £198.95 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek Vigor 2763ac ADSL or VDSL Router/Firewall | V2763AC-K

Specifications

  • VDSL2 (Superfast Fibre) or Gigabit Ethernet WAN Router with Failover
  • Up to 950Mbps Firewall Throughput for Ethernet WAN
  • 4 Gigabit LAN Ports
  • 4 LAN Subnets with VLANs (Port-based / 802.1q)
  • SPI Firewall and Content Filtering
  • Up to 200Mbps IPsec VPN Throughput
  • 2 LAN-to-LAN or Remote Teleworker VPN Tunnels
  • DrayTek SSL VPN and OpenVPN support
  • Optional VigorCare Available
  • Can be centrally Managed by VigorACS

The Ideal SoHo VPN Router for VDSL and Gigabit Fibre

The DrayTek Vigor 2763 series VDSL and Ethernet VPN routers are ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband.

Incorporating Wireless in the Vigor 2763ac model, the Vigor 2763 series provide a reliable, highly integrated and reliable connectivity solution for SoHo networks.

DrayTek Vigor 2763 series

Key Features & Benefits

VDSL and Ethernet Router

Connect the Vigor 2763 to Superfast Fibre with its integrated VDSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.

Benefits: Suitable for all UK Broadband services. DrayTek Firewall, Content Filtering and Quality of Service.

AC1300 Wireless with Mesh

Connect DrayTek VigorAP Access Points to the router in a wireless Mesh. DrayTek’s Self-Optimising Mesh ensures access points are always connecting through the best path to your Router.

Benefits: Easily expand wireless coverage. Reduces the need for cable installation.

Packed With Features

Configure DrayTek’s rich feature set to fit your network with App level network management, Route Policy, Quality of Service, VPN Matcher, advanced 2-factor security, DrayDDNS and more.

Benefits: Convenient and powerful DrayTek router features for hassle-free networking.

Powerful SoHo VPN Router

Connect remote locations with 2 VPN tunnels for Remote Dial-In User Teleworker and Dial-Out LAN to LAN VPN. Up to 200Mbps IPsec performance, with SSL and OpenVPN support.

Benefits: Securely access resources remotely. Connect to VPN services for secure browsing.

4 Gigabit LAN Ports with VLANs

Allows Computers, Servers and Network Attached Storage to transfer at Gigabit speed. Up to 4 LAN subnets and VLANs allow you to keep Guest networks from accessing private network data.

Benefits: Improve quality of service for private and guest data traffic.

VigorACS Central Management

DrayTek's powerful VigorACS central management platform allows you to manage, monitor and configure the Vigor 2763, along with all other DrayTek products remotely across multiple locations.

Benefits: Save time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

The Vigor 2763 series comes in different models depending on the features required. Please double check when ordering that you have selected the correct product and a product intended for the correct region/network.

This model:

UK Product Code EAN Product Name Product Description
V2763-K 4710484745330 Vigor 2763 (UK/IE) Vigor 2763 wired VDSL and Ethernet Router

Other models in the Vigor 2763 router series:

UK Product Code EAN Product Name Product Description
V2763AC-K 4710484745347 Vigor 2763ac (UK/IE) Vigor 2763ac VDSL and Ethernet Router with Wi-Fi 5 AC1300 Wireless

The EAN is a barcode number which identifies the unique specific product type. It is separate to the product serial number which is unique to each product. The EAN will also appear on your product box when you receive it so you can double check that you have been sent the right product.

These product codes are for UK/Irish products only. Please check with your local DrayTek office for the correct part nos. for your region if you are not in the UK/IE to ensure that you get the correct hardware and local support/warranty.

Technical Specification (UK Hardware Spec.)

Physical Interfaces

  • WAN1: VDSL2 / ADSL2+, RJ-11
  • WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
  • WAN3: USB 2.0 Port for 3G/4G Modem (not included)
  • LAN Ports: 4x Gigabit Ethernet (1G/100M/10M), RJ-45 (3x with WAN2 enabled)
  • 2x USB 2.0 Port for USB storage, thermometer or Printer
  • Recessed Factory Reset button

Performance

  • Router Performance:
    • 100 Mb/s Max Sync Rate with VDSL2
    • 950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
    • 700 Mb/s NAT Throughput per WAN without Hardware Acceleration
    • 50,000 NAT Sessions
  • VPN Performance:
    • 200 Mb/s IPsec (AES256) VPN Throughput
    • 80 Mb/s SSL VPN Throughput
    • Max. 2 Concurrent VPN Tunnels

Internet Connection

  • Hardware Acceleration
  • 802.1p/q Multi-VLAN Tagging
  • Multi-VLAN/PVC
  • Connection Detection: PPP, ARP Detect, Ping Detect
  • WAN Data Budget
  • Dynamic DNS
  • DrayDDNS – with automated LetsEncrypt Certificates
  • Full Feature-set Hardware Acceleration:
    • Hardware Accelerated Quality of Service
    • Multi-WAN Data Budget
    • Traffic Graph & Data Flow Monitor
    • Bandwidth Limit
  • IPv4 Connection Types:  PPPoE / PPPoA, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN)
  • IPv6 Connection Types:
    • DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
    • USB 4G/LTE Modem: TSPC, AICCU

VDSL & ADSL Features

  • BT Infinity Option 1 & Option 2 Compatible
  • Compliant with Openreach SIN 498
  • Auto Detection of VDSL and ADSL line modes
  • Support for G.INP (G.998.4) & Vectoring (G.993.5)
  • VDSL Standards:
    • ITU-T G.993.1 VDSL
    • ITU-T G.993.2, G.997.1 VDSL2
    • Band Plan: G.998, G.997
    • Annex A, Annex B, Annex C
    • VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a (not 35b or G.fast)
    • OLR, UPBO, DPBO Supported
    • US0 Supported
    • Loop Diagnostic Mode
    • DSL Forum WT-114, TR048/67, TR-100
  • ADSL Standards:
    • ANSI T1.413 Issue2
    • ITU-T G.992.1 G.dmt (ADSL)
    • ITU-T G.992.2 G.lite
    • ITU-T G.992.3 ADSL2 including Annex M/J
    • ITU-T G.992.5 ADSL2+ including Annex M/J
  • ATM Protocols:
    • RFC-2684/RFC-1483 Multiple Protocol over AAL5
    • RFC-2516 PPP over Ethernet
    • RFC-2364 PPP over AAL5
    • Support for RFC4638 for MTU up to 1500

Firewall & Content Filtering

  • IP-based Firewall Policy
  • User-based Time Quota
  • DoS Attack Defence
  • Spoofing Defence
  • Content Filtering:
    • Application Content Filter
    • URL Content Filter
    • DNS Keyword Filter
    • Web Features
    • Web Category Filter (requires GlobalView subscription)
    • DoH (DNS over HTTP) & DoT (DNS over TLS) Filtering - New!

NAT Features

  • NAT Port Redirection
  • Open Ports
  • Port Triggering
  • DMZ Host
  • UPnP
  • ALG (Application Layer Gateway):  SIP, RTSP, FTP, H.323
  • VPN Pass-Through:  PPTP, L2TP, IPsec

LAN Management

  • 802.1q Tag-based, Port-based VLAN
  • Up to 4 LAN Subnets
  • Up to 8 VLANs
  • DHCP Server:
    • Multiple IP Subnet
    • Custom DHCP Options
    • Bind-IP-to-MAC
    • DHCP Pool Count up to 253 addresses per subnet
  • Wired 802.1x Port Authentication
  • Port Mirroring
  • Local DNS Server
  • Conditional DNS Forwarding

Networking Features

  • Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
  • DNS Security (DNSSEC)
  • Local RADIUS server
  • SMB File Sharing (Requires external USB storage)
  • Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
  • Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q)
  • Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing

VPN Features

  • 2 Concurrent active VPN Tunnels
  • LAN-to-LAN - Dial-Out VPN Client / Dial-In VPN Server
  • Teleworker-to-LAN – Dial-In VPN Server
  • IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
  • Encryption: MPPE, DES, 3DES, AES (128/192/256)
  • Authentication: SHA-256, SHA-1
  • Dead Peer Detection (DPD)
  • IPsec NAT-Traversal (NAT-T)
  • Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
  • DHCP over IPsec
  • DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
  • VPN Protocols:
    • IPsec IKEv1, IKEv2, IKEv2 EAP
    • IPsec-XAuth
    • DrayTek SSL VPN
    • OpenVPN
    • PPTP for legacy applications
    • L2TP, L2TP over IPsec
  • User Authentication:
    • Local
    • RADIUS
    • mOTP - Mobile One Time Password
    • TOTP - Time-based One Time Password, compatible with Google Authenticator - New!

Bandwidth Management

  • IP-based (IPv4 & IPv6) Bandwidth Limit
  • App-based Bandwdith Limit - New!
  • IP-based (IPv4 & IPv6) Session Limit

Quality of Service (QoS)

  • Classify via TOS, DSCP, 802.1p, IP Address, Service Type
  • 4 Priority Queues
  • App QoS
  • VoIP Prioritization
  • Class-based Outbound Traffic Tagging: DSCP & IP Precedence
  • Hardware QoS - New!

Management

  • Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
  • Config File Export & Import
  • Import Config from Vigor 2760, 2762, 2765, 2766
  • Auto Backup Config to USB Storage – New!
  • Firmware Upgrade via TFTP, HTTP, TR-069
  • 2-Level Administration Privilege
  • Access Control Features: Access List, Brute Force Protection
  • Syslog
  • SMS, E-mail Notification Alert
  • SNMP: v1, v2c, v3
  • Managed by VigorACS

Router Central Management Features

  • AP Management: 2 VigorAP access points

Operating Requirements

  • Wall or Shelf Mountable
  • Temperature Operating: 0 °C ~ 40 °C
  • Storage: -25 °C ~ 70 °C
  • Humidity 10% ~ 90% (non-condensing)
  • Power Consumption: 15 Watts maximum
  • Operating Power: DC 12V (via external PSU, supplied)
  • Power Requirements : 100-240VAC
  • Dimensions:
    • 207mm Width
    • 131mm Depth
    • 42mm Height

Warranty

  • Two (2) Years RTB
  • Optional VigorCare Enhanced Warranty Available

Box Contents

  • Vigor 2763 router
  • Quick Start Guide
  • Screws & wall plugs for wall mounting
  • 2m Cat-5e RJ-45 Network Cable
  • DC 12V Power Supply with UK Plug
