The Ideal SoHo VPN Router for VDSL and Gigabit Fibre

The DrayTek Vigor 2765 series VDSL and Ethernet VPN routers are ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband.

Incorporating Wireless and VoIP features in ‘2765ac’ and ‘2765Vac’ models, the Vigor 2765 series provide a reliable, highly integrated and reliable network solution for SoHo environments.

Click here for the video tutorial

Key Specifications

• VDSL2 (Superfast Fibre) or Gigabit Ethernet WAN Router with Failover
• Up to 950Mbps Firewall Throughput for Ethernet WAN
• 4 Gigabit LAN Ports
• AC1300 - 11ac 'Wave 2' Dual Band Wireless (‘ac’ models)
• 2 LAN Subnets with VLANs (Port-based / 802.1q)
• SPI Firewall and Content Filtering
• Up to 200Mbps IPsec VPN Throughput
• 2 Dial-Out LAN-to-LAN or Remote Teleworker VPN Tunnels
• DrayTek SSL VPN and OpenVPN support
• Optional VigorCare Available
• Can be centrally Managed by VigorACS

Technical Specification (UK Hardware Spec.)

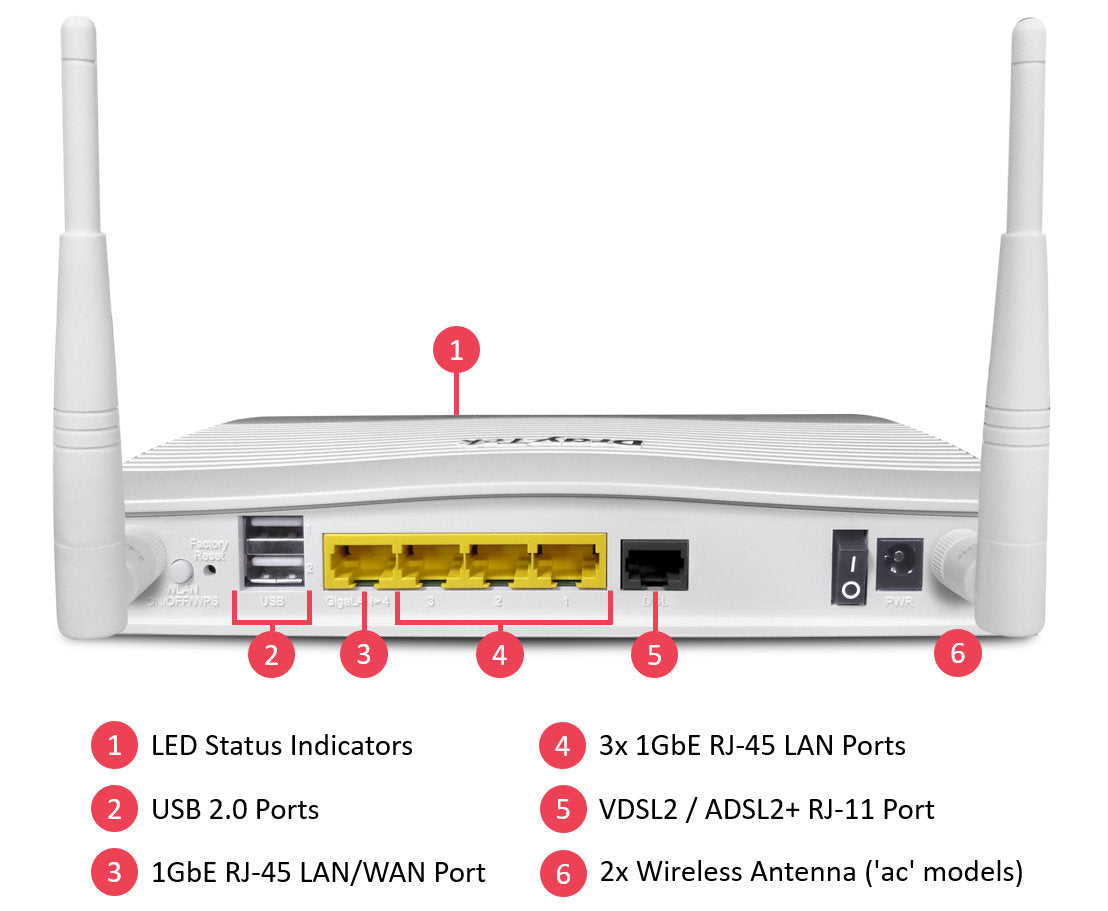

Physical Interfaces

• WAN1: VDSL2 / VDSL2 35b / ADSL2+, RJ-11
• WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
• WAN3: USB 2.0 Port for 3G/4G Modem (not included)
• LAN Ports: 4x Gigabit Ethernet (1G/100M/10M), RJ-45 (3x with WAN2 enabled)
• 2x USB 2.0 Port for USB storage, thermometer or Printer
• 2x Removable Wireless antennas (wireless models)
• Wireless On / Off / WPS button
• Recessed Factory Reset button

Antenna Specifications

• Wireless Antennas:
  • 2x External Dipole
  • 5GHz Gain: 4 dBi
  • 2.4GHz Gain: 2 dBi

Performance

• Router Performance:
  • 100 Mb/s Max Sync Rate with VDSL2
  • 300 Mb/s Max Sync Rate with VDSL2 35b
  • 950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
  • 700 Mb/s NAT Throughput per WAN without Hardware Acceleration
  • 50,000 NAT Sessions
• VPN Performance:
  • 200 Mb/s IPsec (AES256) VPN Throughput
  • 80 Mb/s SSL VPN Throughput
  • Max. 2 Concurrent VPN Tunnels

Internet Connection

• Hardware Acceleration
• 802.1p/q Multi-VLAN Tagging
• Multi-VLAN/PVC
• Connection Detection: PPP, ARP Detect, Ping Detect
• WAN Data Budget
• Dynamic DNS
• DrayDDNS – with automated LetsEncrypt Certificates
• Full Feature-set Hardware Acceleration (requires f/w 4.3.0):
  • Hardware Accelerated Quality of Service
  • Multi-WAN Data Budget
  • Traffic Graph & Data Flow Monitor
  • Bandwidth Limit
• IPv4 Connection Types:  PPPoE / PPPoA, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN)
• IPv6 Connection Types:
  • DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
  • USB 4G/LTE Modem: TSPC, AICCU

VDSL & ADSL Features

• BT Infinity Option 1 & Option 2 Compatible
• Compliant with Openreach SIN 498
• Auto Detection of VDSL and ADSL line modes
• Support for G.INP & Vectoring
• VDSL Standards:
  • ITU-T G.993.1 VDSL
  • ITU-T G.993.2, G.997.1 VDSL2
  • Band Plan: G.998, G.997
  • Annex A, Annex B, Annex C
  • VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
  • OLR, UPBO, DPBO Supported
  • US0 Supported
  • Loop Diagnostic Mode
  • DSL Forum WT-114
• ADSL Standards:
  • ANSI T1.413 Issue2
  • ITU-T G.992.1 G.dmt (ADSL)
  • ITU-T G.992.2 G.lite
  • ITU-T G.992.3 ADSL2
  • ITU-T G.992.5 ADSL2+
• ATM Protocols:
  • RFC-2684/RFC-1483 Multiple Protocol over AAL5
  • RFC-2516 PPP over Ethernet
  • RFC-2364 PPP over AAL5
  • Support for RFC4638 for MTU up to 1500

Wireless Features (‘ac’ models)

• AC1300 - 11ac 'Wave 2' Dual Band Wireless (‘ac’ models):
  • 802.11ac 2x2 wireless access point
  • Compatible with 802.11a/b/g/n wireless
  • Dual-band (2.4/5Ghz) simultaneous wireless
  • Up to 866Mbps PHY rate at 80MHz with 5GHz
  • Up to 400Mbps PHY rate at 40MHz with 2.4GHz (256-QAM)
  • Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80MHz for 5GHz
  • MU-MIMO
  • Tx Beamforming
• Mesh Root support with DrayTek VigorAP Mesh Nodes – New! (requires f/w 4.3.0, available in Q1 2021)
• Up to 4 SSIDs per radio band
• Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
• Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
• Bandwidth Management (Per Station / Per SSID)
• WMM (Wireless MultiMedia)
• WPS - WiFi Protected Setup
• Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
• EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
• Wireless Security:
  • WPA2
  • WPA3 – New! (requires f/w 4.3.0)
  • Pre-Shared Key authentication
  • WEP/WPA for Legacy Clients
  • Access Control – Blacklist / Whitelist client MAC addresses per SSID

Firewall & Content Filtering

• IP-based Firewall Policy
• User-based Time Quota
• DoS Attack Defence
• Spoofing Defence
• Content Filtering:
  • Application Content Filter
  • URL Content Filter
  • DNS Keyword Filter
  • Web Features
  • Web Category Filter (requires GlobalView subscription)

NAT Features

• NAT Port Redirection
• Open Ports
• Port Triggering
• DMZ Host
• UPnP
• ALG (Application Layer Gateway):  SIP, RTSP, FTP, H.323
• VPN Pass-Through:  PPTP, L2TP, IPsec

LAN Management

• 802.1q Tag-based, Port-based VLAN
• Up to 2 LAN Subnets
• Up to 8 VLANs
• DHCP Server:
  • Multiple IP Subnet
  • Custom DHCP Options
  • Bind-IP-to-MAC
  • DHCP Pool Count up to 253 addresses per subnet
• Wired 802.1x Port Authentication
• Port Mirroring
• Local DNS Server
• Conditional DNS Forwarding

Networking Features

• Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country - New!
• DNS Security (DNSSEC)
• Local RADIUS server
• SMB File Sharing (Requires external USB storage)
• Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
• Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q)
• Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing

VPN Features

• 2 Concurrent active VPN Tunnels
• LAN-to-LAN - Dial-Out VPN Client
• Teleworker-to-LAN – Dial-In VPN Server
• User Authentication: Local, mOTP
• IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
• Encryption: MPPE, DES, 3DES, AES (128/192/256)
• Authentication: SHA-256, SHA-1
• Dead Peer Detection (DPD)
• IPsec NAT-Traversal (NAT-T)
• Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
• DHCP over IPsec
• DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
• VPN Protocols:
  • IPsec IKEv1, IKEv2, IKEv2 EAP
  • IPsec-XAuth
  • DrayTek SSL VPN
  • OpenVPN
  • PPTP for legacy applications
  • L2TP, L2TP over IPsec

Bandwidth Management

• IP-based Bandwidth Limit
• IP-based Session Limit

Quality of Service (QoS)

• Classify via TOS, DSCP, 802.1p, IP Address, Service Type
• 4 Priority Queues
• App QoS
• VoIP Prioritization
• Class-based Outbound Traffic Tagging: DSCP & IP Precedence

Management

• Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
• Config File Export & Import
• Import Config from Vigor 2760, 2762
• Auto Backup Config to USB Storage – New!
• Firmware Upgrade via TFTP, HTTP, TR-069
• 2-Level Administration Privilege
• Access Control Features: Access List, Brute Force Protection
• Syslog
• SMS, E-mail Notification Alert
• SNMP: v1, v2c, v3
• Managed by VigorACS

Router Central Management Features

• AP Management: 2 VigorAP access points
• Switch Management: 2 VigorSwitch network switches
• DrayTek Mesh: Up to 7 VigorAP access points – New! (requires f/w 4.3.0, available in Q1 2021)

Operating Requirements

• Wall or Shelf Mountable
• Temperature Operating: 0 °C ~ 45 °C
• Storage: -25 °C ~ 70 °C
• Humidity 10% ~ 90% (non-condensing)
• Power Consumption: 21.8 Watts maximum (Vac model)
• Operating Power: DC 12V (via external PSU, supplied)
• Power Requirements : 220-240VAC
• Dimensions:
  • 207mm Width
  • 131mm Depth
  • 42mm Height

Warranty

• Two (2) Years RTB
• Optional VigorCare Enhanced Warranty Available
  • VigorCare A3 3 Year Subscription: VCARE-A3
  • VigorCare A5 5 Year Subscription: VCARE-A5

Box Contents

• Vigor 2765ac router
• Quick Start Guide
• Screws & wall plugs for wall mounting
• 2m Cat-5e RJ-45 Network Cable
• 2x Detachable Wireless LAN Antennas (‘ac’ models)
• DC 12V Power Supply with UK Plug
