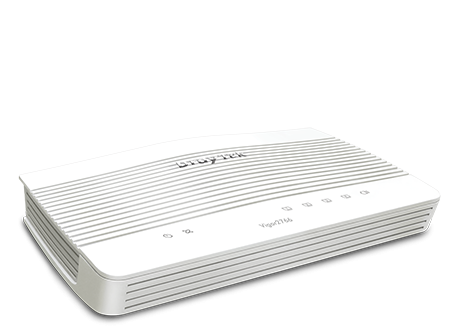

DrayTek Vigor 2766 ADSL or VDSL SoHo Router/Firewall | V2766-K

DrayTek Vigor 2766 ADSL or VDSL SoHo Router/Firewall | V2766-K

£168.95 GBP
£168.95 GBP £168.95 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek Vigor 2766 ADSL or VDSL Router/Firewall | V2766-K

Key Specifications

  • G.Fast (Ultrafast Fibre), VDSL2 (Superfast Fibre), ADSL and Ethernet Router with Failover
  • Up to 950Mbps Firewall Throughput for Ethernet WAN
  • 4 Gigabit LAN Ports
  • AC1300 - 11ac 'Wave 2' Dual Band Wireless
  • 4 LAN Subnets with VLANs (Port-based / 802.1q)
  • SPI Firewall and Content Filtering
  • Up to 200Mbps IPsec VPN Throughput
  • 2 Dial-Out LAN-to-LAN or Remote Teleworker VPN Tunnels
  • DrayTek SSL VPN and OpenVPN support
  • Optional VigorCare Available
  • Can be centrally Managed by VigorACS
  • SoHo Router firewall for G.FAST, VDSL or Ethernet WAN

Key Features & Benefits

G.Fast, VDSL and Ethernet Router

Connect the Vigor 2766 to Ultrafast G.Fast and Superfast VDSL2 FTTC with integrated DSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.

Benefits: Future Proof G.Fast Router. High speed DSL & Gigabit CPE with flexible application.

AC1300 Wireless with Mesh

Connect DrayTek VigorAP Access Points to the router in a wireless Mesh. DrayTek’s Self-Optimising Mesh ensures access points are always connecting through best path to your Router.

Benefits: Easily expand wireless coverage. Reduces the need for cable installation.

Packed With Features

Configure DrayTek’s rich feature set to fit your network with Route Policy, Quality of Service, VPN Matcher, DrayDDNS and more.

Benefits: Convenient and powerful DrayTek router features for hassle-free networking

Powerful SoHo VPN Router

Connect remote locations with 2 VPN tunnels for Remote Dial-In User Teleworker and Dial-Out LAN to LAN VPN. Up to 200Mbps IPsec performance, with SSL and OpenVPN support.

Benefits: Securely access resources remotely. Connect to VPN services for secure browsing.

4 Gigabit LAN Ports with VLANs

Attach Computers, Servers and Network Attached Storage. Use VLANs to provide a fully separated Guest network, with up to 4 LAN subnets.

Benefits: Improve quality of service for private and guest data traffic.

VigorACS Central Management

Use the VigorACS central management platform to manage, monitor and configure the Vigor 2766 series routers remotely across multiple locations.

Benefits: Save time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

The Ideal SoHo VPN Router for G.Fast, VDSL and Gigabit Fibre

The Vigor 2766 series is DrayTek’s G.Fast / VDSL and Ethernet router that is ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband.

Incorporating Wireless and VoIP features in ‘2766ac’ and ‘2766Vac’ models, the Vigor 2766 series provide a reliable, highly integrated and reliable network solution for SoHo environments.

DrayTek Vigor 2766 series

The Vigor 2766 series comes in several different models depending on the features required. Please double check when ordering that you have selected the correct product and a product intended for the correct region/network.

This model:

UK Product Code EAN Product Name Product Description
V2766-K 4710484743527 Vigor 2766 (UK/IE) Vigor 2766 wired G.Fast/DSL & Router

Other models in the Vigor 2766 router series:

UK Product Code EAN Product Name Product Description
V2766AC-K 4710484743794 Vigor 2766ac (UK/IE) Vigor 2766ac G.Fast/DSL & Router with Wi-Fi 5 AC1300 Wireless
V2766VAC-K 4710484743510 Vigor 2766Vac (UK/IE) Vigor 2766Vac G.Fast/DSL & Router with Wi-Fi 5 AC1300 Wireless and VoIP

The EAN is a barcode number which identifies the unique specific product type. It is separate to the product serial number which is unique to each product. The EAN will also appear on your product box when you receive it so you can double check that you have been sent the right product.

These product codes are for UK/Irish products only. Please check with your local DrayTek office for the correct part nos. for your region if you are not in the UK/IE to ensure that you get the correct hardware and local support/warranty.

Technical Specification (UK Hardware Spec.)

Physical Interfaces

  • WAN1: G.Fast / VDSL2 / VDSL2 35b / ADSL2+, RJ-11
  • WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
  • WAN3: USB 2.0 Port for 3G/4G Modem (not included)
  • LAN Ports: 4x Gigabit Ethernet (1G/100M/10M), RJ-45 (3x with WAN2 enabled)
  • 2x USB 2.0 Port for USB storage, thermometer or Printer
  • Recessed Factory Reset button

Performance

  • Router Performance:
    • 1.3Gb/s Max Sync Rate with G.Fast (dependant on ISP & Exchange equipment)
    • 100 Mb/s Max Sync Rate with VDSL2
    • 300 Mb/s Max Sync Rate with VDSL2 35b
    • 950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
    • 700 Mb/s NAT Throughput per WAN without Hardware Acceleration
    • 50,000 NAT Sessions
  • VPN Performance:
    • 200 Mb/s IPsec (AES256) VPN Throughput
    • 80 Mb/s SSL VPN Throughput
    • Max. 2 Concurrent VPN Tunnels

Internet Connection

  • Hardware Acceleration
  • 802.1p/q Multi-VLAN Tagging
  • Multi-VLAN/PVC
  • Connection Detection: PPP, ARP Detect, Ping Detect
  • WAN Data Budget
  • Dynamic DNS
  • DrayDDNS – with automated LetsEncrypt Certificates
  • Full Feature-set Hardware Acceleration:
    • Hardware Accelerated Quality of Service
    • Multi-WAN Data Budget
    • Traffic Graph & Data Flow Monitor
    • Bandwidth Limit
  • IPv4 Connection Types:  PPPoE / PPPoA, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN)
  • IPv6 Connection Types:
    • DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
    • USB 4G/LTE Modem: TSPC, AICCU

G.Fast, VDSL & ADSL Features

  • BT Infinity Option 1 & Option 2 Compatible
  • Compliant with Openreach SIN 527 & SIN 498
  • Auto Detection of G.Fast, VDSL and ADSL line modes
  • Support for G.INP & Vectoring
  • G.Fast Standards:
    • ITU-T G.9700, G.9701 G.Fast
    • Profile: 212MHz & 106MHz

    VDSL Standards:

    • ITU-T G.993.1 VDSL
    • ITU-T G.993.2, G.997.1 VDSL2
    • Band Plan: G.998, G.997
    • Annex A, Annex B, Annex C
    • VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
    • OLR, UPBO, DPBO Supported
    • US0 Supported
    • Loop Diagnostic Mode
    • DSL Forum WT-114
  • ADSL Standards:
    • ANSI T1.413 Issue2
    • ITU-T G.992.1 G.dmt (ADSL)
    • ITU-T G.992.2 G.lite
    • ITU-T G.992.3 ADSL2
    • ITU-T G.992.5 ADSL2+
  • ATM Protocols:
    • RFC-2684/RFC-1483 Multiple Protocol over AAL5
    • RFC-2516 PPP over Ethernet
    • RFC-2364 PPP over AAL5
    • Support for RFC4638 for MTU up to 1500

Firewall & Content Filtering

  • IP-based Firewall Policy
  • User-based Time Quota
  • DoS Attack Defence
  • Spoofing Defence
  • Content Filtering:
    • Application Content Filter
    • URL Content Filter
    • DNS Keyword Filter
    • Web Features
    • Web Category Filter (requires GlobalView subscription)

NAT Features

  • NAT Port Redirection
  • Open Ports
  • Port Triggering
  • DMZ Host
  • UPnP
  • ALG (Application Layer Gateway):  SIP, RTSP, FTP, H.323
  • VPN Pass-Through:  PPTP, L2TP, IPsec

LAN Management

  • 802.1q Tag-based, Port-based VLAN
  • Up to 4 LAN Subnets
  • Up to 8 VLANs
  • DHCP Server:
    • Multiple IP Subnet
    • Custom DHCP Options
    • Bind-IP-to-MAC
    • DHCP Pool Count up to 253 addresses per subnet
  • Wired 802.1x Port Authentication
  • Port Mirroring
  • Local DNS Server
  • Conditional DNS Forwarding

Networking Features

  • Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
  • DNS Security (DNSSEC)
  • Local RADIUS server
  • SMB File Sharing (Requires external USB storage)
  • Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
  • Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q)
  • Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing

VPN Features

  • 2 Concurrent active VPN Tunnels
  • LAN-to-LAN - Dial-Out VPN Client
  • Teleworker-to-LAN – Dial-In VPN Server
  • User Authentication: Local, mOTP
  • IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
  • Encryption: MPPE, DES, 3DES, AES (128/192/256)
  • Authentication: SHA-256, SHA-1
  • Dead Peer Detection (DPD)
  • IPsec NAT-Traversal (NAT-T)
  • Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
  • DHCP over IPsec
  • DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
  • VPN Protocols:
    • IPsec IKEv1, IKEv2, IKEv2 EAP
    • IPsec-XAuth
    • DrayTek SSL VPN
    • OpenVPN
    • PPTP for legacy applications
    • L2TP, L2TP over IPsec

Bandwidth Management

  • IP-based Bandwidth Limit
  • IP-based Session Limit

Quality of Service (QoS)

  • Classify via TOS, DSCP, 802.1p, IP Address, Service Type
  • 4 Priority Queues
  • App QoS
  • VoIP Prioritization
  • Class-based Outbound Traffic Tagging: DSCP & IP Precedence

Management

  • Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
  • Config File Export & Import
  • Import Config from Vigor 2762, 2765
  • Auto Backup Config to USB Storage – New!
  • Firmware Upgrade via TFTP, HTTP, TR-069
  • 2-Level Administration Privilege
  • Access Control Features: Access List, Brute Force Protection
  • Syslog
  • SMS, E-mail Notification Alert
  • SNMP: v1, v2c, v3
  • Managed by VigorACS

Router Central Management Features

  • AP Management: 2 VigorAP access points

Operating Requirements

  • Wall or Shelf Mountable
  • Temperature Operating: 0 °C ~ 45 °C
  • Storage: -25 °C ~ 70 °C
  • Humidity 10% ~ 90% (non-condensing)
  • Power Consumption: 18 Watts maximum
  • Operating Power: DC 12V (via external PSU, supplied)
  • Power Requirements : 220-240VAC
  • Dimensions:
    • 207mm Width
    • 131mm Depth
    • 39mm Height

Warranty

  • Two (2) Years RTB
  • Optional VigorCare Enhanced Warranty Available
    • VigorCare A3 3 Year Subscription: VCARE-A3
    • VigorCare A5 5 Year Subscription: VCARE-A5

Box Contents

  • Vigor 2766 router
  • Quick Start Guide
  • Screws & wall plugs for wall mounting
  • 2m Cat-5e RJ-45 Network Cable
  • 2x Detachable Wireless LAN Antennas (‘ac’ models)
  • DC 12V Power Supply with UK Plug
