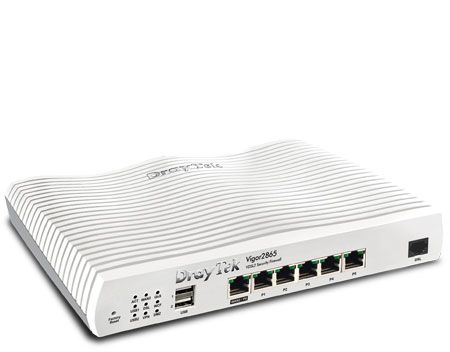

DrayTek Vigor 2865 ADSL or VDSL Router/Firewall | V2865-K
DrayTek Vigor 2865 ADSL or VDSL Router/Firewall | V2865-K
Couldn't load pickup availability
DrayTek Vigor 2865 ADSL or VDSL Router/Firewall | V2865-K
Key Specifications
- VDSL2 (Superfast Fibre) and Gigabit Ethernet WAN Router
- Multi-WAN Gigabit Performance Router with Load-Balancing & Failover
- Up to 950Mbps Firewall Throughput for Ethernet WAN
- 5+1 Gigabit RJ-45 LAN Ports
- Up to 800Mbps VPN Throughput with IPsec acceleration
- 32 LAN-to-LAN & Remote Teleworker VPN Tunnels
- 16 DrayTek SSL VPN or OpenVPN Tunnels
- 8 LAN Subnets with VLANs (Port-based / 802.1q)
- SPI Firewall and Content Filtering
- Optional VigorCare Available
- Can be centrally Managed by VigorACS
Key Features & Benefits
VDSL and Ethernet Load Balancer
Connect the Vigor 2865 to Superfast Fibre with the integrated VDSL modem. Use the Ethernet WAN with Cable and Ultrafast FTTP. Load Balance multiple connections to boost performance.
Benefits: Fully utilise Fibre Broadband. High performance DSL & Gigabit CPE with flexible application.
Dual-SIM 4G+ LTE Modem
Ensure ultra-reliable connectivity with integrated high-performance 4G+/LTE Category 6 modem on ‘L’ models. Handle Mobile network outages with Dual-SIM Failover.
Benefits: Fast and Convenient Mobile Broadband. Provide constant connectivity.
Packed With Features
Take advantage of DrayTek’s rich feature set and useful functionality such as Quality of Service, Route Policy, Hotspot Web Portal, VPN Matcher, DrayDDNS and more.
Benefits: Advanced DrayTek router functionality solves many complex networking issues.
Robust SMB VPN Router
Quickly and securely connect remote sites with up to 32 VPN tunnels. Enable remote workers to access resources with DrayTek SSL VPN and OpenVPN support.
Benefits: Securely encrypt network access for remote workers and working from home.
5+1 Gigabit LAN Ports with VLANs
Link Server, Computers, and Network Attached Storage directly, with up to 6 Gigabit LAN ports. VLANs allow for as many as 8 separate networks, with options for Hotspot Captive Portal.
Benefits: Improve quality of service for private and guest data traffic. Connect more devices.
VigorACS Central Management
The Vigor 2865 can be fully managed and configured remotely with the VigorACS central management platform. Manage DrayTek networks spanning multiple sites.
Benefits: Save time and money. Provision, manage and monitor remote sites easily, without on-site IT or dedicated staff.
The Ideal DSL Router with VPN for Small Business and Remote Working
DrayTek’s Vigor 2865 series Multi-WAN Firewall VPN routers are ideal for Superfast VDSL Broadband and Ethernet-based FTTP Fibre Broadband. With Gigabit throughput, Quality of Service, VPN client/server, comprehensive Firewall and Content Filtering controls.
Wi-Fi is available on ‘ac’ models and the integrated 4G+ LTE modem on ‘Lac’ models takes full advantage of mobile broadband. The Vigor 2865 series provides a reliable, flexible, and secure networking solution, that’s ideal for Home Offices, Small Business and Satellite Offices.
The Vigor 2865 series comes in several different models depending on the features required. Please double check when ordering that you have selected the correct product and a product intended for the correct region/network.
This model:
| UK Product Code | EAN | Product Name | Product Description |
|---|---|---|---|
| V2865-K | 4710484741257 | Vigor 2865 (UK/IE) | Vigor 2865 wired VDSL router |
Other models in the Vigor 2865 router series:
| UK Product Code | EAN | Product Name | Product Description |
|---|---|---|---|
| V2865AC-K | 4710484741240 | Vigor 2865ac (UK/IE) | Vigor 2865ac AC1300 wireless VDSL router |
| V2865LAC-K | 4710484741233 | Vigor 2865Lac (UK/IE) | Vigor 2865Lac AC1300 wireless VDSL router with 4G/LTE modem |
| V2865VAC-K | 4710484743206 | Vigor 2865Vac (UK/IE) | Vigor 2865Vac AC1300 wireless VDSL router with VoIP |
The EAN is a barcode number which identifies the unique specific product type. It is separate to the product serial number which is unique to each product. The EAN will also appear on your product box when you receive it so you can double check that you have been sent the right product.
These product codes are for UK/Irish products only. Please check with your local DrayTek office for the correct part nos. for your region if you are not in the UK/IE to ensure that you get the correct hardware and local support/warranty.
Technical Specification (UK Hardware Spec.)Physical Interfaces
- WAN1: VDSL2 / VDSL2 35b / ADSL2+, RJ-11
- WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
- LAN Ports: 5x Gigabit Ethernet (1G/100M/10M), RJ-45
- 2x USB 2.0 Ports for 3G/4G Modem, thermometer or Printer
- Recessed Factory Reset button
Performance
-
NAT Performance:
- 100 Mb/s Max Sync Rate with VDSL2
- 300 Mb/s Max Sync Rate with VDSL2 35b
- 950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
- 1.3Gb/s Total Mult-WAN NAT Throughput
- 800 Mb/s NAT Throughput per WAN without Hardware Acceleration
- 60,000 NAT Sessions
- 8000 Hardware Accelerated NAT Sessions
-
VPN Performance:
- 300 Mb/s IPsec (AES256) VPN Performance
- 800 Mb/s Hardware Accelerated IPsec VPN Performance - New!
- 130 Mb/s SSL VPN Performance
- Max. 32 Concurrent VPN Tunnels
- Max. 16 Concurrent SSL VPN / OpenVPN Tunnels
WAN Interfaces
- WAN1: VDSL2 / VDSL2 35b / ADSL2+
- WAN2: Gigabit Ethernet
- WAN5: 4G/LTE USB Modem (not included, see supported 4G/LTE modem list)
- WAN6: 4G/LTE USB Modem (not included)
Internet Connection
- Load Balancing: IP-based, Session-based
- Hardware Acceleration
- 802.1p/q Multi-VLAN Tagging
- Multi-VLAN/PVC
- 2.4GHz & 5GHz Simultaneous Wireless WAN (with ‘ac’ models)
- WAN Active on Demand: Link Failure, Traffic Threshold
- Connection Detection: PPP, ARP Detect, Ping Detect
- WAN Data Budget
- Dynamic DNS
- DrayDDNS – with automated LetsEncrypt Certificates
-
Full Feature-set Hardware Acceleration:
- Hardware Accelerated Quality of Service
- Multi-WAN Data Budget
- Traffic Graph & Data Flow Monitor
- Bandwidth Limit
- IPv4 Connection Types: PPPoA, PPPoE, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN only)
-
IPv6 Connection Types:
- Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
- 4G/LTE Modem & USB 4G/LTE Modem: TSPC, AICCU
VDSL & ADSL Features
- BT Infinity Option 1 & Option 2 Compatible
- Compliant with Openreach SIN 498
- Auto Detection of VDSL and ADSL line modes
- Support for G.INP & Vectoring
-
VDSL Standards:
- ITU-T G.993.1 VDSL
- ITU-T G.993.2, G.997.1 VDSL2
- Band Plan: G.998, G.997
- Annex A, Annex B, Annex C
- VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
- OLR, UPBO, DPBO Supported
- US0 Supported
- Loop Diagnostic Mode
- DSL Forum WT-114
-
ADSL Standards:
- ANSI T1.413 Issue2
- ITU-T G.992.1 G.dmt (ADSL)
- ITU-T G.992.2 G.lite
- ITU-T G.992.3 ADSL2
- ITU-T G.992.5 ADSL2+
-
ATM Protocols:
- RFC-2684/RFC-1483 Multiple Protocol over AAL5
- RFC-2516 PPP over Ethernet
- RFC-2364 PPP over AAL5
- Support for RFC4638 for MTU up to 1500
Firewall & Content Filtering
- IP-based or User-based Firewall Policy
- User-based Time Quota
- DoS Attack Defence
- Spoofing Defence
-
Content Filtering:
- Application Content Filter
- URL Content Filter
- DNS Keyword Filter
- Web Features
- Web Category Filter (requires GlobalView subscription)
NAT Features
- NAT Port Redirection
- Open Ports
- Port Triggering
- DMZ Host
- UPnP
- ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
- VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management
- 802.1q Tag-based, Port-based VLAN
- Up to 8 LAN Subnets (NAT or Routing mode selectable per LAN interface)
- Up to 16 VLANs
- DMZ Port
-
DHCP Server:
- Multiple IP Subnet
- Custom DHCP Options
- Bind-IP-to-MAC
- DHCP Pool Count up to 1022 addresses for LANs 1-3
- DHCP Pool Count up to 253 addresses for LANs 4-8
- DHCP Relay per LAN
- LAN IP Alias
- Wired 802.1x Port Authentication
- Port Mirroring
- Local DNS Server
- Conditional DNS Forwarding
- Hotspot Web Portal
- Hotspot Authentication: Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking Features
- Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
- High Availability: Active-Standby, Hot-Standby
- DNS Security (DNSSEC)
- Local RADIUS server
- SMB File Sharing (Requires external storage)
- Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
- Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, BGP
VPN
- Up to 32 active VPN tunnels - including up to 16 SSL VPN or OpenVPN Tunnels
- Up to 16 Hardware Accelerated 800Mb/s IPsec tunnels – New! (requires f/w 4.2.1)
- LAN-to-LAN - Dial-In VPN Server & Dial-Out VPN Client
- Teleworker-to-LAN – Dial-In VPN Server
- User Authentication: Local, RADIUS, LDAP, TACACS+, mOTP
- IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
- Encryption: MPPE, DES, 3DES, AES (128/192/256)
- Authentication: SHA-256, SHA-1
- VPN Trunk (Redundancy): Load Balancing, Failover
- Dead Peer Detection (DPD)
- IPsec NAT-Traversal (NAT-T)
- Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
- DHCP over IPsec
- DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
-
VPN Protocols:
- IPsec IKEv1, IKEv2, IKEv2 EAP
- IPsec-XAuth
- DrayTek SSL VPN
- OpenVPN (Remote Dial-In User only)
- GRE over IPsec
- PPTP
- L2TP, L2TP over IPsec
Bandwidth Management
- IP-based Bandwidth Limit
- IP-based Session Limit
- User-based Data Quota
Quality of Service (QoS)
- Classify via TOS, DSCP, 802.1p, IP Address, Service Type
- 4 Priority Queues
- App QoS
- VoIP Prioritization
- Class-based Outbound Traffic Tagging: DSCP & IP Precedence
Management
- Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
- Config File Export & Import
- Import Config from Vigor 2862
- Auto Backup Config to USB Storage – New!
- Firmware Upgrade via TFTP, HTTP, TR-069
- 2-Level Administration Privilege
- Access Control Features: Access List, Brute Force Protection
- Syslog
- SMS, E-mail Notification Alert
- SNMP: v1, v2c, v3
- Managed by VigorACS
Router Central Management Features
- AP Management: Up to 20 VigorAP access points
- Switch Management: Up to 10 VigorSwitch network switches
- VPN Management: Up to 8 Vigor routers
Operating Requirements
- Rack Mountable (Optional Vigor RM1 mounting bracket required)
- Wall or Shelf Mountable with included fittings
- Temperature Operating: 0 °C ~ 45 °C
- Storage: -25 °C ~ 70 °C
- Humidity 10% ~ 90% (non-condensing)
- Power Consumption: 24 watts maximum ('ac' model)
- Operating Power: DC 12V (via external PSU, supplied)
- Power Requirements : 220-240VAC
- Weight: 620g ('ac' model)
-
Dimensions:
- 241mm Width
- 165mm Depth
- 44mm Height
Warranty
- Two (2) Year Manufacturer's RTB
- Optional VigorCare Enhanced Warranty Available
Box Contents
- Vigor 2865 router
- Quick Start Guide
- Screws & wall plugs for wall mounting
- 2m Cat-5e RJ-45 Network Cable
- DC 12V Power Supply with UK Plug
