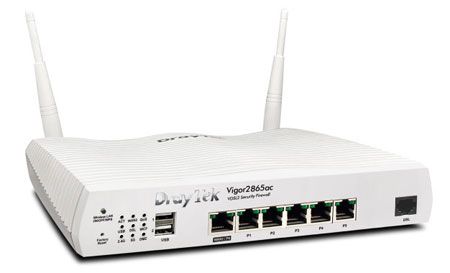

DrayTek Vigor 2865ac ADSL or VDSL Router/Firewall | V2865AC-K
Key Specifications
- VDSL2 (Superfast Fibre) or Gigabit Ethernet WAN Router with Failover
- Up to 950Mbps Firewall Throughput for Ethernet WAN
- 4 Gigabit LAN Ports
- AC1300 - 11ac 'Wave 2' Dual Band Wireless (‘ac’ models)
- 2 PSTN Telephone (FXS) VoIP SIP ATA ports (‘Vac’ model)
- 2 LAN Subnets with VLANs (Port-based / 802.1q)
- SPI Firewall and Content Filtering
- Up to 200Mbps IPsec VPN Throughput
- 2 Dial-Out LAN-to-LAN or Remote Teleworker VPN Tunnels
- DrayTek SSL VPN and OpenVPN support
- Optional VigorCare Available
- Can be centrally Managed by VigorACS
Key Features & Benefits
VDSL and Ethernet Load Balancer
Connect the Vigor 2865 to Superfast Fibre with the integrated VDSL modem. Use the Ethernet WAN with Cable and Ultrafast FTTP. Load Balance multiple connections to boost performance.
Benefits: Fully utilise Fibre Broadband. High performance DSL & Gigabit CPE with flexible application.
Dual-SIM 4G+ LTE Modem
Ensure ultra-reliable connectivity with integrated high-performance 4G+/LTE Category 6 modem on ‘L’ models. Handle Mobile network outages with Dual-SIM Failover.
Benefits: Fast and Convenient Mobile Broadband. Provide constant connectivity.
Packed With Features
Take advantage of DrayTek’s rich feature set and useful functionality such as Quality of Service, Route Policy, Hotspot Web Portal, VPN Matcher, DrayDDNS and more.
Benefits: Advanced DrayTek router functionality solves many complex networking issues.
Robust SMB VPN Router
Quickly and securely connect remote sites with up to 32 VPN tunnels. Enable remote workers to access resources with DrayTek SSL VPN and OpenVPN support.
Benefits: Securely encrypt network access for remote workers and working from home.
5+1 Gigabit LAN Ports with VLANs
Link Server, Computers, and Network Attached Storage directly, with up to 6 Gigabit LAN ports. VLANs allow for as many as 8 separate networks, with options for Hotspot Captive Portal.
Benefits: Improve quality of service for private and guest data traffic. Connect more devices.
VigorACS Central Management
The Vigor 2865 can be fully managed and configured remotely with the VigorACS central management platform. Manage DrayTek networks spanning multiple sites.
Benefits: Save time and money. Provision, manage and monitor remote sites easily, without on-site IT or dedicated staff.
The Ideal DSL Router with VPN for Small Business and Remote Working
DrayTek’s Vigor 2865 series Multi-WAN Firewall VPN routers are ideal for Superfast VDSL Broadband and Ethernet-based FTTP Fibre Broadband. With Gigabit throughput, Quality of Service, VPN client/server, comprehensive Firewall and Content Filtering controls.
Wi-Fi is available on ‘ac’ models and the integrated 4G+ LTE modem on ‘Lac’ models takes full advantage of mobile broadband. The Vigor 2865 series provides a reliable, flexible, and secure networking solution, that’s ideal for Home Offices, Small Business and Satellite Offices.
| UK Product Code | EAN | Product Name | Product Description |
|---|---|---|---|
| V2765-K | 4710484741264 | Vigor 2765 (UK/IE) | Vigor 2765 wired VDSL and Ethernet Router |
| V2765AC-K | 4712909129633 | Vigor 2765ac (UK/IE) | Vigor 2765ac VDSL and Ethernet Router with Wi-Fi 5 AC1300 Wireless |
| V2765VAC-K | 4710484743008 | Vigor 2765Vac (UK/IE) | Vigor 2765Vac VDSL and Ethernet Router with Wi-Fi 5 AC1300 Wireless and VoIP |
Technical Specification (UK Hardware Spec.)
Physical Interfaces
- WAN1: VDSL2 / VDSL2 35b / ADSL2+, RJ-11
- WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
- WAN3: USB 2.0 Port for 3G/4G Modem (not included)
- LAN Ports: 4x Gigabit Ethernet (1G/100M/10M), RJ-45 (3x with WAN2 enabled)
- 2x PSTN RJ-11 Telephone Ports (‘Vac’ model)
- 2x USB 2.0 Port for USB storage, thermometer or Printer
- 2x Removable Wireless antennas (wireless models)
- Wireless On / Off / WPS button
- Recessed Factory Reset button
Performance
-
Router Performance:
- 100 Mb/s Max Sync Rate with VDSL2
- 300 Mb/s Max Sync Rate with VDSL2 35b
- 950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
- 700 Mb/s NAT Throughput per WAN without Hardware Acceleration
- 50,000 NAT Sessions
-
VPN Performance:
- 200 Mb/s IPsec (AES256) VPN Throughput
- 80 Mb/s SSL VPN Throughput
- Max. 2 Concurrent VPN Tunnels
Internet Connection
- Hardware Acceleration
- 802.1p/q Multi-VLAN Tagging
- Multi-VLAN/PVC
- Connection Detection: PPP, ARP Detect, Ping Detect
- WAN Data Budget
- Dynamic DNS
- DrayDDNS – with automated LetsEncrypt Certificates
-
Full Feature-set Hardware Acceleration (requires f/w 4.3.0):
- Hardware Accelerated Quality of Service
- Multi-WAN Data Budget
- Traffic Graph & Data Flow Monitor
- Bandwidth Limit
- IPv4 Connection Types: PPPoE / PPPoA, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN)
-
IPv6 Connection Types:
- DSL & Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
- USB 4G/LTE Modem: TSPC, AICCU
VDSL & ADSL Features
- BT Infinity Option 1 & Option 2 Compatible
- Compliant with Openreach SIN 498
- Auto Detection of VDSL and ADSL line modes
- Support for G.INP & Vectoring
-
VDSL Standards:
- ITU-T G.993.1 VDSL
- ITU-T G.993.2, G.997.1 VDSL2
- Band Plan: G.998, G.997
- Annex A, Annex B, Annex C
- VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
- OLR, UPBO, DPBO Supported
- US0 Supported
- Loop Diagnostic Mode
- DSL Forum WT-114
-
ADSL Standards:
- ANSI T1.413 Issue2
- ITU-T G.992.1 G.dmt (ADSL)
- ITU-T G.992.2 G.lite
- ITU-T G.992.3 ADSL2
- ITU-T G.992.5 ADSL2+
-
ATM Protocols:
- RFC-2684/RFC-1483 Multiple Protocol over AAL5
- RFC-2516 PPP over Ethernet
- RFC-2364 PPP over AAL5
- Support for RFC4638 for MTU up to 1500
Wireless Features (‘ac’ models)
-
AC1300 - 11ac 'Wave 2' Dual Band Wireless (‘ac’ models):
- 802.11ac 2x2 wireless access point
- Compatible with 802.11a/b/g/n wireless
- Dual-band (2.4/5Ghz) simultaneous wireless
- Up to 866Mbps PHY rate at 80MHz with 5GHz
- Up to 400Mbps PHY rate at 40MHz with 2.4GHz (256-QAM)
- Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80MHz for 5GHz
- MU-MIMO
- Tx Beamforming
- Mesh Root support with DrayTek VigorAP Mesh Nodes – New! (requires f/w 4.3.0, available in Q1 2021)
- Up to 4 SSIDs per radio band
- Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
- Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
- Bandwidth Management (Per Station / Per SSID)
- WMM (Wireless MultiMedia)
- WPS - WiFi Protected Setup
- Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
- EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
-
Wireless Security:
- WPA2
- WPA3 – New! (requires f/w 4.3.0)
- Pre-Shared Key authentication
- WEP/WPA for Legacy Clients
- Access Control – Blacklist / Whitelist client MAC addresses per SSID
Firewall & Content Filtering
- IP-based Firewall Policy
- User-based Time Quota
- DoS Attack Defence
- Spoofing Defence
-
Content Filtering:
- Application Content Filter
- URL Content Filter
- DNS Keyword Filter
- Web Features
- Web Category Filter (requires GlobalView subscription)
NAT Features
- NAT Port Redirection
- Open Ports
- Port Triggering
- DMZ Host
- UPnP
- ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
- VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management
- 802.1q Tag-based, Port-based VLAN
- Up to 2 LAN Subnets
- Up to 8 VLANs
-
DHCP Server:
- Multiple IP Subnet
- Custom DHCP Options
- Bind-IP-to-MAC
- DHCP Pool Count up to 253 addresses per subnet
- Wired 802.1x Port Authentication
- Port Mirroring
- Local DNS Server
- Conditional DNS Forwarding
Networking Features
- Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country - New!
- DNS Security (DNSSEC)
- Local RADIUS server
- SMB File Sharing (Requires external USB storage)
- Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
- Compatible with IPTV and ISP Video on Demand services (YouView, Sky Q)
- Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing
VPN Features
- 2 Concurrent active VPN Tunnels
- LAN-to-LAN - Dial-Out VPN Client
- Teleworker-to-LAN – Dial-In VPN Server
- User Authentication: Local, mOTP
- IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
- Encryption: MPPE, DES, 3DES, AES (128/192/256)
- Authentication: SHA-256, SHA-1
- Dead Peer Detection (DPD)
- IPsec NAT-Traversal (NAT-T)
- Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
- DHCP over IPsec
- DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
-
VPN Protocols:
- IPsec IKEv1, IKEv2, IKEv2 EAP
- IPsec-XAuth
- DrayTek SSL VPN
- OpenVPN
- PPTP for legacy applications
- L2TP, L2TP over IPsec
Bandwidth Management
- IP-based Bandwidth Limit
- IP-based Session Limit
Quality of Service (QoS)
- Classify via TOS, DSCP, 802.1p, IP Address, Service Type
- 4 Priority Queues
- App QoS
- VoIP Prioritization
- Class-based Outbound Traffic Tagging: DSCP & IP Precedence
VoIP Features (‘Vac’ model)
- 2x RJ-11 PSTN Telephone Ports (FXS)
- Integrated VoIP SIP ATA (Analogue Telephone Adapter)
- 6 SIP Accounts with VoIP Setup Wizard
- Protocols: SIP, RTP / RTCP
- G.168 Line Echo-cancellation
- Dial Plan: Phone Book, Digit Map, Call Barring
- Voice Codecs: G.711 A / Law, G.723.1, G.726, G.729 A / B, VAD / CNG
- Tone Generation: DTMF, Dial, Busy, Ring Back, Call Progress
- DTMF Transmission: In Band, Out Band (RFC-2833), SIP info
- FAX / Modem Support with G.711 Pass-through and T.38
- Supplemental Services: Caller ID, Call Hold/Retrieve, Waiting, Transfer, Forwarding, Barring
- DND (Do not Disturb)
- MWI (Message Waiting Indicator) (RFC-3842)
- Hotline (Dial preset number when handset lifted)
Management
- Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
- Config File Export & Import
- Import Config from Vigor 2760, 2762
- Auto Backup Config to USB Storage – New!
- Firmware Upgrade via TFTP, HTTP, TR-069
- 2-Level Administration Privilege
- Access Control Features: Access List, Brute Force Protection
- Syslog
- SMS, E-mail Notification Alert
- SNMP: v1, v2c, v3
- Managed by VigorACS
Router Central Management Features
- AP Management: 2 VigorAP access points
- Switch Management: 2 VigorSwitch network switches
- DrayTek Mesh: Up to 7 VigorAP access points – New! (requires f/w 4.3.0, available in Q1 2021)
Operating Requirements
- Wall or Shelf Mountable
- Temperature Operating: 0 °C ~ 45 °C
- Storage: -25 °C ~ 70 °C
- Humidity 10% ~ 90% (non-condensing)
- Power Consumption: 21.8 Watts maximum (Vac model)
- Operating Power: DC 12V (via external PSU, supplied)
- Power Requirements : 220-240VAC
- Dimensions:
- 207mm Width
- 131mm Depth
- 42mm Height
Warranty : Two (2) Years RTB
Box Contents
- Vigor 2765 series router
- Quick Start Guide
- Screws & wall plugs for wall mounting
- 2m Cat-5e RJ-45 Network Cable
- 2x Detachable Wireless LAN Antennas (‘ac’ models)
- DC 12V Power Supply with UK Plug
