DrayTek Vigor 2866ax ADSL or VDSL Router/Firewall | V2866AX-K
DrayTek Vigor 2866ax ADSL or VDSL Router/Firewall | V2866AX-K
Couldn't load pickup availability

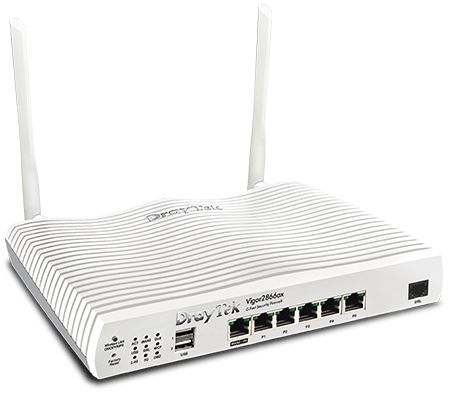

DrayTek Vigor 2866ax ADSL or VDSL Router/Firewall | V2866AX-K
Key Specifications
- G.fast (Ultrafast Fibre), VDSL2 (Superfast Fibre), ADSL and Ethernet Router
- Multi-WAN Gigabit Performance Router with Load-Balancing & Failover
- Up to 950Mbps Firewall Throughput for Ethernet WAN
- 5+1 Gigabit RJ-45 LAN Ports
- Up to 800Mbps VPN Throughput with IPsec acceleration
- 32 LAN-to-LAN & Remote Teleworker VPN Tunnels
- 16 DrayTek SSL VPN or OpenVPN Tunnels
- AX3000 – Wi-Fi 6 Dual Band Wireless
- 8 LAN Subnets with VLANs (Port-based / 802.1q)
- SPI Firewall and Content Filtering
- Optional VigorCare Available
- Can be centrally Managed by VigorACS
Key Features & Benefits
G.Fast and Ethernet Load Balancer
Connect the Vigor 2866 to Ultrafast G.fast and Superfast VDSL2 FTTC with integrated DSL modem. Load Balance with Ethernet WAN and more for greater resiliency and higher throughput.
Benefits: Future Proof DSL Router. High speed DSL & Gigabit CPE with flexible application.
Wi-Fi 6 - AX3000 Performance
Wi-Fi 6 wireless provides gigabit Wi-Fi with reliable throughput. Ideal for time-sensitive video conferencing, low latency gaming and handling 4K Ultra-HD streaming, without buffering.
Benefits: Improve wireless performance. Built with the latest technologies.
Packed With Features
Take advantage of DrayTek’s rich feature set and useful functionality such as Quality of Service, Route Policy, VPN Matcher, DrayDDNS and more.
Benefits: Advanced DrayTek router functionality solves many complex networking issues.
Robust SMB VPN Router
Quickly and securely connect remote sites with up to 32 VPN tunnels. Enable remote workers to access resources with DrayTek SSL VPN and OpenVPN support.
Benefits: Securely encrypt network access for remote workers and working from home.
5+1 Gigabit LAN Ports with VLANs
Link Server, Computers, and Network Attached Storage directly, with up to 6 Gigabit LAN ports. VLANs allow for as many as 8 separate networks, with options for Hotspot Captive Portal.
Benefits: Improve quality of service for private and guest data traffic. Connect more devices.
VigorACS SD-WAN Central Management
Manage the Vigor 2866 remotely and utilise DrayTek’s powerful SD-WAN features with the VigorACS 3 management platform. Centrally manage & provision whole networks across multiple sites.
Benefits: Save time and money. Provision, manage and monitor remote sites easily, without on-site IT or dedicated staff.
G.Fast VPN Router for Small Business and Remote Working
The Vigor 2866 series is DrayTek’s G.Fast / VDSL and Ethernet Multi-WAN Firewall VPN router. Ideally suited to connect directly to Ultrafast G.Fast broadband and Superfast VDSL. Providing advanced Firewall and Content Filtering, Quality of Service and VPN with Gigabit throughput.
Options for Wi-Fi 6 on ‘ax’ models, or Wi-Fi 5 ‘ac’ models provide fast & efficient wireless connectivity, while the integrated 4G+ LTE modem on ‘Lac’ models takes full advantage of mobile broadband. The Vigor 2866 series provides a reliable, flexible, and secure networking solution, that’s ideal for Home Offices, Small Business and Satellite Offices.
The Vigor 2866 series comes in several different models depending on the features required. Please double check when ordering that you have selected the correct product and a product intended for the correct region/network.
This model:
| UK Product Code | EAN | Product Name | Product Description |
|---|---|---|---|
| V2866AX-K | 4710484743565 | Vigor 2866ax (UK/IE) | Vigor 2866ax G.fast/DSL & Ethernet router with Wi-Fi 6 AX3000 wireless |
Other models in the Vigor 2866 router series:
| UK Product Code | EAN | Product Name | Product Description |
|---|---|---|---|
| V2866-K | 4712909128308 | Vigor 2866 (UK/IE) | Vigor 2866 wired G.fast/DSL & Ethernet router |
| V2866AC-K | 4710484743244 | Vigor 2866ac (UK/IE) | Vigor 2866ac G.fast/DSL & Ethernet router with AC1300 wireless |
| V2866LAC-K | 4710484740434 | Vigor 2866Lac (UK/IE) | Vigor 2866Lac G.fast/DSL & Ethernet router with AC1300 wireless and integrated 4G/LTE modem |
The EAN is a barcode number which identifies the unique specific product type. It is separate to the product serial number which is unique to each product. The EAN will also appear on your product box when you receive it so you can double check that you have been sent the right product.
These product codes are for UK/Irish products only. Please check with your local DrayTek office for the correct part nos. for your region if you are not in the UK/IE to ensure that you get the correct hardware and local support/warranty.
Technical Specification (UK Hardware Spec.)
Physical Interfaces
- WAN1: G.fast / VDSL2 / VDSL2 35b / ADSL2+, RJ-11
- WAN2/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
- LAN Ports: 5x Gigabit Ethernet (1G/100M/10M), RJ-45
- 2x USB 2.0 Ports for 3G/4G Modem, thermometer or Printer
- 2x Removable Wireless antennas
- Wireless On / Off / WPS button
- Recessed Factory Reset button
Performance
-
NAT Performance:
- 1.3Gb/s Max Sync Rate with G.fast (dependant on ISP & Exchange equipment)
- 300 Mb/s Max Sync Rate with VDSL2 35b
- 950 Mb/s NAT Throughput for Ethernet WAN with Hardware Acceleration
- 1.3Gb/s Total Multi-WAN NAT Throughput
- 800 Mb/s NAT Throughput per WAN without Hardware Acceleration
- 60,000 NAT Sessions
- 8000 Hardware Accelerated NAT Sessions
-
VPN Performance:
- 300 Mb/s IPsec (AES256) VPN Performance
- 800 Mb/s Hardware Accelerated IPsec VPN Performance - New!
- 130 Mb/s SSL VPN Performance
- Max. 32 Concurrent VPN Tunnels
- Max. 16 Concurrent SSL VPN / OpenVPN Tunnels
WAN Interfaces
- WAN1: G.fast / VDSL2 / VDSL2 35b / ADSL2+
- WAN2: Gigabit Ethernet
- WAN3: 2.4GHz Wireless WAN - Not supported on AX variant
- WAN4: 5GHz Wireless WAN - Not supported on AX variant
- WAN5: 4G/LTE USB Modem (not included, see supported 4G/LTE modem list)
- WAN6: 4G/LTE USB Modem (not included)
Internet Connection
- Load Balancing: IP-based, Session-based
- Hardware Acceleration
- 802.1p/q Multi-VLAN Tagging
- Multi-VLAN/PVC
- WAN Active on Demand: Link Failure, Traffic Threshold
- Connection Detection: PPP, ARP Detect, Ping Detect
- WAN Data Budget
- Dynamic DNS
- DrayDDNS – with automated LetsEncrypt Certificates
-
Full Feature-set Hardware Acceleration:
- Hardware Accelerated Quality of Service
- Multi-WAN Data Budget
- Traffic Graph & Data Flow Monitor
- Bandwidth Limit
- Hardware Acceleration for Wireless Clients - New!
- IPv4 Connection Types: PPPoA, PPPoE, MPoA, DHCP, Static IP, PPTP/L2TP (Ethernet WAN only)
-
IPv6 Connection Types:
- Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
- 4G/LTE Modem & USB 4G/LTE Modem: TSPC, AICCU, Static IPv6, DHCPv6 Client
G.fast, VDSL & ADSL Features
- BT Infinity Option 1 & Option 2 Compatible
- Compliant with Openreach SIN 527 & SIN 498
- Auto Detection of G.fast, VDSL and ADSL line modes
- Support for G.INP & Vectoring
-
G.fast Standards:
- ITU-T G.9700, G.9701 G.fast
- Profile: 212MHz & 106MHz
-
VDSL Standards:
- ITU-T G.993.1 VDSL
- ITU-T G.993.2, G.997.1 VDSL2
- Band Plan: G.998, G.997
- Annex A, Annex B, Annex C
- VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b
- OLR, UPBO, DPBO Supported
- US0 Supported
- Loop Diagnostic Mode
- DSL Forum WT-114
-
ADSL Standards:
- ANSI T1.413 Issue2
- ITU-T G.992.1 G.dmt (ADSL)
- ITU-T G.992.2 G.lite
- ITU-T G.992.3 ADSL2
- ITU-T G.992.5 ADSL2+
-
ATM Protocols:
- RFC-2684/RFC-1483 Multiple Protocol over AAL5
- RFC-2516 PPP over Ethernet
- RFC-2364 PPP over AAL5
- Support for RFC4638 for MTU up to 1500
Wireless Features (‘ax’ models)
- AX3000 Wi-Fi 6 wireless:
-
- 802.11ax 2x2 wireless access point
- Compatible with 802.11a/b/g/n/ac wireless
- Dual-band (2.4/5Ghz) simultaneous wireless
- Up to 2400Mbps PHY rate at 160MHz with 5GHz
- Up to 574Mbps PHY rate at 40MHz with 2.4GHz
- Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80/160MHz for 5GHz
- OFDMA
- MU-MIMO
- Tx Beamforming
- 1024-QAM
- Hardware Acceleration for Wireless Clients – New!
- Mesh Root support with DrayTek VigorAP Mesh Nodes – *Planned in future firmware release
- Up to 4 SSIDs per radio band
- Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
- Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
- Bandwidth Management (Per Station / Per SSID)
- WMM (Wireless MultiMedia)
- WPS - WiFi Protected Setup
- Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
- EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
-
Wireless Security:
- WPA2
- WPA3 – New! (requires f/w 4.3.0)
- Pre-Shared Key authentication
- Enterprise 802.1x authentication
- WEP/WPA for Legacy Clients
- Access Control – Blacklist / Whitelist client MAC addresses per SSID
Antenna Specifications
- 2x External Dipole
- 5GHz Gain: 4.5 dBi
- 2.4GHz Gain: 5 dBi
- RP-SMA fitting antenna connectors
Firewall & Content Filtering
- IP-based or User-based Firewall Policy
- User-based Time Quota
- DoS Attack Defence
- Spoofing Defence
-
Content Filtering:
- Application Content Filter
- URL Content Filter
- DNS Keyword Filter
- Web Features
- Web Category Filter (requires GlobalView subscription)
NAT Features
- NAT Port Redirection
- Open Ports
- Port Triggering
- DMZ Host
- UPnP
- ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
- VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management
- 802.1q Tag-based, Port-based VLAN
- Up to 8 LAN Subnets (NAT or Routing mode selectable per LAN interface)
- Up to 16 VLANs
- DMZ Port
-
DHCP Server:
- Multiple IP Subnet
- Custom DHCP Options
- Bind-IP-to-MAC
- DHCP Pool Count up to 1022 addresses for LANs 1-3
- DHCP Pool Count up to 253 addresses for LANs 4-8
- DHCP Relay per LAN
- LAN IP Alias
- Wired 802.1x Port Authentication
- Port Mirroring
- Local DNS Server
- Conditional DNS Forwarding
- Hotspot Web Portal
- Hotspot Authentication: Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking Features
- Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
- High Availability: Active-Standby, Hot-Standby
- DNS Security (DNSSEC)
- Local RADIUS server
- SMB File Sharing (Requires external storage)
- Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
- Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, BGP
VPN
- Up to 32 active VPN tunnels - including up to 16 SSL VPN or OpenVPN Tunnels
- Up to 16 Hardware Accelerated 800Mb/s IPsec tunnels – New!
- LAN-to-LAN - Dial-In VPN Server & Dial-Out VPN Client
- Teleworker-to-LAN – Dial-In VPN Server
- User Authentication: Local, RADIUS, LDAP, TACACS+, mOTP
- IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
- Encryption: MPPE, DES, 3DES, AES (128/192/256)
- Authentication: SHA-256, SHA-1
- VPN Trunk (Redundancy): Load Balancing, Failover
- Dead Peer Detection (DPD)
- IPsec NAT-Traversal (NAT-T)
- Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
- DHCP over IPsec
- DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
-
VPN Protocols:
- IPsec IKEv1, IKEv2, IKEv2 EAP
- IPsec-XAuth
- DrayTek SSL VPN
- OpenVPN (Remote Dial-In User only)
- GRE over IPsec
- PPTP
- L2TP, L2TP over IPsec
Bandwidth Management
- IP-based Bandwidth Limit
- IP-based Session Limit
- User-based Data Quota
Quality of Service (QoS)
- Classify via TOS, DSCP, 802.1p, IP Address, Service Type
- 4 Priority Queues
- App QoS
- VoIP Prioritization
- Class-based Outbound Traffic Tagging: DSCP & IP Precedence
Management
- Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
- Config File Export & Import
- Import Config from:
- Vigor 2860 series
- Vigor 2862 series
- Vigor 2865 series* (planned for f/w 4.4.0)
- Auto Backup Config to USB Storage – New!
- Firmware Upgrade via TFTP, HTTP, TR-069
- 2-Level Administration Privilege
- Access Control Features: Access List, Brute Force Protection
- Syslog
- SMS, E-mail Notification Alert
- SNMP: v1, v2c, v3
- Managed by VigorACS
Router Central Management Features
- AP Management: Up to 20 VigorAP access points
- Switch Management: Up to 10 VigorSwitch network switches
- VPN Management: Up to 8 Vigor routers
- DrayTek Mesh: Up to 7 VigorAP access points – *Planned in future firmware release
Operating Requirements
- Rack Mountable (Optional Vigor RM1 mounting bracket required)
- Wall or Shelf Mountable with included fittings
- Temperature Operating: 0 °C ~ 45 °C
- Storage: -25 °C ~ 70 °C
- Humidity 10% ~ 90% (non-condensing)
- Power Consumption: 28.2 watts maximum ('ax' model)
- Operating Power: DC 12V (via external PSU, supplied)
- Power Requirements: 100-240VAC
- Weight: 780g ('ax' model)
-
Dimensions:
- 241mm Width
- 165mm Depth
- 44mm Height
Warranty
- Two (2) Year Manufacturer's RTB
- Optional VigorCare Enhanced Warranty Available
Box Contents
- Vigor 2866ax router
- Quick Start Guide
- Screws & wall plugs for wall mounting
- 2m Cat-5e RJ-45 Network Cable
- 2x Detachable Wireless LAN Antennas
- DC 12V Power Supply with UK Plug
Shipping
Shipping
We require 1 working day to process your order and aim to deliver your goods within 3 working days. Working days are Monday to Friday. Our Logistics Centre will process orders up to 11pm the same day. For example, if you place an order on Monday at 8am, your order will be processed that day before 11pm and leave our logistics centre on Tuesday.
The majority of goods are despatched between 1-3 working days subject to availability. If you opt for the standard delivery service, you will receive your order within 1-3 days. You can opt for an enhanced delivery service for a quicker service. Some goods are despatched from overseas locations and therefore you will experience a longer lead time. You will be notified if an order is being fulfilled from an overseas location.
Returns
Returns
We accept returns within 30 days. All we ask is that the item is returned in its original condition we all seals intact.
Note: You are not able to return any type of item that cannot be resold for hygiene reasons, such as headphones, earpieces etc
Please read our returns policy
Warranty
Warranty
All products come with the standard manufacturer warranty. Extended warranty can also be purchased. Read more...
-
Many more brands available...
Contact usWe are a UK distributer and have access to over 500 brands and 100,000 products. We cannot get all of this on the website, so contact us for a quote.
