DrayTek

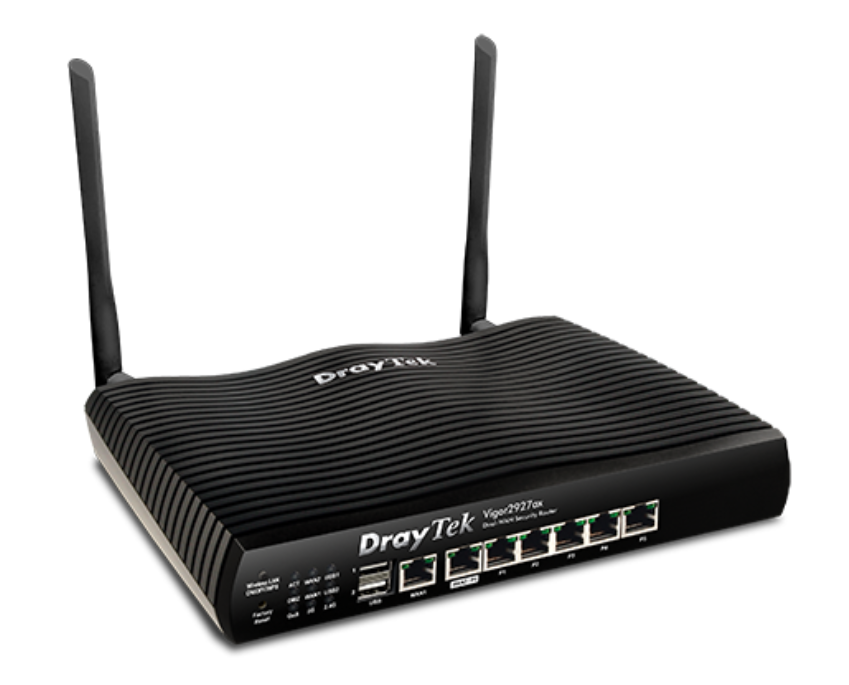

DrayTek Vigor 2927ax ADSL or VDSL Router/Firewall | V2866VAC-K
DrayTek Vigor 2927ax ADSL or VDSL Router/Firewall | V2866VAC-K
Couldn't load pickup availability
DrayTek Vigor 2927ax ADSL or VDSL Router/Firewall | V2866VAC-K
Key Specifications
- Gigabit Dual-WAN Ethernet WAN Router with Load Balancing & Failover
- Up to 950Mbps Throughput per WAN interface, 1800Mbps in total
- Up to 300Mbps IPsec VPN Throughput
- 50 LAN-to-LAN & Remote Teleworker VPN Tunnels
- 25 DrayTek SSL VPN Tunnels
- 5+1 Gigabit RJ-45 LAN Ports
- AX3000 – Wi-Fi 6 Dual Band Wireless
- 8 LAN Subnets with VLANs (Port-based / 802.1q)
- SPI Firewall and Content Filtering
- Optional VigorCare Available
- Can be centrally Managed by VigorACS
Key Features & Benefits
Gigabit Dual-WAN Load Balancer
Make full use of Fibre Broadband with the Vigor 2927ax’s Gigabit throughput per-WAN. Up to 1.8Gbps total combined throughput with Firewall, Content Filtering and Quality of Service.
Benefits: Unleash the full potential of Fibre broadband. High speed, Gigabit CPE with flexible application.
Wi-Fi 6 - AX3000 Performance
Wi-Fi 6 wireless provides gigabit Wi-Fi with reliable throughput. Ideal for time-sensitive video conferencing, low latency gaming and handling 4K Ultra-HD streaming, without buffering.
Benefits: Improve wireless performance. Built with the latest technologies.
Quality of Service with App QoS
Prioritise essential services easily with DrayTek's App QoS system and Auto-VoIP prioritisation. Customise QoS for your network with four QoS priority queues.
Benefits: Ensures the best quality and overall performance from your Internet connections.
Ideal VPN Router for SMB
Provide fast and secure VPN access, with up to 50 VPN tunnels. Enabling remote workers to access network resources and connecting remote sites. With DrayTek SSL VPN and OpenVPN support.
Benefits: Provide secure, encrypted network access for remote workers.
5+1 Gigabit LAN Ports with VLANs
Attach Computers, Servers and Network Attached Storage directly, with up to 6 Gigabit LAN ports. Use VLANs to supply Broadband & VPN connectivity to as many as 8 separate networks.
Benefits: Improve quality of service for private, office and guest data traffic.
VigorACS SD-WAN Central Management
Manage the Vigor 2927 remotely and utilise DrayTek’s powerful SD-WAN features with the VigorACS 3 management platform. Centrally manage & provision whole networks across multiple sites.
Benefits: Save time and money. Provision, manage and monitor remote sites easily, without on-site IT or dedicated staff.
The Ideal VPN Router for Small Business and Remote Working
The DrayTek Vigor 2927ax - Dual-WAN Load Balancing Firewall VPN Router allows you to make the most of FTTP Fibre Broadband with Gigabit WAN throughput, extensive Firewall, Content Filtering, VPN client/server and Quality of Service controls.
The Vigor 2927ax features Wi-Fi 6 wireless, providing fast and efficient AX3000 wireless networking to your computers and devices. OFDMA enables the router to send data to more than one client at a time.
The Vigor 2927ax provides a reliable, flexible, and secure network solution, that’s ideal for Small Business and Home Offices.
The Vigor 2927 series comes in several different models depending on the features required. Please double check when ordering that you have selected the correct product and a product intended for the correct region/network.
This model:
| UK Product Code | EAN | Product Name | Product Description |
|---|---|---|---|
| V2927AX-K | 4710484743879 | Vigor 2927ax (UK/IE) | Vigor 2927ax router with Wi-Fi 6 AX3000 wireless |
Other models in the Vigor 2927 router series:
| UK Product Code | EAN | Product Name | Product Description |
|---|---|---|---|
| V2927-K | 4710484741288 | Vigor 2927 (UK/IE) | Vigor 2927 wired router |
| V2927AC-K | 4710484741486 | Vigor 2927ac (UK/IE) | Vigor 2927ac router with 11ac AC1300 wireless |
| V2927LAC-K | 4710484742018 | Vigor 2927Lac (UK/IE) | Vigor 2927Lac router with 11ac AC1300 wireless and integrated 4G/LTE modem |
The EAN is a barcode number which identifies the unique specific product type. It is separate to the product serial number which is unique to each product. The EAN will also appear on your product box when you receive it so you can double check that you have been sent the right product.
These product codes are for UK/Irish products only. Please check with your local DrayTek office for the correct part nos. for your region if you are not in the UK/IE to ensure that you get the correct hardware and local support/warranty.
Technical Specification (UK Hardware Spec.)
Physical Interfaces
- WAN Ports: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
- WAN/LAN Switchable Ports: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
- LAN Ports: 5x Gigabit Ethernet (1G/100M/10M), RJ-45
- 2x Removable Wireless antennas
- 2x USB 2.0 Ports for 3G/4G Modem, thermometer or Printer
- Wireless On / Off / WPS button
- Recessed Factory Reset button
Antenna Specifications
-
Wireless LAN Antennas:
- 2x External Dipole
- 5GHz Gain: 4.5 dBi
- 2.4GHz Gain: 5 dBi
- RP-SMA fitting antenna connectors
Performance
-
NAT Performance:
- 950 Mb/s NAT Throughput for Single WAN with Hardware Acceleration
- 1.8Gb/s Total NAT Throughput for Dual WAN with Hardware Acceleration
- 800 Mb/s NAT Throughput per WAN
- 60,000 NAT Sessions
- 8000 Hardware Accelerated NAT Sessions
-
VPN Performance:
- 300 Mb/s IPsec (AES256) VPN Performance
- 800 Mb/s Hardware Accelerated IPsec VPN Performance - New!
- 120 Mb/s SSL VPN Performance
- Max. 50 Concurrent VPN Tunnels
- Max. 25 Concurrent SSL VPN / OpenVPN Tunnels
WAN Interfaces
- WAN1: Gigabit Ethernet
- WAN2: Gigabit Ethernet
- WAN3: 2.4GHz Wireless WAN
- WAN4: 5GHz Wireless WAN
- WAN5: 4G/LTE USB Modem (not included, see supported 4G/LTE modem list)
- WAN6: 4G/LTE USB Modem (not included)
Internet Connection
- Load Balancing: IP-based, Session-based
- Hardware Acceleration
- 802.1p/q Multi-VLAN Tagging
- Multi-VLAN/PVC
- 2.4GHz & 5GHz Simultaneous Wireless WAN
- WAN Active on Demand: Link Failure, Traffic Threshold
- Connection Detection: PPP, ARP Detect, Ping Detect
- WAN Data Budget
- Dynamic DNS
- DrayDDNS – with automated LetsEncrypt Certificates
-
Full Feature-set Hardware Acceleration:
- Hardware Accelerated Quality of Service
- Multi-WAN Data Budget
- Traffic Graph & Data Flow Monitor
- Bandwidth Limit
- IPv4 Connection Types: PPPoE, DHCP, Static IP, PPTP/L2TP
-
IPv6 Connection Types:
- Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
- 4G/LTE Modem & USB 4G/LTE Modem: TSPC, AICCU
Wireless Features
- AX3000 Wi-Fi 6 wireless:
-
- 802.11ax 2x2 wireless access point
- Compatible with 802.11a/b/g/n/ac wireless
- Dual-band (2.4/5Ghz) simultaneous wireless
- Up to 2400Mbps PHY rate at 160MHz with 5GHz
- Up to 574Mbps PHY rate at 40MHz with 2.4GHz
- Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80/160MHz for 5GHz
- OFDMA
- MU-MIMO
- Tx Beamforming
- 1024-QAM
- Mesh Root support with DrayTek VigorAP Mesh Nodes – New!
- Up to 4 SSIDs per radio band
- Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
- Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
- Bandwidth Management (Per Station / Per SSID)
- WMM (Wireless MultiMedia)
- WPS - WiFi Protected Setup
- Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
- EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
-
Wireless Security:
- WPA2
- WPA3 – New!
- Pre-Shared Key authentication
- Enterprise 802.1x authentication
- WEP/WPA for Legacy Clients
- Access Control – Blacklist / Whitelist client MAC addresses per SSID
Firewall & Content Filtering
- IP-based or User-based Firewall Policy
- User-based Time Quota
- DoS Attack Defence
- Spoofing Defence
-
Content Filtering:
- Application Content Filter
- URL Content Filter
- DNS Keyword Filter
- Web Features
- Web Category Filter (requires GlobalView subscription)
NAT Features
- NAT Port Redirection
- Open Ports
- Port Triggering
- DMZ Host
- UPnP
- ALG (Application Layer Gateway): SIP, RTSP, FTP, H.323
- VPN Pass-Through: PPTP, L2TP, IPsec
LAN Management
- 802.1q Tag-based, Port-based VLAN
- Up to 8 LAN Subnets (NAT or Routing mode selectable per LAN interface)
- Up to 16 VLANs
- DMZ Port
-
DHCP Server:
- Multiple IP Subnet
- Custom DHCP Options
- Bind-IP-to-MAC
- DHCP Pool Count up to 1022 addresses for LANs 1-3
- DHCP Pool Count up to 253 addresses for LANs 4-8
- DHCP Relay per LAN
- LAN IP Alias
- Wired 802.1x Port Authentication
- Port Mirroring
- Local DNS Server
- Conditional DNS Forwarding
- Hotspot Web Portal
- Hotspot Authentication: Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking Features
- Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
- High Availability: Active-Standby, Hot-Standby
- DNS Security (DNSSEC)
- Local RADIUS server
- SMB File Sharing (Requires external storage)
- Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
- Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, BGP
VPN
- Up to 50 active VPN tunnels - including up to 25 SSL VPN or OpenVPN Tunnels
- Up to 16 Hardware Accelerated 800Mb/s IPsec tunnels – New!
- LAN-to-LAN - Dial-In VPN Server & Dial-Out VPN Client
- Teleworker-to-LAN – Dial-In VPN Server
- User Authentication: Local, RADIUS, LDAP, TACACS+, mOTP
- IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
- Encryption: MPPE, DES, 3DES, AES (128/192/256)
- Authentication: SHA-256, SHA-1
- VPN Trunk (Redundancy): Load Balancing, Failover
- Dead Peer Detection (DPD)
- IPsec NAT-Traversal (NAT-T)
- Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
- DHCP over IPsec
- DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
-
VPN Protocols:
- IPsec IKEv1, IKEv2, IKEv2 EAP
- IPsec-XAuth
- DrayTek SSL VPN
- OpenVPN (Remote Dial-In User only)
- GRE over IPsec
- PPTP
- L2TP, L2TP over IPsec
Bandwidth Management
- IP-based Bandwidth Limit
- IP-based Session Limit
- User-based Data Quota
Quality of Service (QoS)
- Classify via TOS, DSCP, 802.1p, IP Address, Service Type
- 4 Priority Queues
- App QoS
- VoIP Prioritization
- Class-based Outbound Traffic Tagging: DSCP & IP Precedence
Management
- Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
- Config File Export & Import
- Import Config from Vigor 2926
- Auto Backup Config to USB Storage – New!
- Firmware Upgrade via TFTP, HTTP, TR-069
- 2-Level Administration Privilege
- Access Control Features: Access List, Brute Force Protection
- Syslog
- SMS, E-mail Notification Alert
- SNMP: v1, v2c, v3
- Managed by VigorACS
Router Central Management Features
- AP Management: Up to 20 VigorAP access points
- Switch Management: Up to 10 VigorSwitch network switches
- VPN Management: Up to 8 Vigor routers
- DrayTek Mesh: Up to 7 VigorAP access points – New!
Operating Requirements
- Rack Mountable (Optional Vigor RM1 mounting bracket required)
- Wall Mountable
- Temperature Operating: 0 °C ~ 45 °C
- Storage: -25 °C ~ 70 °C
- Humidity 10% ~ 90% (non-condensing)
- Power Consumption: 26.8 Watt Max.
- Operating Power: DC 12V (via external PSU, supplied)
- Power Requirements : 100-240VAC
- Weight: 780g
-
Dimensions:
- 241mm Width
- 165mm Depth
- 44mm Height
Warranty
- Two (2) Year Manufacturer's RTB
- Optional VigorCare Enhanced Warranty Available
Box Contents
- Vigor 2927ax router
- Quick Start Guide
- Screws & wall plugs for wall mounting
- 2m Cat-5e RJ-45 Network Cable
- 2x Detachable Wireless LAN Antennas
- DC 12V Power Supply with UK Plug
