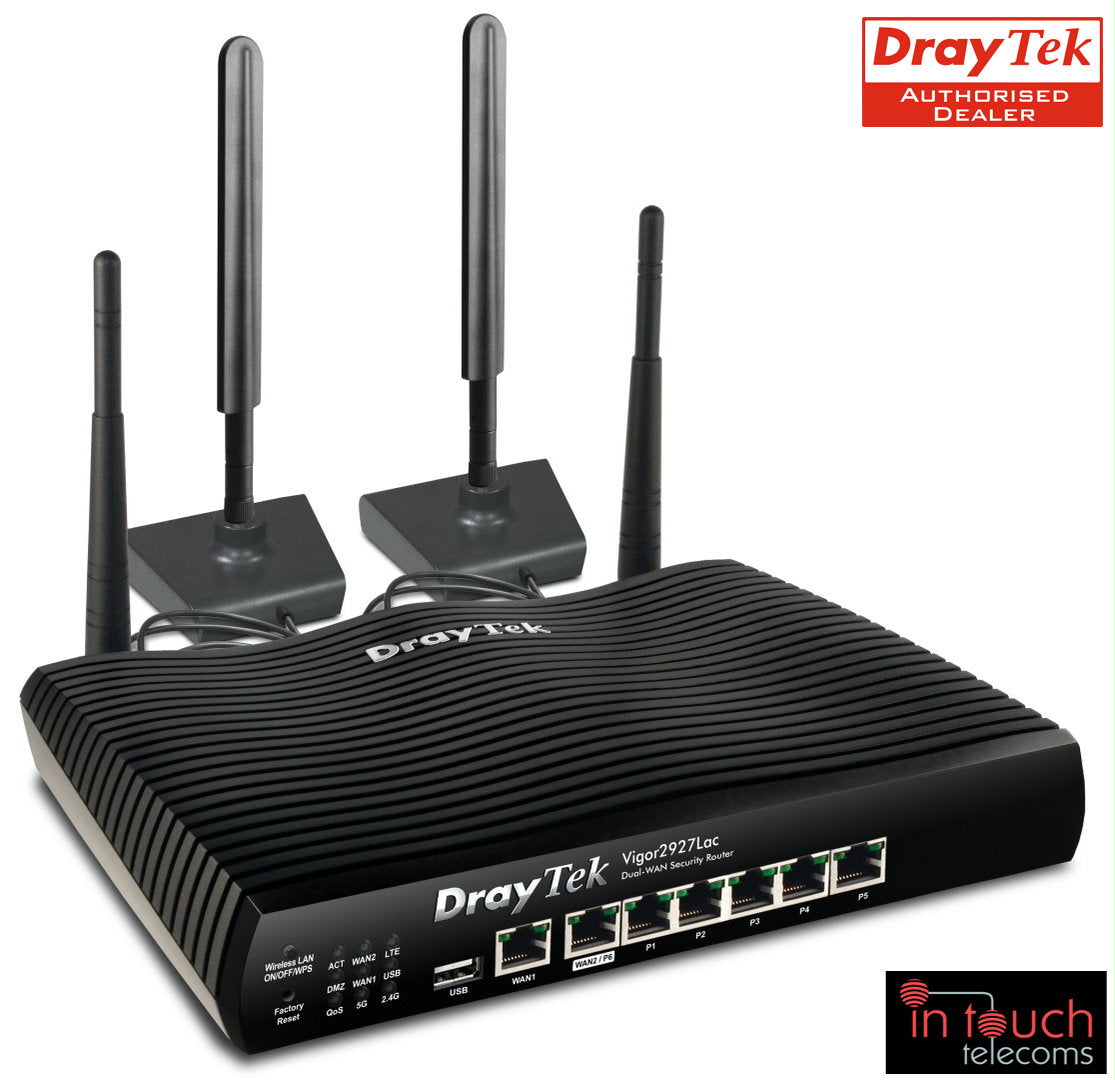

DrayTek Vigor 2927Lac | Dual Ethernet Gigabit WAN Wi-Fi with 4G (cellular) dual-SIM slots

DrayTek Vigor 2927Lac | Dual Ethernet Gigabit WAN Wi-Fi with 4G (cellular) dual-SIM slots

£586.80 GBP
£594.00 GBP £586.80 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek Vigor 2927Lac | Dual Ethernet Gigabit WAN Wi-Fi with 4G (cellular) dual-SIM slots

The Ideal VPN Router for Small Business and Remote Working

The DrayTek Vigor 2927Lac is a powerful Dual-WAN, Load Balancing, Firewall & VPN Router. It comes packed with features, allowing you to make the most of FTTP Fibre Broadband, with Gigabit WAN throughput, extensive Firewall, Content Filtering, VPN client/server, and Quality of Service controls.

It incorporates an integrated 4G/LTE modem so you can take advantage of mobile broadband, and with fast Dual-Band AC1300 WiFi the Vigor 2927Lac provides a reliable, flexible, and secure network solution that’s ideal for Small Business and Home Offices.

Click here for video tutorial

UK Product Code EAN Product Name Product Description
V2927LAC-K 4710484742018 Vigor 2927Lac (UK/IE) Vigor 2927Lac router with 11ac AC1300 wireless and integrated 4G/LTE modem

Key Specifications

  • Gigabit Dual-WAN Ethernet WAN Router with Load Balancing & Failover
  • Up to 950Mbps Throughput per WAN interface, 1800Mbps in total
  • Up to 300Mbps IPsec VPN Throughput
  • 50 LAN-to-LAN & Remote Teleworker VPN Tunnels
  • 25 DrayTek SSL VPN Tunnels
  • 5+1 Gigabit RJ-45 LAN Ports
  • 4G/LTE with dual-SIMs for second backup telco
  • AC1300 - 11ac 'Wave 2' Dual Band Wireless
  • 8 LAN Subnets with VLANs (Port-based / 802.1q)
  • SPI Firewall and Content Filtering
  • Optional VigorCare Available
  • Can be centrally Managed by VigorACS

Technical Specification (UK Hardware Spec.)

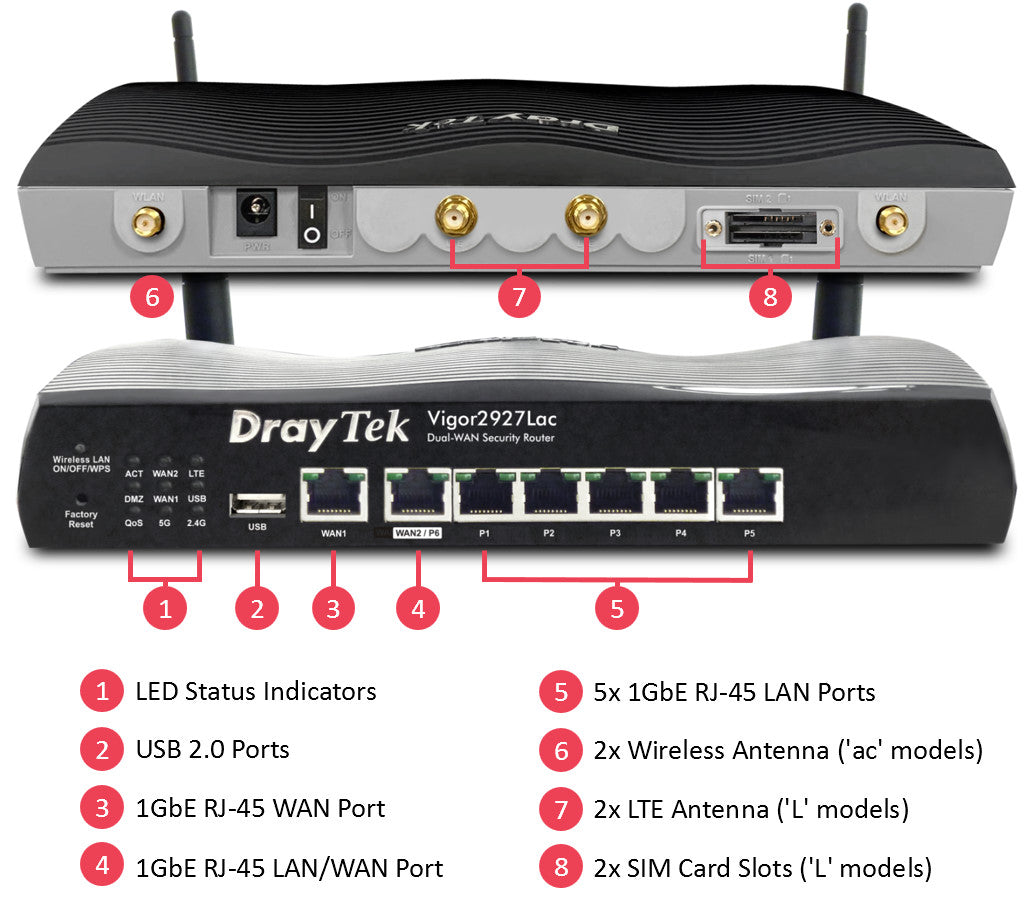

Physical Interfaces

  • WAN Ports: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
  • WAN/LAN Switchable Ports: 1x Gigabit Ethernet (1G/100M/10M), RJ-45
  • LAN Ports: 5x Gigabit Ethernet (1G/100M/10M), RJ-45
  • 2x Removable Wireless antennas
  • 2x Removable 4G/LTE Wireless antennas
  • USB 2.0 Port for 3G/4G Modem, thermometer or Printer
  • Wireless On / Off / WPS button
  • Recessed Factory Reset button

Antenna Specifications

  • Wireless Antennas:
    • 2x External Dipole
    • 5GHz Gain: 4 dBi
    • 2.4GHz Gain: 2 dBi
  • LTE Antennas:
    • 2x External Dipole
    • 2x 1m extension base included
    • Gain: 3 dBi

Performance

  • NAT Performance:
    • 950 Mb/s NAT Throughput for Single WAN with Hardware Acceleration
    • 1.8Gb/s Total NAT Throughput for Dual WAN with Hardware Acceleration
    • 800 Mb/s NAT Throughput per WAN
    • 60,000 NAT Sessions
    • 8000 Hardware Accelerated NAT Sessions
  • VPN Performance:
    • 300 Mb/s IPsec (AES256) VPN Performance
    • 800 Mb/s Hardware Accelerated IPsec VPN Performance - New! (requires f/w 4.2.1)
    • 120 Mb/s SSL VPN Performance
    • Max. 50 Concurrent VPN Tunnels
    • Max. 25 Concurrent SSL VPN / OpenVPN Tunnels

WAN Interfaces

  • WAN1: Gigabit Ethernet
  • WAN2: Gigabit Ethernet
  • WAN3: 2.4GHz Wireless WAN
  • WAN4: 5GHz Wireless WAN
  • WAN5: Integrated 4G/LTE Category 6 Modem
  • WAN6: 4G/LTE USB Modem (not included, see supported 4G/LTE modem list)

Internet Connection

  • Load Balancing: IP-based, Session-based
  • Hardware Acceleration
  • 802.1p/q Multi-VLAN Tagging
  • Multi-VLAN/PVC
  • 2.4GHz & 5GHz Simultaneous Wireless WAN
  • WAN Active on Demand:  Link Failure, Traffic Threshold
  • Connection Detection: PPP, ARP Detect, Ping Detect
  • WAN Data Budget
  • Dynamic DNS
  • DrayDDNS – with automated LetsEncrypt Certificates
  • Full Feature-set Hardware Acceleration (requires f/w 4.2.1):
    • Hardware Accelerated Quality of Service
    • Multi-WAN Data Budget
    • Traffic Graph & Data Flow Monitor
    • Bandwidth Limit
  • IPv4 Connection Types:  PPPoE, DHCP, Static IP, PPTP/L2TP
  • IPv6 Connection Types:
    • Ethernet: PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
    • 4G/LTE Modem & USB 4G/LTE Modem: TSPC, AICCU

Integrated 4G LTE Modem Features

  • Dual-SIM Failover (1 SIM online at a time)
  • 4G LTE Category 6 Modem with fallback to 3G / GPRS
  • Unlocked to any network (BT, EE, 3, O2, Vodafone, Eircom)
  • 4G LTE Max Data Rates:
    • 300Mbps Downlink (Category 6)
    • 50Mbps Uplink (Category 6)
  • 4G LTE (FDD) Bands: 1, 3, 5, 7, 8, 20, 28, 32
  • 4G LTE (TDD) Bands: 38, 40, 41
  • 3G (WCDMA/HSPA+/UMTS) Bands: 1, 3, 5, 8
  • 2x LTE Antennas included with 1m extension cables
  • Per-SIM-Card WAN Data Budget
  • 2x Standard-Size SIM-Card Slots
  • Removable SIM slot cover
  • SMS Inbox - Send & Receive SMS text messages
  • SMS Router Commands - Status Report, Reboot via text message
  • LTE Bridge Mode - New!

Wireless Features

  • AC1300 - 11ac 'Wave 2' Dual Band Wireless:
    • 802.11ac 2x2 wireless access point
    • Compatible with 802.11a/b/g/n wireless
    • Dual-band (2.4/5Ghz) simultaneous wireless
    • Up to 866Mbps PHY rate at 80MHz with 5GHz
    • Up to 400Mbps PHY rate at 40MHz with 2.4GHz (256-QAM)
    • Channel Bandwidth: 20/40MHz for 2.4GHz, 20/40/80MHz for 5GHz
    • MU-MIMO
    • Tx Beamforming
  • Mesh Root support with DrayTek VigorAP Mesh Nodes – New! (requires f/w 4.3.0, available in Q4 2020)
  • Up to 4 SSIDs per radio band
  • Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
  • Wireless Optimisation: Airtime Fairness, AP-Assisted Mobility, Band Steering
  • Bandwidth Management (Per Station / Per SSID)
  • WMM (Wireless MultiMedia)
  • WPS - WiFi Protected Setup
  • Station Control - Time limited wireless connectivity per Station (e.g. 1 hour)
  • EAPOL Key Retry - Disable EAPOL Key Retry to protect unpatched WLAN clients from KRACK
  • Wireless Security:
    • WPA2
    • WPA3 – New! (requires f/w 4.2.2)
    • Pre-Shared Key authentication
    • Enterprise 802.1x authentication
    • WEP/WPA for Legacy Clients
    • Access Control – Blacklist / Whitelist client MAC addresses per SSID

Firewall & Content Filtering

  • IP-based or User-based Firewall Policy
  • User-based Time Quota
  • DoS Attack Defence
  • Spoofing Defence
  • Content Filtering:
    • Application Content Filter
    • URL Content Filter
    • DNS Keyword Filter
    • Web Features
    • Web Category Filter (requires GlobalView subscription)

NAT Features

  • NAT Port Redirection
  • Open Ports
  • Port Triggering
  • DMZ Host
  • UPnP
  • ALG (Application Layer Gateway):  SIP, RTSP, FTP, H.323
  • VPN Pass-Through:  PPTP, L2TP, IPsec

LAN Management

  • 802.1q Tag-based, Port-based VLAN
  • Up to 8 LAN Subnets (NAT or Routing mode selectable per LAN interface)
  • Up to 16 VLANs
  • DMZ Port
  • DHCP Server:
    • Multiple IP Subnet
    • Custom DHCP Options
    • Bind-IP-to-MAC
    • DHCP Pool Count up to 1022 addresses for LANs 1-3
    • DHCP Pool Count up to 253 addresses for LANs 4-8
    • DHCP Relay per LAN
  • LAN IP Alias
  • Wired 802.1x Port Authentication
  • Port Mirroring
  • Local DNS Server
  • Conditional DNS Forwarding
  • Hotspot Web Portal
  • Hotspot Authentication: Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server

Networking Features

  • Policy-based Routing: Protocol, IP Address, Port, Domain/Hostname, Country
  • High Availability: Active-Standby, Hot-Standby
  • DNS Security (DNSSEC)
  • Local RADIUS server
  • SMB File Sharing (Requires external storage)
  • Multicast: IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
  • Routing Features: IPv4 & IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, BGP

VPN

  • Up to 50 active VPN tunnels - including up to 25 SSL VPN or OpenVPN Tunnels
  • Up to 16 Hardware Accelerated 800Mb/s IPsec tunnels – New! (requires f/w 4.2.1)
  • LAN-to-LAN - Dial-In VPN Server & Dial-Out VPN Client
  • Teleworker-to-LAN – Dial-In VPN Server
  • User Authentication: Local, RADIUS, LDAP, TACACS+, mOTP
  • IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
  • Encryption: MPPE, DES, 3DES, AES (128/192/256)
  • Authentication: SHA-256, SHA-1
  • VPN Trunk (Redundancy): Load Balancing, Failover
  • Dead Peer Detection (DPD)
  • IPsec NAT-Traversal (NAT-T)
  • Virtual IP Mapping – Resolve VPN IP subnet/range conflicts
  • DHCP over IPsec
  • DrayTek VPN Matcher – Connect to a VPN router that’s behind NAT/CG-NAT - New!
  • VPN Protocols:
    • IPsec IKEv1, IKEv2, IKEv2 EAP
    • IPsec-XAuth
    • DrayTek SSL VPN
    • OpenVPN (Remote Dial-In User only)
    • GRE over IPsec
    • PPTP
    • L2TP, L2TP over IPsec

Bandwidth Management

  • IP-based Bandwidth Limit
  • IP-based Session Limit
  • User-based Data Quota

Quality of Service (QoS)

  • Classify via TOS, DSCP, 802.1p, IP Address, Service Type
  • 4 Priority Queues
  • App QoS
  • VoIP Prioritization
  • Class-based Outbound Traffic Tagging: DSCP & IP Precedence

Management

  • Local Service: HTTP, HTTPS, Telnet, SSH, FTP, TR-069
  • Config File Export & Import
  • Import Config from Vigor 2926
  • Auto Backup Config to USB Storage – New!
  • Firmware Upgrade via TFTP, HTTP, TR-069
  • 2-Level Administration Privilege
  • Access Control Features: Access List, Brute Force Protection
  • Syslog
  • SMS, E-mail Notification Alert
  • SNMP: v1, v2c, v3
  • Managed by VigorACS

Router Central Management Features

  • AP Management: Up to 20 VigorAP access points
  • Switch Management: Up to 10 VigorSwitch network switches
  • VPN Management: Up to 8 Vigor routers
  • DrayTek Mesh: Up to 7 VigorAP access points – New! (requires f/w 4.3.0, available in Q4 2020)

Operating Requirements

  • Rack Mountable (Optional Vigor RM1 mounting bracket required)
  • Wall Mountable
  • Temperature Operating: 0 °C ~ 45 °C
  • Storage: -25 °C ~ 70 °C
  • Humidity 10% ~ 90% (non-condensing)
  • Power Consumption: 24 Watt Max.
  • Operating Power: DC 12V (via external PSU, supplied)
  • Warranty
    • Two (2) Year Manufacturer's RTB
    • Optional VigorCare Enhanced Warranty Available
      • VigorCare B3 3 Year Subscription: VCARE-B3
      • VigorCare B5 5 Year Subscription: VCARE-B5
  • Power Requirements : 220-240VAC
  • Dimensions:
    • 241mm Width
    • 165mm Depth
    • 44mm Height

Box Contents

  • Vigor 2927Lac router
  • Quick Start Guide
  • Screws & wall plugs for wall mounting
  • 2m Cat-5e RJ-45 Network Cable
  • 2x Detachable Wireless LAN Antennas
  • 2x Detachable LTE Antennas
  • 2x 1m LTE Extension Base
  • DC 12V Power Supply with UK Plug
