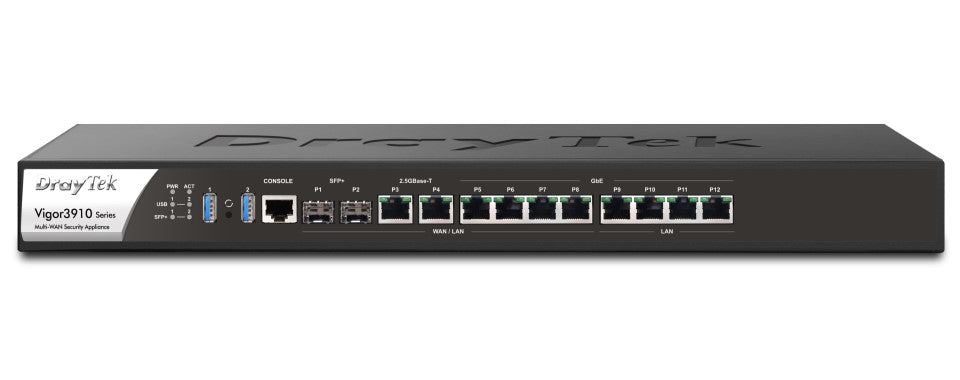

DrayTek Vigor 3910 Multi-WAN Internet Gateway Router | UK Version
The Vigor 3910 is a Multi-WAN VPN Router designed for high performance and capable of handling the requirements of large and complex networks, with applications including Remote Access, Firewalling, Load-Balancing and Failover.

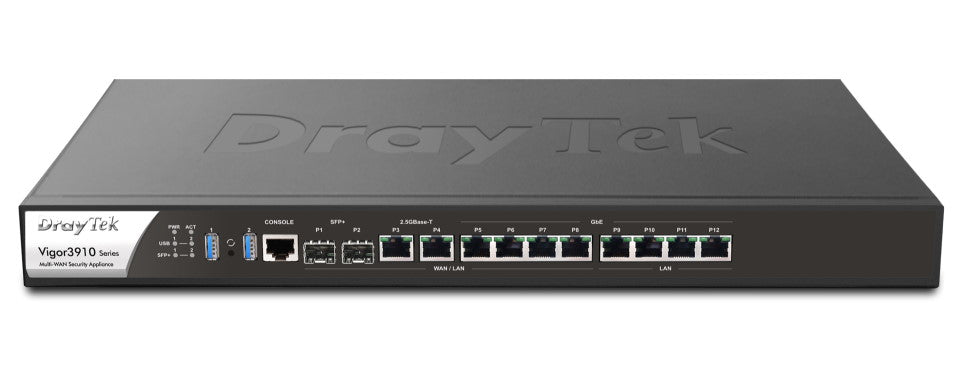

Featuring 12 LAN and WAN interfaces in total, 4 dedicated LAN ports and 8 switchable ports that can operate as LAN or WAN ports to fit your network requirements.
With up to 9Gb/s of NAT & Firewall throughput, the Vigor 3910 is suitable for the most demanding and bandwidth intensive SME applications. Each of the WAN ports on the Vigor 3910 can be grouped together to provide Load Balancing or operate as Failover or Backup WAN connections.
Based on the familiar DrayOS platform, the Vigor 3910 combines high performance and capacity with DrayTek's traditional ease of use and comprehensive feature set.
For multi-tenant or departmental flexibility, the Vigor3910 will support multiple LAN IP subnets, together with VLAN capabilities and user management, providing access to WAN resources only to the appropriate users or departments, as well as maintaining infrastructure efficiency.
| Product Code | EAN | UK Product Description |
|---|---|---|
| V3910-K | 4712909129794 | Vigor 3910 (UK/IE) |
Key Specifications
- Multi-WAN Router with 10Gb WAN

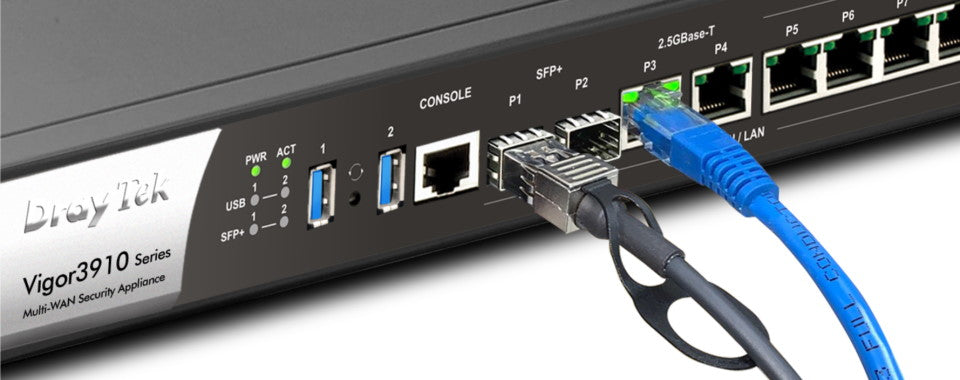

- Ethernet and Fibre WAN Router(RJ-45 & SFP+)
- High-performance VPN Concentrator
- 500 LAN-to-LAN VPN Tunnels
- 200 DrayTek SSL VPN Tunnels
- 8x Switchable LAN or WAN Ports

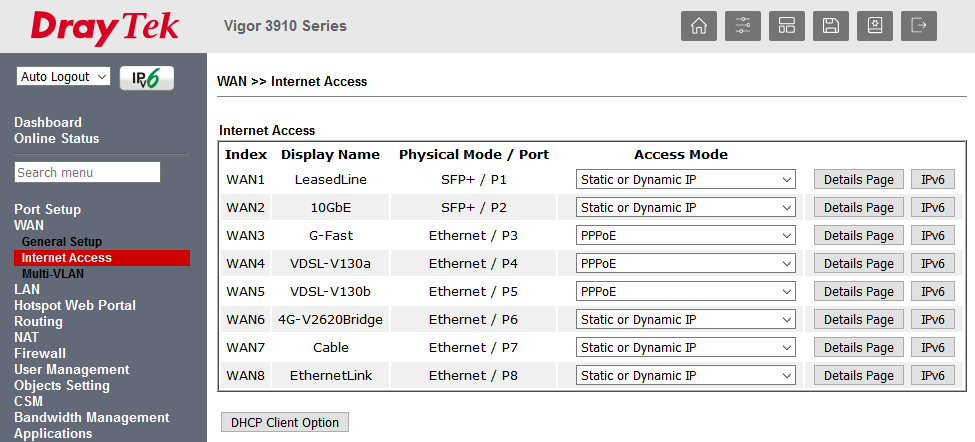

- Load Balance up to 8 WAN interfaces:
- 2x 10GbE SFP+ LAN/WAN Ports
- 2x 2.5GbE RJ-45 LAN/WAN Ports
- 4x Gigabit RJ-45 LAN/WAN Ports
- 4x Dedicated Gigabit RJ-45 LAN Ports
- 100 LAN Subnets with VLANs (Port, 802.1q)

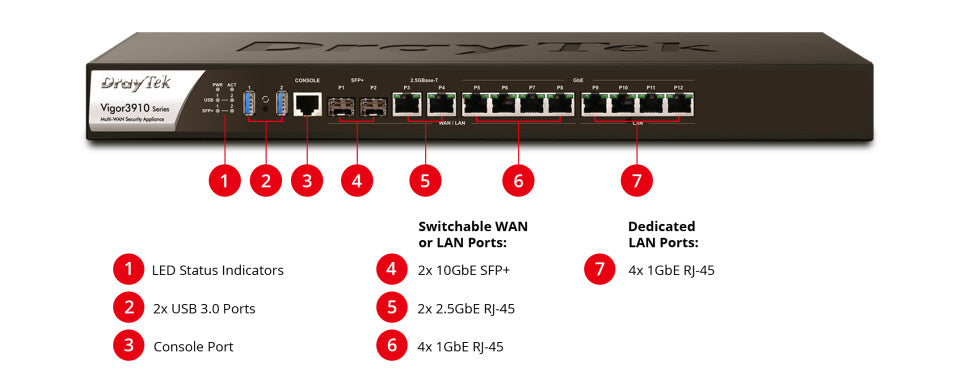

Physical Interfaces |
|
|---|---|
| WAN/LAN Switchable Port | 2x 10G/1G SFP+ Fiber Slot (P1-2) 2x 2.5G/1G/100M/10M Ethernet, RJ-45 (P3-4) 4x 1G/100M/10M Ethernet, RJ-45 (P5-8) (requires firmware 3.9.2) |
| Fixed LAN Port | 4x 1G/100M/10M Ethernet, RJ-45 (P9-12) |
| USB Port | 2x USB 3.0 |
| Console Port | 1x RJ-45 (RS-232) |
| Button | 1x Factory Reset |
Performance |
|
|---|---|
| NAT Throughput | 9 Gb/s |
| VPN Performance | 3300 Mb/s |
| SSL VPN Performance | 1000Mb/s |
| NAT Sessions | 150,000 |
| Max. Concurrent VPN Tunnels | 500 |
| Max. Concurrent SSL VPN | 200 |
Internet Connection Features |
|
|---|---|
| IPv4 | PPPoE, DHCP, Static IP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging |  |
| Multi-VLAN/PVC | |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | PPP, Ping |
| Dynamic DNS | |
| DrayDDNS |
with LetsEncrypt Certificate support
|
LAN Management Features |
|
|---|---|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 100 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias | |
| IP Pool Count | Up to 4093 per LAN Subnet |
| PPPoE Server | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | |
| Port Mirroring / Packet Capturing | |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server |
Networking Features |
|
|---|---|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, OSPFv2, BGP |
| Policy-based Routing | Match via: Protocol, IP Address, Port, Domain Name, Country Direct Traffic via: WAN Interface, LAN Interface, NAT/Routing, LAN Gateway, VPN Tunnel Failover with optional Failback to: WAN/LAN, VPN, Route Policy, LAN Gateway |
| High Availability | Active-Standby, Hot-Standby |
| DNS Security (DNSSEC) | |
| Multicast | IGMP Proxy, Bonjour |
| Local RADIUS server | |
| SMB File Sharing |
(Requires external storage)
|
VPN Features |
|
|---|---|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IPsec-XAuth, OpenVPN |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509, XAuth, EAP |
| IPsec Authentication | SHA-1, SHA-256, MD5 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) | Load Balancing, Failover |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
Firewall & Content Filtering Features |
|
|---|---|
| NAT | Port Redirection (520 rules) Open Ports (260 rules, 10 port ranges per rule) Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy |
|
| User-based Firewall Policy | with Data and Time Quota Management
|
| Content Filtering | App Enforcement - application based URL Content Filtering Web Category Filtering - Includes free 30-day trial DNS Keyword - URL or Category Web Features |
| DoS Attack Defense | |
| Spoofing Defense | |
Bandwidth Management Features |
|
|---|---|
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Service Type, App QoS |
| VoIP Prioritization | |
Router Management Features |
|
|---|---|
| Local Service | HTTP, HTTPS, Telnet, SSH, FTP, TR-069 |
| Config File Export & Import | |
| VigorACS Central Management |
(requires VigorACS version 2.5.4 for full support) |
| Access Point Management | up to 50 DrayTek VigorAPs |
| Switch Management | up to 30 DrayTek VigorSwitches |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Syslog | |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
Operating Requirements |
|
|---|---|
| Rack Mountable |
Mounting Kit Included, 1U Rack Height
|
| Dimensions | Depth: 285mm Width: 443mm Height: 45mm |
| Weight | 3.23 kg |
| Power | 220-240VAC directly to unit |
| Max.Power Consumption | 35 watts |
| Operating Temperature | 0 to 45 °C |
| Storage Temperature | -10 to 55 °C |
| Operating Humidity (non-condensing) | 10 to 90% |
Box Contents |
|
|---|---|
| Vigor 3910 Router | |
| Quick Start Guide | |
| Cat-5e RJ-45 Cable | |
| Rackmount Kit | |
| RJ-45 to RS-232 Adapter | |
| Silver RJ-45 Serial Cable | |
| IEC C13 Power Cord | |
Warranty |
|
|---|---|
| Standard Warranty | Two (2) Years, RTB |
| VigorCare Extended Warranty | VigorCare D3 3 Year Subscription: VCARE-D3
VigorCare D5 5 Year Subscription: VCARE-D5 |
All specifications are subject to change without notice.
