DrayTek VigorAP 1062C Ceiling Mount WiFi 6 Access Point | PoE, 6 Gbps AX
DrayTek VigorAP 1062C Ceiling Mount WiFi 6 Access Point | PoE, 6 Gbps AX
Couldn't load pickup availability
VigorAP 1062C
Ceiling or Wall Mounted AX 6000 Mesh Wireless PoE Access Point
The VigorAP 1062C is a high-performance ceiling or wall-mounted Mesh Wireless Access Point. It offers up to 6Gbps dual-band wireless performance and up to 2.5Gb Ethernet connectivity.
Fastest Wi-Fi 6 Access Point
Experience lightning-fast speeds with the DrayTek AX access point, which offers a combined speed of up to 6000Mbps. This device is perfect for businesses that require efficient networks for demanding applications such as video conferencing, gaming, and large file transfers.
Benefits: High-demand network capacity.
Master AP Management
With VigorAP 1062C, you can effortlessly manage up to eight compatible mesh VigorAPs and as many as 50 access points through the easy-to-use Wireless Virtual Controller module. Enjoy the convenience of auto-provisioning and AP monitoring, both readily available upon initial use.
Benefits: Zero Touch Deployment.
High-Density Performance
Easily accommodate high-density environments by linking up to 256 clients with our 802.11ax dual-band antennas and Wi-Fi 6 4x4 Multi-User MIMO technology.
Benefits: Improved network efficiency in dense environments.
Strong WPA3 Connection Encryption
Protect your network with robust wireless security using the latest WPA3-Personal or 802.1x Enterprise. Networks can transition to the new standard with mixed WPA3/WPA2 support and different SSIDs can be set with varying security levels.
Benefits:Â Â Private and secure Wi-Fi network.
2.5 Gigabit Power Over Ethernet
The VigorAP 1062C can be powered through its 2.5Gb Ethernet interface using standard IEEE 802.3at PoE+ for a convenient and neat installation.
Benefits: Easily install the VigorAP in locations without mains power.
Ceiling Mounting

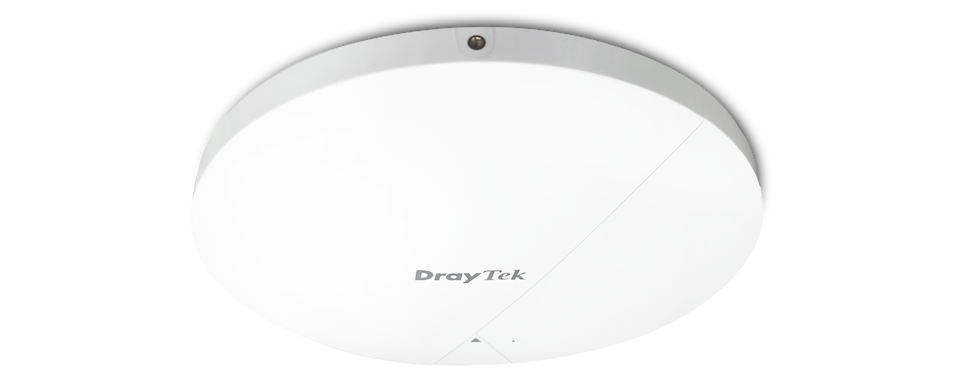

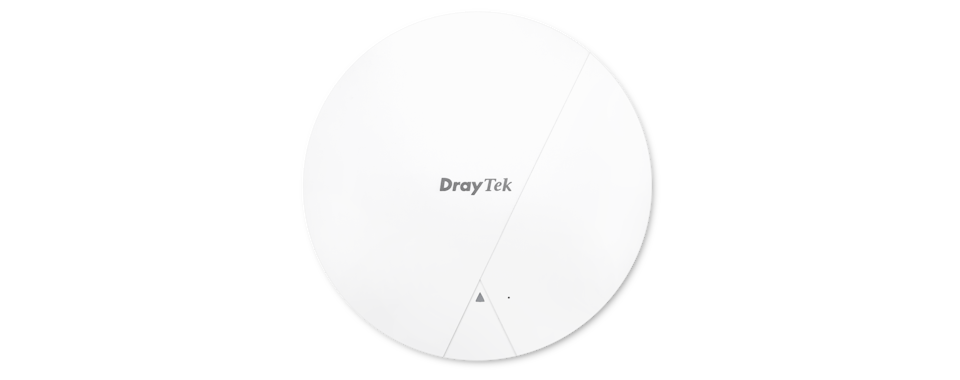

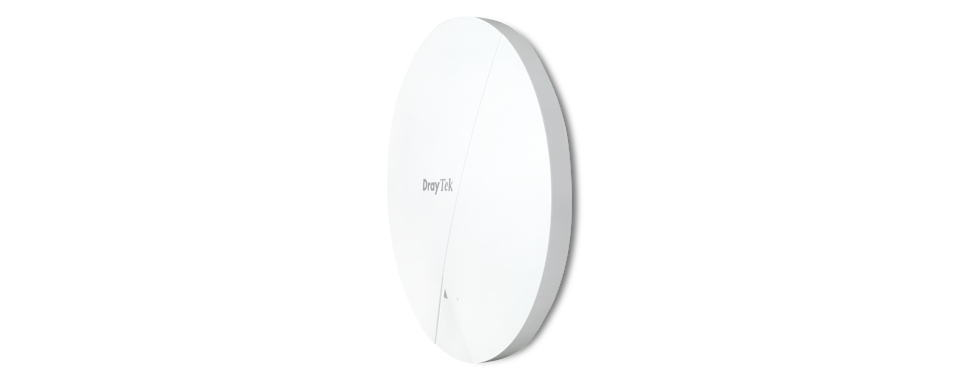

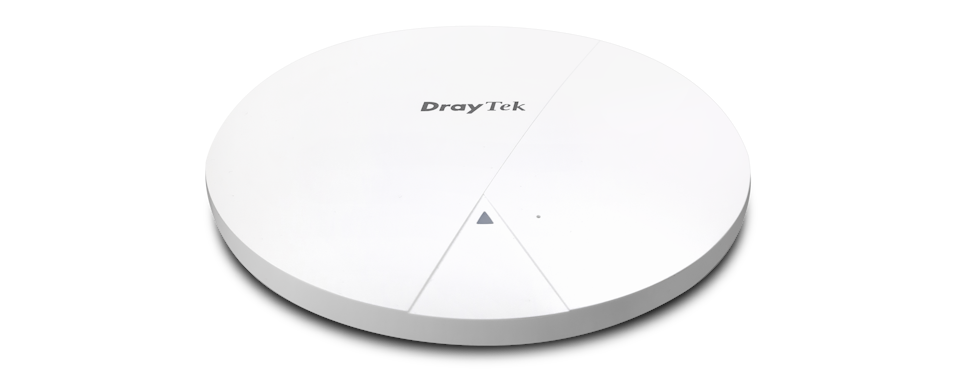

The AP-1062C is a versatile shape that complements both business and home interiors. It can be installed on ceilings or walls and comes with a secure ceiling mounting plate and easy-to-install clips for suspended ceilings.
Benefits: Flexible and discrete installation.
Key Specifications
- WiFi 6 Mesh Ceiling-mount Mesh Wireless Access Point and Range Extender
- AX6000 – 11ax Dual Band Wireless
- WPA3 – Stronger Security with WPA3 Personal & Enterprise
- Power through 802.3at PoE+ or DC Power Adapter
- Multi-SSID over Mesh – Separate Internal and Guest Networks over Mesh*
- 2.5Gb Ethernet Uplink
- Centrally Managed or Standalone Operation
- Root AP for AP Management
Technical Specification (UK Hardware Spec.)

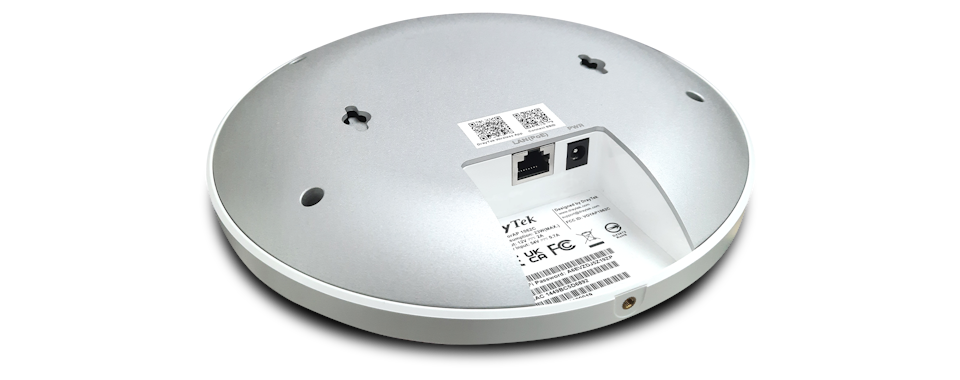

Physical Interfaces/Controls
- 1 x 2.5 Gigabit Ethernet LAN Port (2.5G/1G/100M/10M), RJ45 (accepts PoE+ Power)
- Factory Reset Button (recessed)
- DC Power Socket
Wireless Performance
- AX6000 Class Wireless Access Point
- Max Concurrent Clients: 256
- Max Wireless Networks (SSIDs): 16 total, 8 per band
- 5GHz: Up to 4800Mb/s PHY Rate with 4 Spatial Streams
- 2.4GHz: Up to 1200Mb/s PHY Rate with 4 Spatial Streams
Wireless Antennas
- 4x Internal PiFA 5G Antennas (4.9 dBi)
- 4x Internal PiFA 2.4G Antennas (4.2 dBi)
Wireless LAN Compatibility
- 2.4GHz Standards: IEEE 802.11ax / b / g / n, 4x4 MIMO, up to 1024-QAM
- 5GHz Standards: IEEE 802.11ax / ac Wave 2 / a / n, 4x4 MU-MIMO, up to 1024-QAM
Wireless LAN Features
- WiFi 6
- Dual Band 802.11ax - 2.4 GHz & 5Ghz
- Backwards compatible with 802.11ac, 802.11b, 802.11g, 802.11n
- 2.4GHz Channel Bandwidth: 20 / 40 MHz
- 5GHz Channel Bandwidth: 20 / 40 / 80 / 160 MHz
- 2.4GHz Channels: 1 to 13
- 5GHz Channels: Extended 5Ghz Band - Channels 36-48, 52-64, 100-140
- DFS/TPC Support for 5GHz channels 52 to 140
- OFDMA – Higher Efficiency
- BSS Colouring - Improves Interference Handling
- TX Beamforming
- 1024-QAM
- Multi-User MIMO
Security Features
- Wireless Encryption:
- WPA2: Personal, Enterprise (802.1x)
- WPA3: Personal, Enterprise, OWE
- WPA/WEP for legacy applications
- 802.1x RADIUS Proxy (PEAP / EAP-TLS)
- PMK Caching & Pre-authentication
- Wireless Client Isolation
- Hidden SSIDs (Selectable)
- WPS - WiFi Protected Setup
- MAC Address Filtering (ACL) - Up to 128 entries
- EAPOL Key Retry - Protect unpatched WLAN clients from KRACK
Access Point Modes
- Access Point
- Mesh Root*
- Mesh Node*
- Range Extender
Wireless Control Features
- Wireless Client Status List in WUI
- Up to eight distinct SSIDs (for VLANs) for each frequency band (2.4/5Ghz)
- 802.1q VLAN
- Built-in DHCP Server & DHCP Relay
Wireless Performance Optimisation
- Airtime Fairness
- Band Steering
- WMM (Wireless MultiMedia)
- Fast Roaming 802.11r
Mesh Features*
- Up to 8 APs per Mesh Group
- Up to 3 Mesh Hops per chain with optional Wired Uplinks
- Config Sync
- Self-Healing
- Can be configured & managed with the DrayTek Wireless App
- Mesh Syslog
Diagnostic Features
- Dashboard: Traffic Graph
- System Log
- Traffic Graph
- Wireless LAN Statistics
- Interference Monitor - Built-in Site Surveyor
Management
- Web Interface (HTTP/HTTPS)
- DHCP Client
- TR-069 Control (For VigorACS or other TR-069 platform)
- CLI (Command Line Interface) - Telnet
- Firmware upgrade by TR-069/HTTP
- Central AP Management – Manage Up To 50 VigorAPs
- SNMP v2, v2c, v3
- Management VLAN
- Configuration File Export (with password) & Import
- Wireless Auto On/Off
- Schedule: Wi-Fi Up/Down
Power Requirements
- Maximum Power Consumption: 23 Watt
- DC 12V via external 100-240v AC/DC PSU
- 802.3at PoE+ via LAN port. Requires PoE+ injector or a PoE+ switch such as the VigorSwitch P2100
Environmental & Physical
- Operating Temperature: 0 ° C to 40 ° C
- Operating Humidity: 10% to 90% (Non-condensing)
- Physical Dimensions: 208mm (height) x 208mm (width) x 32.1mm (depth)
- Weight: 813g
- Ceiling or Wall Mountable (requires rear cable entry)
Pack Contents
- VigorAP 1062C wireless access point
- Ceiling Mount Bracket & Fittings Kit
- Quick Start Guide
ROHS, UKCA & CE Compliant
