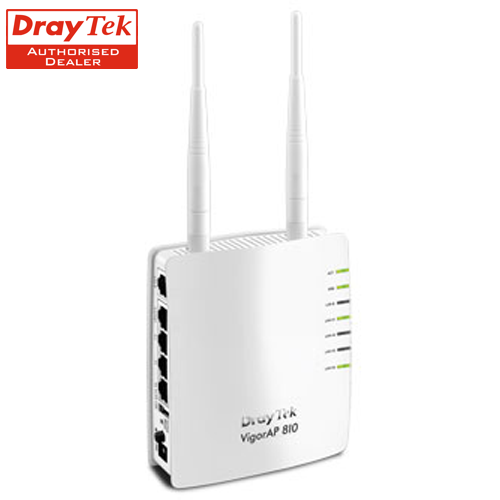

DrayTek VigorAP 810 Professional Access Point | Built-in PoE, Dual-LAN

DrayTek VigorAP 810 Professional Access Point | Built-in PoE, Dual-LAN

Regular price £128.80 GBP
Regular price £128.80 GBP Sale price £128.80 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

DrayTek VigorAP 810 Professional Access Point | Built-in PoE, Dual-LAN

The DrayTek Vigor AP-810 is a standalone wireless access point, ideal for adding wireless connectivity to an existing LAN, or for expanding the range of an existing wireless LAN by using the WDS features. It can also be used as part of the DrayTek managed wireless system.  The AP-810 replaces our popular AP-800 model, adding full compatibility with our managed wireless platform.

  • Business-class 802.11n WLAN access point
  • Manageable by DrayTek Wireless Management
  • Can be powered by supplied PSU or standard 802.3af PoE (Power-over-Ethernet)
  • 2.4GHz Wireless
  • Up to 300Mbps Wireless LAN
  • 5 Ethernet Ports for AP mode or for Wireless Bridging
  • Detachable Antennae - Can be replaced
    with uni-directional or higher-gain
  • Up to four distinct SSIDs (for VLANs)
  • 802.1q VLAN Tagging for each SSID & Management
Product Code EAN Description Notes
AP810-K 4716779076134 Vigor AP-810 (UK/IE)

Technical Specification (UK Hardware Spec.)

  • IEEE 802.11b/g/n
  • Frequency Band 2.4 GHz
  • Wireless Encryption : WPA2 (802.11i) Encryption (WPA/WEP also supported but not recommended)
  • LAN Interfaces : 4 x 10/100BaseT Ethernet (LAN A), 1 x 10/100BaseT Ethernet (LAN B)
  • USB 2.0 Interface - for printer server
  • PoE (Power Over Ethernet - Standard 48v IEEE 802.3af) or mains powered (PSU included)
  • User Authentication : 802.1x (Requires Radius Server) (MD5/PEAP Modes)
  • Radius / WPA User Authentication
  • 802.1x User Authentication
  • Repeater/Bridge/Access Point/Station Modes
  • Wireless Client Status List in WUI
  • Wireless Client Isolation
  • Up to four distinct SSIDs (for VLANs)
  • Dual isolated LAN interfaces (LAN-A & LAN-B)
  • 802.1q VLAN per SSID & Management
  • Management VLAN
  • Bandwidth management per SSID
  • Hidden SSID
  • MAC Address Filtering (ACL)
  • WDS (Wireless Distribution System)
  • WMM (Wireless MultiMedia)
  • Optional USB Thermometer
  • WPS - WiFi Protected Setup
  • Built-in Site Surveyor
  • Built-in DHCP server
  • Wireless Transmit Power : Max 18 1dBm
  • Temperature Operation : 0 ° C to 40 ° C
  • Humidity: 10% to 90 % (Non-condensing)
  • Physical Dimensions: 112 x 132 x 42 ( W x H x D ) mm
  • Weight : 0.255kg (main unit, including Aerials)
  • Wall Mountable
  • Pack Contents : AP810 main unit, two aerials, PSU (220-240VAC), quick start guide, manual on CD-Rom
  • Power : 12VDC via AC/DC PSU (supplied) or 802.3af PoE (PoE switch or injector required)
  • Warranty
    • Two (2) Years RTB
    • Optional VigorCare Enhanced Warranty Available
