DrayTek VigorSwitch G1280 Smart Managed 24 Gigabit Ports & 4 SFP Ports
The VigorSwitch G1280 is a high-performance, Smart Managed Gigabit Ethernet switch. With 24 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router, implementing complex networks with VLANs and adding port-level security with the switch's Access Control List.

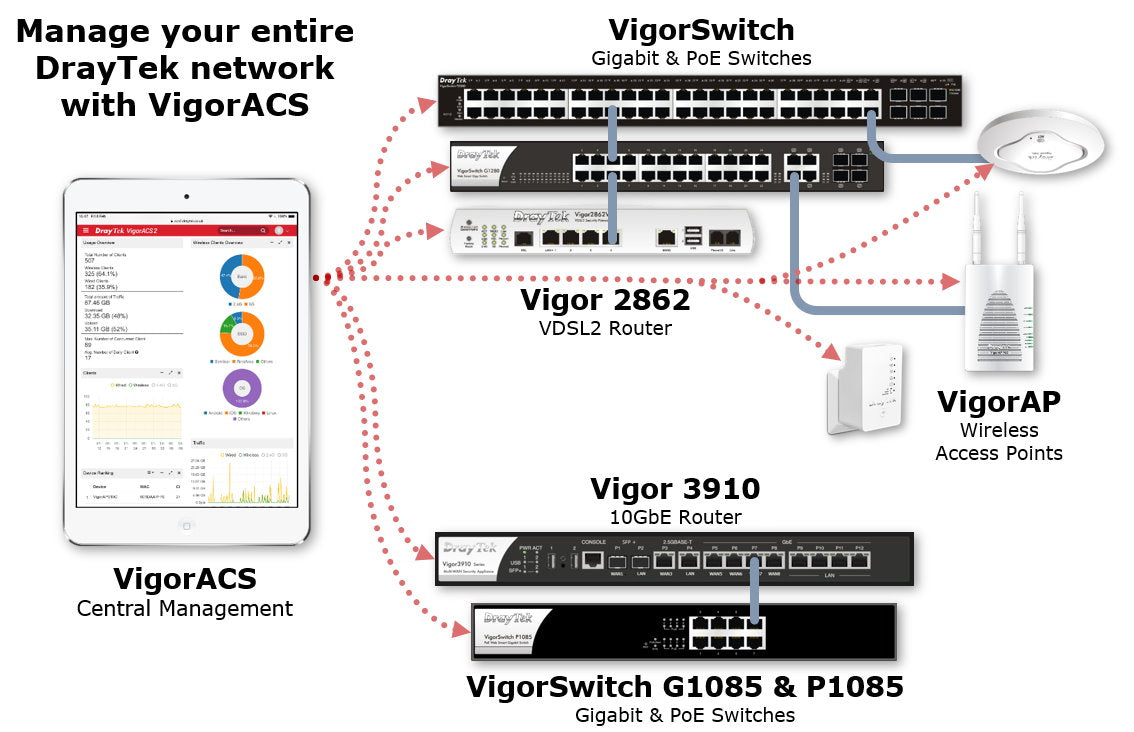

Designed for centralised management, the VigorSwitch G1280 can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system and/or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
| Product Code | EAN | Name | Description |
|---|---|---|---|
| VSG1280-K | 4712909124317 | VigorSwitch G1280 | Smart Managed Gigabit Switch with 24 Gigabit Ports & 4 SFP Ports |
Key Specifications
- 24 x RJ-45 Gigabit Ethernet Ports
- 4 x RJ-45 / SFP Gigabit Ethernet Ports
- Cloud Managed with VigorACS
- 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
- ONVIF IP Camera Surveillance Management with PoE Device Check
- Access Control List (ACL) for port & traffic level security
- Port Mirroring & Link Aggregation
- IGMP Snooping & Querying
- IPv4 and IPv6 Support with IP Conflict Prevention
- Centrally managed or standalone operation
Technical Specification (UK Hardware Spec.)

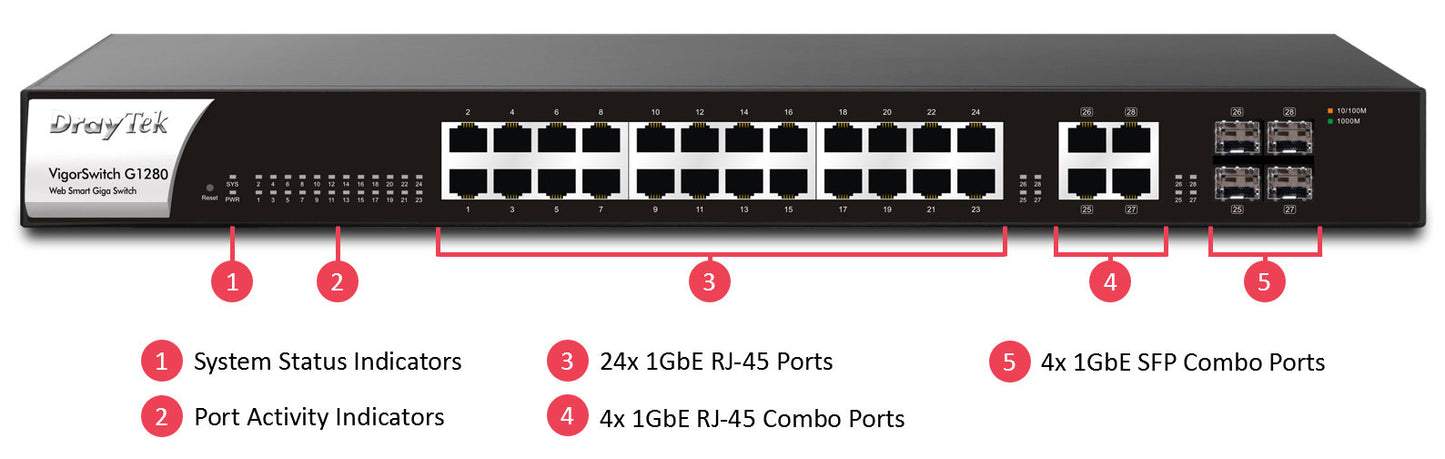

Physical Interfaces
- 24 RJ-45 Ethernet Ports – 10/100/1000Mbps
- Factory Reset Button
- 4 Selectable Ports (Nos. 25-28), use as either:
- 10/100/1000BaseT (Gigabit) Ethernet
- or SFP (1000M) Ports for Uplink / Fibre
VLAN
- 802.1q Tag-based VLAN
- Port-based & MAC-based VLANs
- Up to 255 VLANs (out of 4096 VLAN IDs)
- Voice VLAN (OUI Mode)
- Surveillance VLAN (OUI Mode)
- Management VLAN
- Port Isolation (Protected Ports)
QoS
- Support 8 priority queues
- Port-Based rate control (Ingress & Egress)
- Priority queue schedule (WRR or Strict Priority)
- Rate Limit
- Class of Service
- 802.1p CoS
- DSCP
- CoS-DSCP
- IP Precedence ToS
Network Security
- IP Source Guard with ARP inspection
- IP Conflict Prevention
- Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
- DoS Attack protection
- Protected Port / Port Isolation
- Static Port Security
- Loop Detection & Prevention
- Access Control Lists (ACL)
- Up to 512 ACL Entries
- Source and destination MAC
- VLAN ID
- IPv4/v6 address
- Protocol
- TCP/UDP port
Spanning Tree
- Spanning Tree Protocol (STP)
- Rapid Spanning Tree Protocol (RSTP)
Link Aggregation
- Combine multiple ports to increase bandwidth
- 8 Aggregation Groups
- Up to 8 ports in each group
- LACP or Static setup
- Supports traffic load balancing
Networking Performance
- Switching Capacity: 56Gbps
- Forwarding Rate: 41.7Mpps (64 bytes)
- Jumbo Frames up to 9KB
- Packet Buffer size: 4.1Mbit
- MAC Address Table: 8000 entries
Multicast
- Up to 256 multicast groups
- Multicast Group Filtering / Throttling
- IGMP Snooping V2/V3 (BISS)
- IGMP V2/V3 Querier
- Multicast VLAN registration
ONVIF Surveillance Management
- Discovery of ONVIF-compliant IP Cameras
- Surveillance Topology
- Real-Time Video Streaming
- ONVIF Device Maintenance
- Device Information
- Network Settings Configuration
- Time Settings
- Reboot
- Reset to Factory Default Settings
- Ping Check with Mail Alert on disconnection
Management
- Central Management
- VigorACS
- VigorConnect
- Vigor Router Switch Management
(requires router firmware support)
- IPv4 & IPv6 Dual-Stack
- Web User Interface
- Firmware Upgrade/Backup
- Configuration Backup/Restore
- Factory Default
- System Reboot
- 2-level Admin Privileges
- Multiple Admin Accounts
- Command Line Interface (CLI) via SSH/Telnet
- OpenVPN Client with Certificate-based auth
- SNMP v1, v2c, v3 (with Generic Traps)
- SNTP (Simple Network Time Protocol)
- LLDP(802.1ab) + MED
Diagnostics
- Port Status & Usage display
- CPU/RAM Usage display
- MAC Address Table
- Device Check
- Syslog
- Mail Alert
- Port Status
- Port Speed Change
- System Restart
- Device Check
- IP Conflict
- ONVIF IP Camera Snapshot
- Port Mirroring
- Ping Diagnostics
- Port-based Cable Test
IPv4 Features
- DHCP Client
- DNS Client
IPv6 Features
- Auto Configuration
- Static IPv6 Address & Prefix Length
- Static IPv6 Default Gateway
- IPv6 Neighbour Discovery (ND)
- IPv6 Duplicate Address Detection
- ICMPv6
- DHCPv6 Client
General IEEE Standards Compliance
- 802.3 10Base-T
- 802.3u 100Base-T
- 802.3ab 1000Base-T
- 802.3x Flow Control
- 802.3 Auto-Negotiation
- 802.1q Tag-based VLAN
- 802.1p Class of Service
- 802.1d STP
- 802.1w RSTP
- 802.3ad LACP
- 802.1AB LLDP
- 802.3az EEE
Operating Requirements
- Power Input Requirements: 100-240VAC
- Power supply: Internal
- Maximum Input Power Consumption: 17.8 Watts
- Cooling: Passively cooled, no fan
- Operating Temperature: 0 °C to 45 °C
- Storage Temperature: -20 °C to 70 °C
- Operating Humidity: 5% to 90% RH (non-condensing)
Physical Specifications
- Dimensions: 441 x 197 x 45 mm (W x D x H)
- Rack mountable: 1U
- Weight: 2.58Kg
Box Contents
- VigorSwitch G1280 Network Switch
- UK IEC13 Power Cable
- 1U Rack Mount Fittings
- Quick Start Guide
ROHS & CE Compliant
