SKU: JL256A#ACC
Barcode: 5054444037677
In stock: 3
HPE
HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch | JL256A#ACC
HPE Partner
HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch | JL256A#ACC
Couldn't load pickup availability
Complete your setup
In Touch Telecoms โ HPE Business Partner
HPE Aruba Networking 2930F 48G PoE+ 4SFP+ SwitchManufacturer P/N and ITTL SKU: JL256A#ACCEAN: 5054444037677 Full Product Specification Product descriptionHPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch provides 48 x 10/100/1000 (PoE+) +...
Full product details and specifications

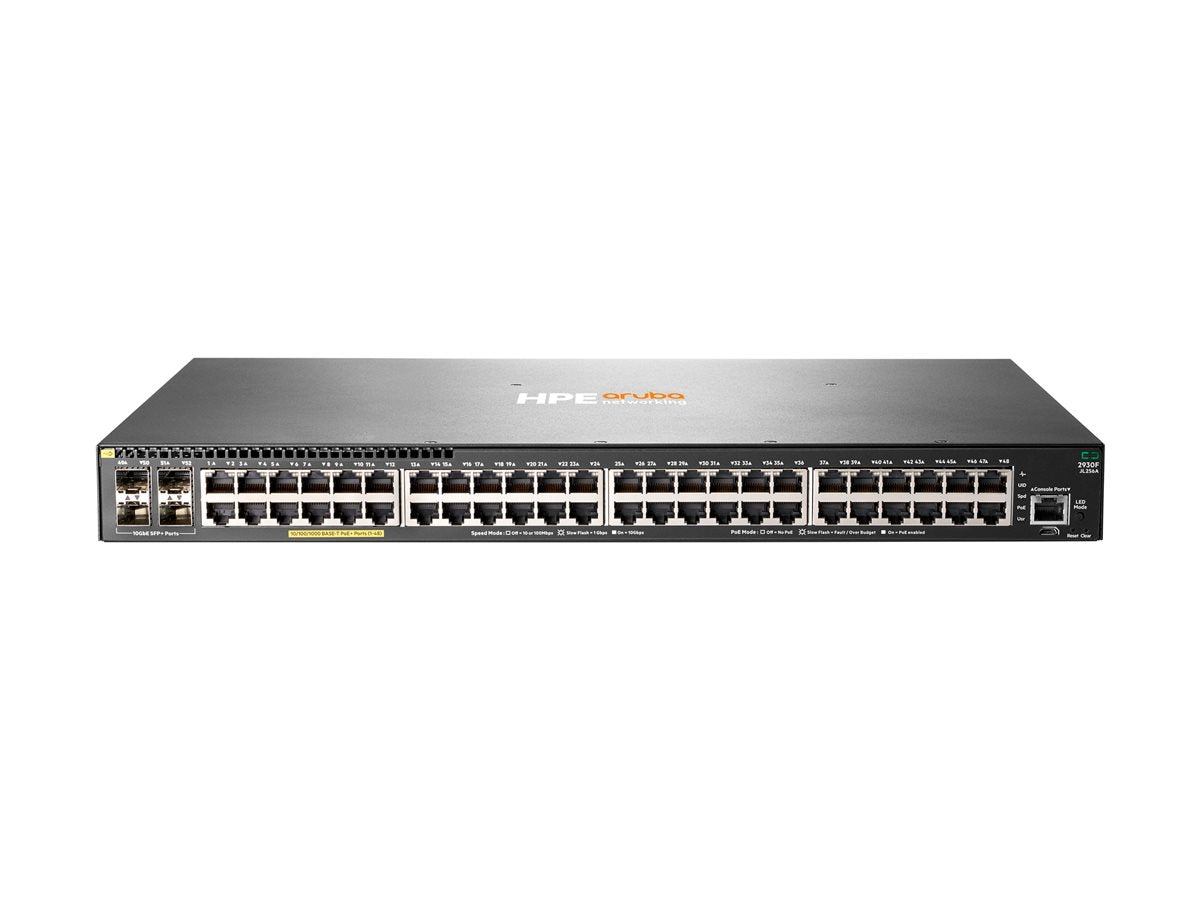

HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch
Manufacturer P/N and ITTL SKU: JL256A#ACC
EAN: 5054444037677
Product description
HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch provides 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink). Its 370 W PoE budget supports compatible powered devices. Review the management and performance details below and contact In Touch Telecoms for network design or quantity quotations.
Product features
- Ports: 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE): PoE+
- PoE Budget: 370 W
- Performance: Throughput: 112 Mpps ยฆ Switching capacity: 176 Gbps ยฆ Latency (1 Gbps): 3.8 ยตs ยฆ Latency (10 Gbps): 1.6 ยตs
- Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Main specifications
| Product Description | HPE Aruba 2930F 48G PoE+ 4SFP+ - switch - 48 ports - Managed - rack-mountable |
|---|---|
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Throughput: 112 Mpps ยฆ Switching capacity: 176 Gbps ยฆ Latency (1 Gbps): 3.8 ยตs ยฆ Latency (10 Gbps): 1.6 ยตs |
| Capacity | Jumbo frame size: 9220 ยฆ IPv4 routing table entries: 10000 ยฆ IPv6 routing table entries: 5000 |
| MAC Address Table Size | 32K entries |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON |
| Features | Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, STP support, MSTP support, ACL support, QoS, Jumbo Frames support, DHCP server, STP Root Guard, UDLD, LLDP support, LACP, MIB, MAC address lockout, dynamic ARP protection, DHCP protection, GVRP, MVRP, NDP, CoS, ToS, OpenFlow support, CPU protection, ICMP, ICMP IRDP, VXLAN, MIB II |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 44.25 cm x 30.42 cm x 4.39 cm |
| Weight | 4.46 kg |
| Localisation | English / United Kingdom |
| Manufacturer Warranty | Limited lifetime warranty |
ย
Extended specification
General
| Flash Memory | 4 GB |
|---|---|
| Subtype | Gigabit Ethernet |
| MAC Address Table Size | 32K entries |
| Authentication Method | RADIUS, PAP, CHAP, TACACS, TACACS+ |
| Encryption Algorithm | MD5, SSL |
| PoE Budget | 370 W |
| Enclosure Type | Rack-mountable 1U |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 1 GB DDR3 SDRAM |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Capacity | Jumbo frame size: 9220 / IPv4 routing table entries: 10000 / IPv6 routing table entries: 5000 |
| Performance | Throughput: 112 Mpps / Switching capacity: 176 Gbps / Latency (1 Gbps): 3.8 ยตs / Latency (10 Gbps): 1.6 ยตs |
| Processor | 1 x ARM Cortex-A9: 1.016 GHz |
| Features | Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, STP support, MSTP support, ACL support, QoS, Jumbo Frames support, DHCP server, STP Root Guard, UDLD, LLDP support, LACP, MIB, MAC address lockout, dynamic ARP protection, DHCP protection, GVRP, MVRP, NDP, CoS, ToS, OpenFlow support, CPU protection, ICMP, ICMP IRDP, VXLAN, MIB II |
Expansion / Connectivity
| Installed Modules Qty (Max) | 0 (installed) / 4 (max) |
|---|---|
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ / 4 x Gigabit / 10Gbit LAN SFP+ / 1 x serial (console) |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
|---|
Miscellaneous
| Localisation | English / United Kingdom |
|---|---|
| Included Accessories | Mounting screws, 4 mounting ears, 4 bumper feet, cable tie |
| Compliant Standards | CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
Power
| Installed Qty | 1 |
|---|---|
| Voltage Required | AC 120/230 V |
| 80 PLUS Certification | 80 PLUS Silver |
| Power Device | Internal power supply |
Software / System Requirements
| Software Included | Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center |
|---|
Environmental Parameters
| Min Operating Temperature | 0 ยฐC |
|---|---|
| Max Operating Temperature | 45 ยฐC |
| Max Storage Temperature | 70 ยฐC |
| Min Storage Temperature | -40 ยฐC |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 90% (non-condensing) |
Dimensions & Weight
| Height | 4.39 cm |
|---|---|
| Width | 44.25 cm |
| Weight | 4.46 kg |
| Depth | 30.42 cm |
