HPE Aruba Networking CX 6200F 48G 4SFP+ SwitchManufacturer P/N and ITTL SKU: JL726B#ACCEAN: 190017638447 Full Product Specification Product descriptionHPE Aruba Networking CX 6200F 48G 4SFP+ Switch provides 48 x 10/100/1000 + 4...
Full product details and specifications

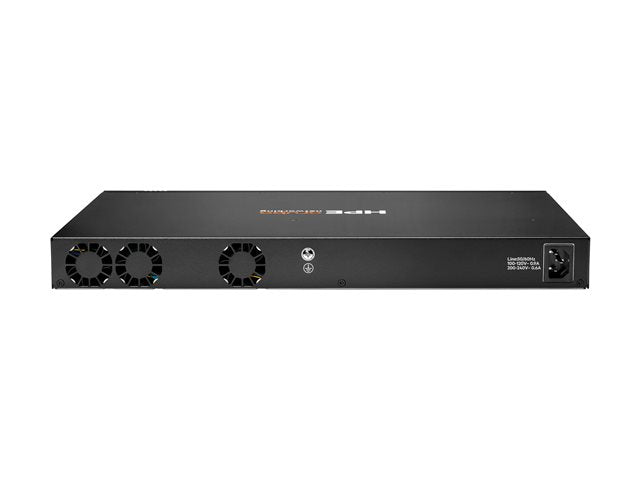

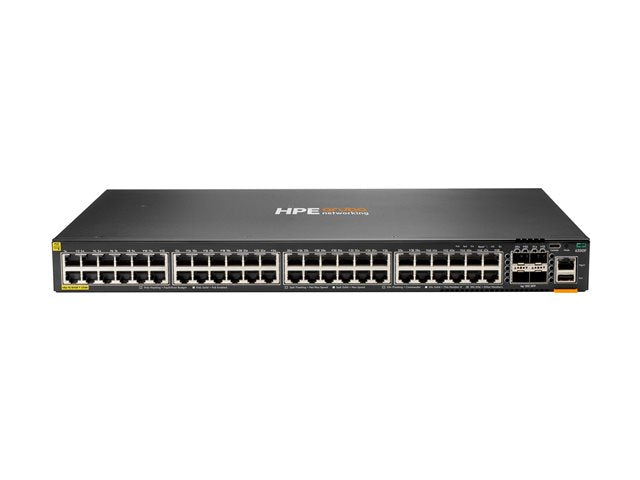

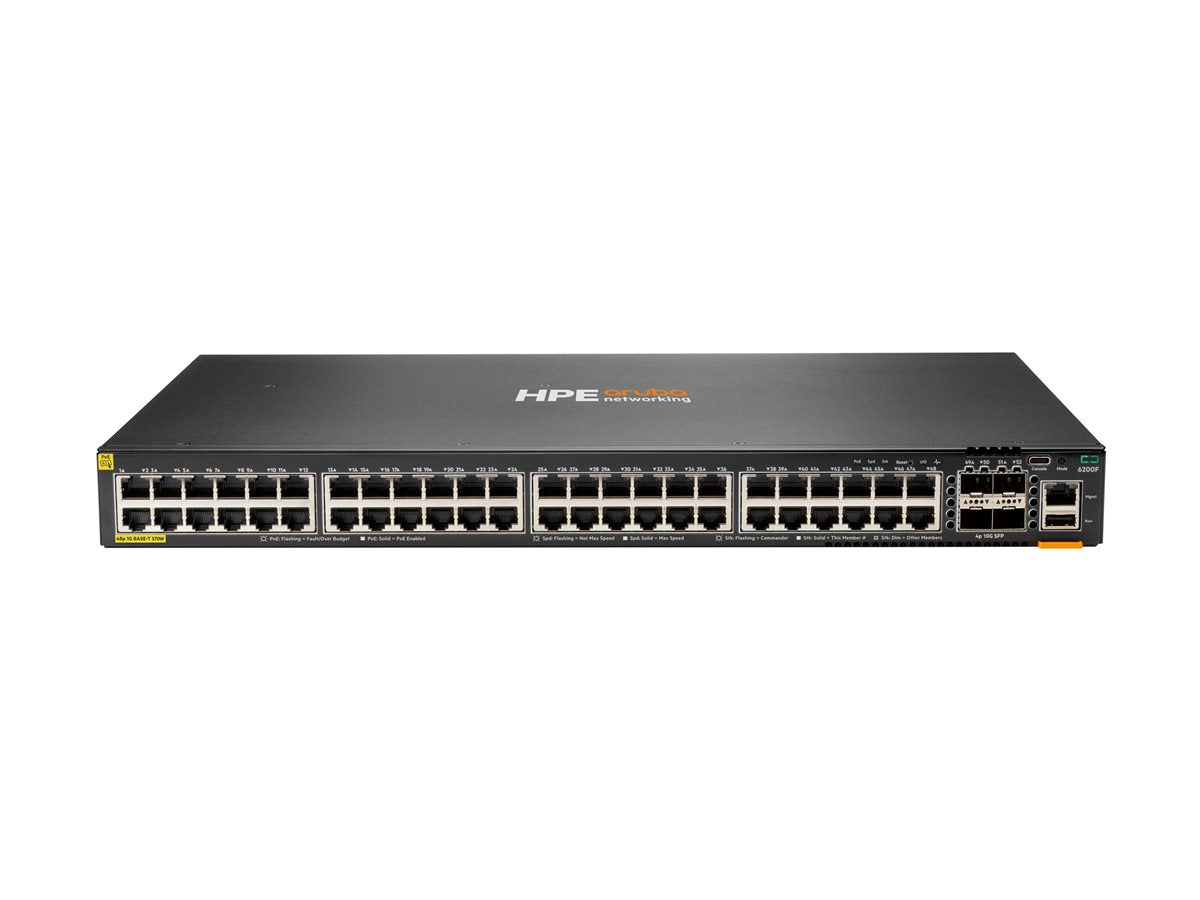

HPE Aruba Networking CX 6200F 48G 4SFP+ Switch
Manufacturer P/N and ITTL SKU: JL726B#ACC
EAN: 190017638447
Product description
HPE Aruba Networking CX 6200F 48G 4SFP+ Switch provides 48 x 10/100/1000 + 4 x 100/1000/10G SFP+. Review the management and performance details below and contact In Touch Telecoms for network design or quantity quotations.
Product features
- Ports: 48 x 10/100/1000 + 4 x 100/1000/10G SFP+
- Performance: Switching capacity: 176 Gbps ยฆ Throughput: 130.9 Mpps ยฆ Latency (1 Gbps): 2.28 ยตs ยฆ Latency (10 Gbps): 1.46 ยตs
- Remote Management Protocol: CLI, MIB, RMON
Main specifications
| Product Description | HPE Aruba Networking CX 6200F 48G 4SFP+ Switch - switch - 48 ports - Managed - rack-mountable |
|---|---|
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 100/1000/10G SFP+ |
| Performance | Switching capacity: 176 Gbps ยฆ Throughput: 130.9 Mpps ยฆ Latency (1 Gbps): 2.28 ยตs ยฆ Latency (10 Gbps): 1.46 ยตs |
| Capacity | Packet buffer size: 8 MB |
| MAC Address Table Size | 32768 entries |
| Jumbo Frame Support | 9220 bytes |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, RIP-2, OSPFv2, OSPFv3, MLD, MLDv2 |
| Remote Management Protocol | CLI, MIB, RMON |
| Features | UTM, UDLD, VRRP support, DWRR, CoS, ToS, EQS, RPVST+, BPDU, Address Resolution Protocol, LLDP, TPM |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w |
| Power | AC 100-120/200-240 V |
| Dimensions (WxDxH) | 44.25 cm x 28.45 cm x 4.37 cm |
| Weight | 3.9 kg |
| System Requirements | AOS-CX |
| Localisation | English / United Kingdom |
| Manufacturer Warranty | Limited lifetime warranty |
ย
Extended specification
General
| Max Units In A Stack | 8 |
|---|---|
| Subtype | Gigabit Ethernet |
| Flash Memory | 16 GB |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Jumbo Frame Support | 9220 bytes |
| RAM | 8 GB DDR4 SDRAM |
| MAC Address Table Size | 32768 entries |
| Processor | 1 x ARM Cortex-A72: 1.8 GHz |
| Performance | Switching capacity: 176 Gbps / Throughput: 130.9 Mpps / Latency (1 Gbps): 2.28 ยตs / Latency (10 Gbps): 1.46 ยตs |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Encryption Algorithm | FIPS 140-2, SSL |
| Capacity | Packet buffer size: 8 MB |
| Ports | 48 x 10/100/1000 + 4 x 100/1000/10G SFP+ |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Secure Shell (SSH) |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, RIP-2, OSPFv2, OSPFv3, MLD, MLDv2 |
| Remote Management Protocol | CLI, MIB, RMON |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w |
| Features | UTM, UDLD, VRRP support, DWRR, CoS, ToS, EQS, RPVST+, BPDU, Address Resolution Protocol, LLDP, TPM |
Expansion / Connectivity
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 / 4 x 100/1000/10G SFP+ uplink/stacking / 1 x USB-C console / 1 x console RJ-45 / 1 x management / 1 x USB Type A host |
|---|
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
|---|
Miscellaneous
| Localisation | English / United Kingdom |
|---|---|
| Included Accessories | 2-Post Rack Kit |
Power
| Voltage Required | AC 100-120/200-240 V |
|---|---|
| Power Device | Internal power supply |
Software / System Requirements
| OS Required | AOS-CX |
|---|
Environmental Parameters
| Min Operating Temperature | 0 ยฐC |
|---|---|
| Max Operating Temperature | 45 ยฐC |
| Max Storage Temperature | 70 ยฐC |
| Min Storage Temperature | -40 ยฐC |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Dimensions & Weight
| Weight | 3.9 kg |
|---|---|
| Height | 4.37 cm |
| Depth | 28.45 cm |
| Width | 44.25 cm |
