SKU: S6X71A#ACC
Barcode: 190017823669
In stock: 18
HPE
HPE Networking CW 2050 48p 10/100/1000BASE-T PoE+ 4p SFP 1G/2.5G 410W Switch | S6X71A#ACC
HPE Partner
HPE Networking CW 2050 48p 10/100/1000BASE-T PoE+ 4p SFP 1G/2.5G 410W Switch | S6X71A#ACC
Couldn't load pickup availability
Complete your setup
In Touch Telecoms โ HPE Business Partner
HPE Networking CW 2050 48p 10/100/1000BASE-T PoE+ 4p SFP 1G/2.5G 410W SwitchManufacturer P/N and ITTL SKU: S6X71A#ACCEAN: 190017823669 Full Product Specification Product descriptionHPE Networking CW 2050 48p 10/100/1000BASE-T PoE+ 4p SFP 1G/2.5G...
Full product details and specifications

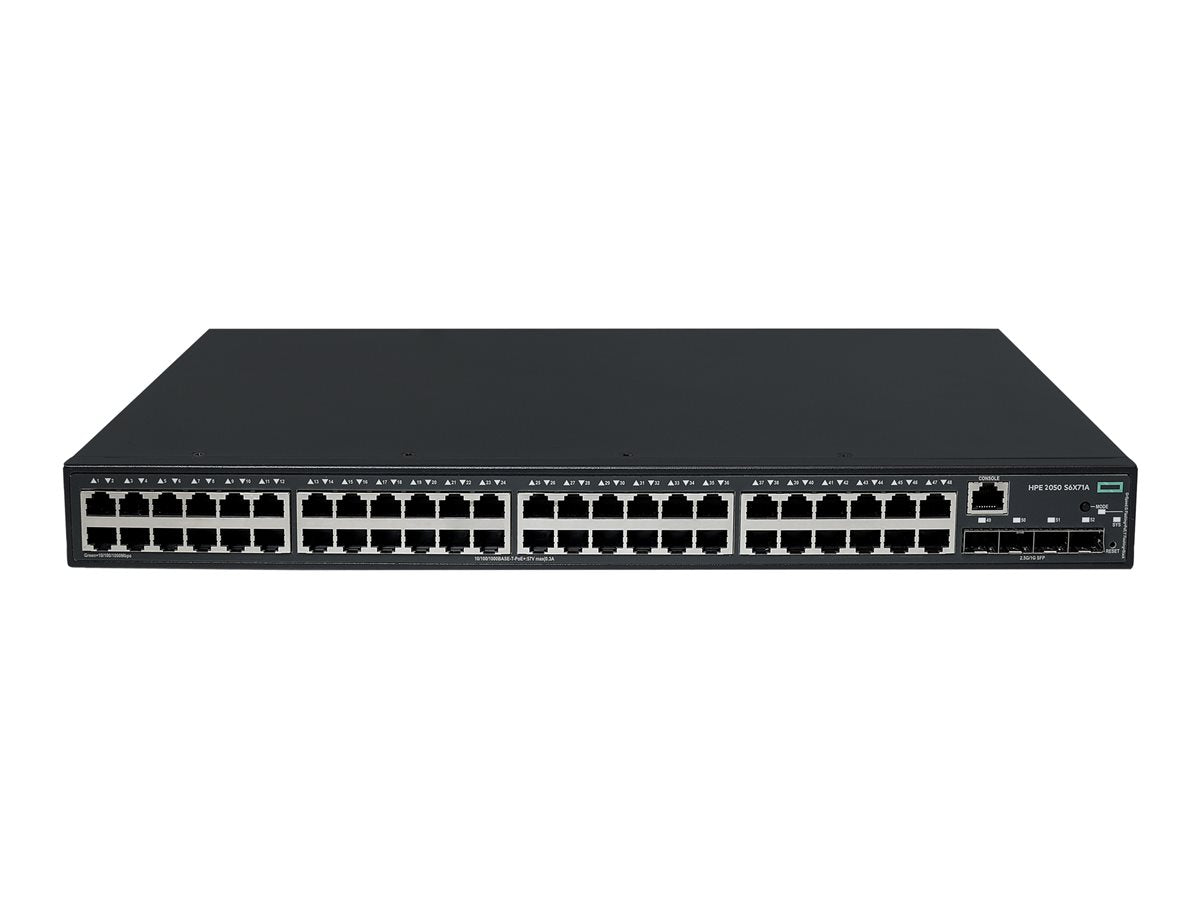

HPE Networking CW 2050 48p 10/100/1000BASE-T PoE+ 4p SFP 1G/2.5G 410W Switch
Manufacturer P/N and ITTL SKU: S6X71A#ACC
EAN: 190017823669
Product description
HPE Networking CW 2050 48p 10/100/1000BASE-T PoE+ 4p SFP 1G/2.5G 410W Switch provides 48 x 10/100/1000Base-T (PoE+) + 4 x 1/2.5GBase-X (uplink / stacking). Its 410 W PoE budget supports compatible powered devices. Review the management and performance details below and contact In Touch Telecoms for network design or quantity quotations.
Product features
- Ports: 48 x 10/100/1000Base-T (PoE+) + 4 x 1/2.5GBase-X (uplink / stacking)
- Power Over Ethernet (PoE): PoE+
- PoE Budget: 410 W
- Performance: Forwarding capacity: 116 Gbps ยฆ Throughput: 86.3 Mpps ยฆ Latency (1 Gbps): < 5 ยตs ยฆ Latency (10 Gbps): < 3 ยตs
- Remote Management Protocol: SNMP 3, CLI
Main specifications
| Product Description | HPE Networking Comware 2050 48p 10/100/1000BASE-T PoE+ 4p SFP 1G/2.5G 410W - switch - 48 ports - Managed - rack-mountable |
|---|---|
| Device Type | Switch - 48 ports - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000Base-T (PoE+) + 4 x 1/2.5GBase-X (uplink / stacking) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 410 W |
| Performance | Forwarding capacity: 116 Gbps ยฆ Throughput: 86.3 Mpps ยฆ Latency (1 Gbps): < 5 ยตs ยฆ Latency (10 Gbps): < 3 ยตs |
| Capacity | Switched virtual interfaces (SVIs) (dual stack): 16 ยฆ IPv4 routes: 64 ยฆ IPv4 host table (ARP): 512 ยฆ IPv6 routes: 64 ยฆ IPv6 host table (ND): 256 ยฆ IGMP snooping groups: 62 ยฆ MLD snooping groups: 62 ยฆ ACL entries (ingress/egress): 512 ยฆ Packet buffer size: 1 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9000 bytes |
| Remote Management Protocol | SNMP 3, CLI |
| Features | 2 fans, IPv6 support, sFlow, port mirroring, IGMP snooping, PIM snooping, MLD, MVR, IPv4 and IPv6 dual stack, IRF Technology, PoE Class 4, Advanced Quality of Service (QoS), 6 KV surge protection, Auto-MDI/MDIX support, DLDP support |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1x, IEEE 802.1Q, IEEE 802.3at |
| Power | AC 90-290 V (50/60 Hz) |
| Dimensions (WxDxH) | 44 cm x 26 cm x 4.4 cm |
| Weight | 4 kg |
| Localisation | English / United Kingdom |
| Manufacturer Warranty | Limited lifetime warranty |
ย
Extended specification
General
| Max Units In A Stack | 2 |
|---|---|
| Flash Memory | 256 MB |
| Subtype | Gigabit Ethernet |
| MAC Address Table Size | 16K entries |
| RAM | 1 GB SDRAM |
| Encryption Algorithm | SSL, TLS |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| PoE Budget | 410 W |
| Enclosure Type | Rack-mountable 1U |
| Power Over Ethernet (PoE) | PoE+ |
| Device Type | Switch - 48 ports - Managed - stackable |
| Remote Management Protocol | SNMP 3, CLI |
| Jumbo Frame Support | 9000 bytes |
| Processor | 1 x ARM: 1.25 GHz |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1x, IEEE 802.1Q, IEEE 802.3at |
| Ports | 48 x 10/100/1000Base-T (PoE+) + 4 x 1/2.5GBase-X (uplink / stacking) |
| Performance | Forwarding capacity: 116 Gbps / Throughput: 86.3 Mpps / Latency (1 Gbps): < 5 ยตs / Latency (10 Gbps): < 3 ยตs |
| Capacity | Switched virtual interfaces (SVIs) (dual stack): 16 / IPv4 routes: 64 / IPv4 host table (ARP): 512 / IPv6 routes: 64 / IPv6 host table (ND): 256 / IGMP snooping groups: 62 / MLD snooping groups: 62 / ACL entries (ingress/egress): 512 / Packet buffer size: 1 MB |
| Features | 2 fans, IPv6 support, sFlow, port mirroring, IGMP snooping, PIM snooping, MLD, MVR, IPv4 and IPv6 dual stack, IRF Technology, PoE Class 4, Advanced Quality of Service (QoS), 6 KV surge protection, Auto-MDI/MDIX support, DLDP support |
Expansion / Connectivity
| Interfaces | 48 x 10/100/1000Base-T RJ-45 PoE+ / 4 x 1/2.5GBase-X SFP uplink/stacking / 1 x console RJ-45 / 1 x management out-of-band network management |
|---|
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
|---|
Miscellaneous
| Rack Mounting Kit | Included |
|---|---|
| Localisation | English / United Kingdom |
Power
| Power Device | Internal power supply |
|---|---|
| Voltage Required | AC 90-290 V (50/60 Hz) |
| Power Consumption Operational | 25 watt |
| Power Consumption Stand by | 18 watt |
Software / System Requirements
| Software Included | HPE Intelligent Management Center |
|---|
Environmental Parameters
| Min Operating Temperature | -5 ยฐC |
|---|---|
| Max Operating Temperature | 45 ยฐC |
| Max Storage Temperature | 70 ยฐC |
| Min Storage Temperature | -40 ยฐC |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Dimensions & Weight
| Depth | 26 cm |
|---|---|
| Width | 44 cm |
| Height | 4.4 cm |
| Weight | 4 kg |
Need a different configuration or a larger quantity? Use the quotation form below to discuss suitable options with In Touch Telecoms.
