HPE Networking Instant On 1830 24G 2SFP Switch | JL812A#ACC
HPE Networking Instant On 1830 24G 2SFP Switch | JL812A#ACC
Couldn't load pickup availability
In Touch Telecoms — HPE Business Partner
HPE Networking Instant On Switch 24p Gigabit 2p SFP 1830
Manufacturer P/N: JL812A#ACC
ITTL SKU: JL812A#ACC
Smart-managed, fanless Gigabit Ethernet switch for small business networks.
Shipping weight: 3.76 kg.

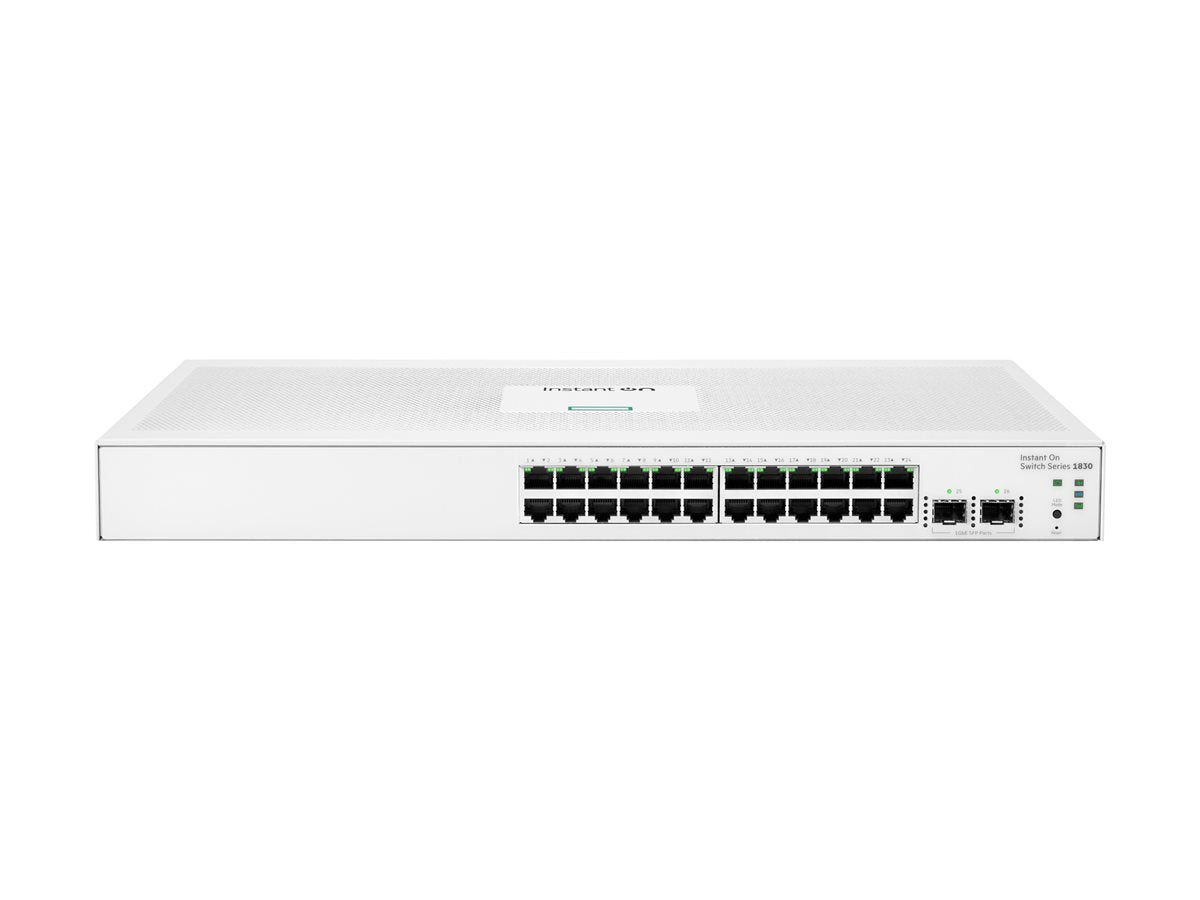

- 24 Gigabit Ethernet RJ-45 ports plus two Gigabit SFP uplinks
- 52 Gbps switching capacity and 38.68 Mpps throughput
- Fanless design for quiet operation
- Cloud management or local web interface
- Non-PoE model with Energy Efficient Ethernet support
Full Product Specification · Request a built-to-specification option
Product description
The HPE Networking Instant On 1830 JL812A switch provides 24 Gigabit Ethernet ports and two dedicated Gigabit SFP uplinks for small business networks. It offers smart-managed Layer 2 switching, with VLANs and quality-of-service features to help organise traffic and prioritise business applications. This is the non-PoE model and does not supply power to connected devices.
Choose Instant On cloud management through the mobile app and web portal, or manage the switch using its local web interface. The fanless enclosure operates quietly, making it suitable for offices and other environments where equipment noise matters. Energy Efficient Ethernet helps reduce energy use during low traffic periods.
Use the built-to-specification enquiry form below to discuss switch quantities, compatible SFP transceivers, cabling and support. This is a fixed-configuration switch; optional accessories and services are quoted separately and are not automatically included.
Product features
Robust performance
An 800 MHz ARM processor, 512 MB SDRAM and 52 Gbps switching capacity support reliable data handling, with throughput of 38.68 Mpps.
Enhanced connectivity
24 auto-sensing 10/100/1000 RJ-45 ports connect local devices, while two Gigabit SFP slots provide fibre uplink options. Compatible transceivers are optional.
Advanced security
A Trusted Platform Module protects cryptographic keys used for cloud connectivity. VLANs, denial-of-service protection and storm control help protect network traffic.
Energy efficient
Energy Efficient Ethernet and a fanless enclosure help limit power use and eliminate fan noise. TD lists operational power consumption of 19.1 W.
Comprehensive network management
Manage the network using Instant On cloud management or the local web interface, with protocols including SNMP, HTTP and HTTPS. Available functions depend on the selected management mode.
Main specifications
| Product | HPE Networking Instant On 1830 24G 2SFP Switch |
|---|---|
| Manufacturer P/N | JL812A#ACC |
| ITTL SKU | JL812A#ACC |
| EAN | 190017523842 |
| Device type | Smart-managed Layer 2 Gigabit Ethernet switch |
| Ports | 24 × 10/100/1000 RJ-45; 2 × Gigabit SFP |
| PoE | No |
| Switching capacity | 52 Gbps |
| Throughput | 38.68 Mpps |
| Form factor | Desktop or rack-mountable, 1U |
| Manufacturer warranty | Limited lifetime warranty |
Extended specification
General
| Processor | 1 × ARM, 800 MHz |
|---|---|
| RAM | 512 MB SDRAM |
| Flash memory | 256 MB |
| Packet buffer | 1.5 MB |
| MAC address table | 16,000 entries |
| Jumbo frames | 9,216 bytes |
| Localisation | English / United Kingdom |
Performance and network management
| Latency | 100 Mbps: 5.2 µs; 1 Gbps: 2.8 µs |
|---|---|
| Management options | Instant On cloud management or local web interface |
| Management protocols | HTTP, HTTPS, ICMP, SNMP v1/v2c, SCP and TFTP |
| Network features | VLAN, QoS, CoS, link aggregation, LLDP, port mirroring, STP, IGMP snooping, loop protection, global storm control and DHCP client |
| Diagnostics and maintenance | Cable diagnostics, event log, Syslog, dual image support and firmware upgrades |
| Security | Trusted Platform Module and denial-of-service protection |
| Ethernet features | Auto-negotiation, flow control, auto MDI/MDI-X and IEEE 802.3az Energy Efficient Ethernet |
Connectivity and installation
| Gigabit copper ports | 24 × RJ-45 |
|---|---|
| Gigabit fibre uplinks | 2 × SFP slots |
| Installation | Desktop, rack or wall mounting |
| Cooling | Fanless |
| Indicators | Port status, link/activity, speed and duplex mode |
Power and environment
| Power supply | Internal AC supply, 100–240 V, 50/60 Hz |
|---|---|
| Operational power consumption | 19.1 W (supplier specification) |
| Operating temperature | 0–40 °C |
| Storage temperature | −40–70 °C |
| Operating and storage humidity | 15–95%, non-condensing |
Dimensions and weight
| Dimensions (W × D × H) | 44.3 × 21.59 × 4.39 cm |
|---|---|
| Product weight | 2.49 kg |
| Shipping weight | 3.76 kg |
Manufacturer warranty and support
| Warranty | Limited lifetime warranty, subject to manufacturer terms |
|---|---|
| Live chat support | Lifetime, as listed by supplier |
| Phone support | 90 days from purchase, as listed by supplier |
