SKU: JL813A#ACC
Barcode: 190017523798
In stock: 38
HPE
HPE Networking Instant On Switch 24p Gigabit CL4 PoE 2p SFP 195W 1830 | JL813A#ACC
HPE Networking Instant On Switch 24p Gigabit CL4 PoE 2p SFP 195W 1830 | JL813A#ACC
Couldn't load pickup availability
In Touch Telecoms — HPE Business Partner

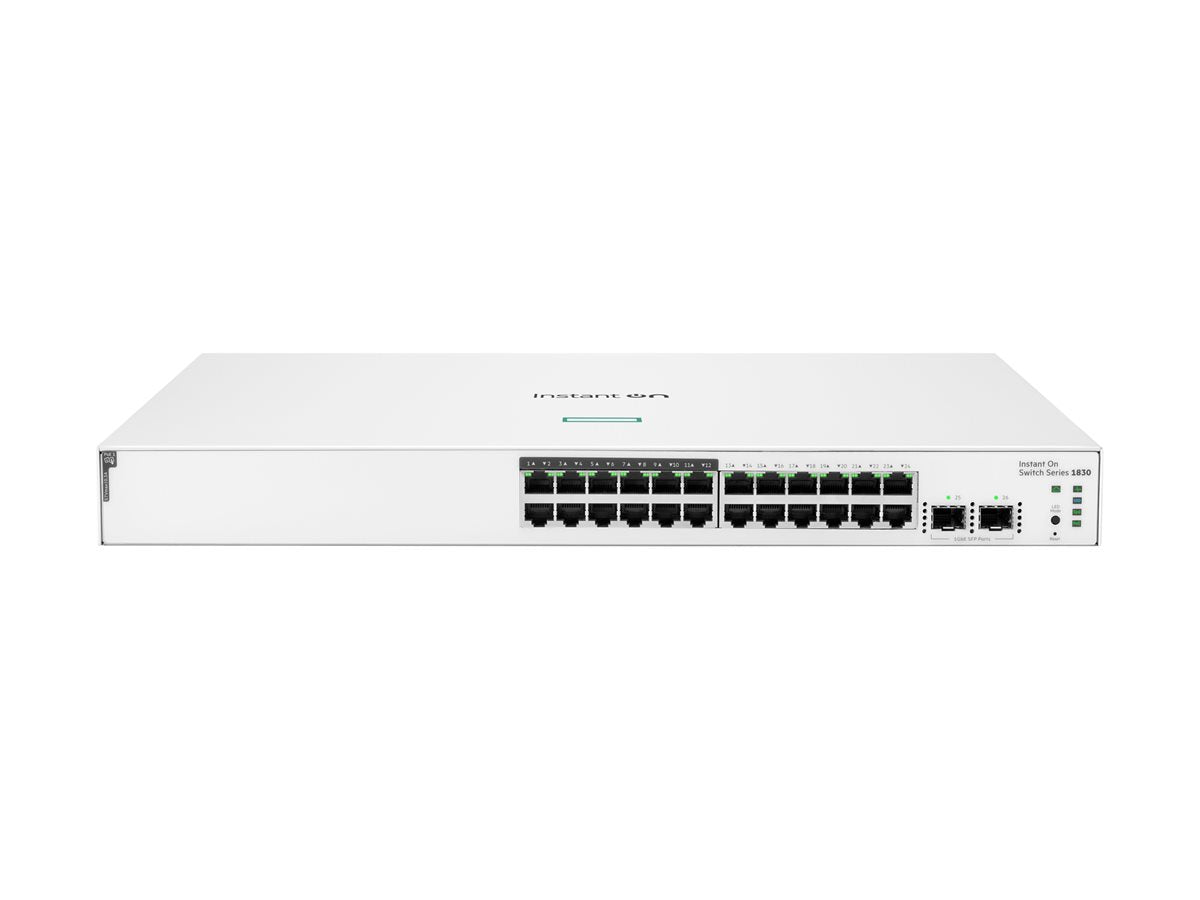

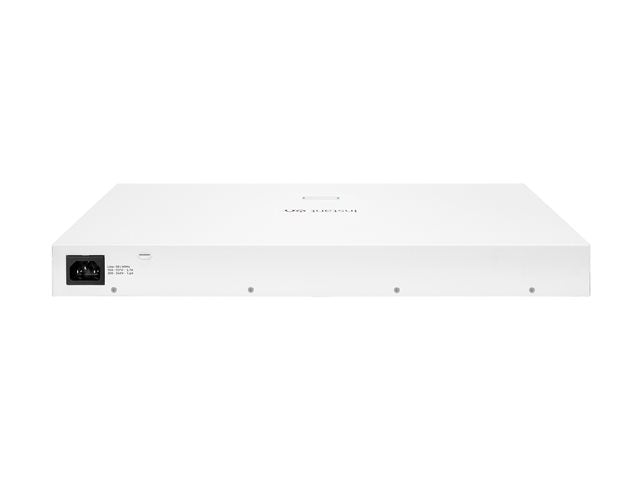

HPE Networking Instant On Switch 24p Gigabit CL4 PoE 2p SFP 195W 1830
Manufacturer P/N and ITTL SKU: JL813A#ACC
EAN: 190017523798
Product description
HPE Networking Instant On Switch 24p Gigabit CL4 PoE 2p SFP 195W 1830 provides 12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP. Its 195 W PoE budget supports compatible powered devices. Review the management and performance details below and contact In Touch Telecoms for network design or quantity quotations.
Product features
- Ports: 12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
- Power Over Ethernet (PoE): PoE+
- PoE Budget: 195 W
- Performance: Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 38.68 Mpps ¦ Switching capacity: 52 Gbps
- Remote Management Protocol: HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP
Main specifications
| Product Description | HPE Networking Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch - switch - 24 ports - smart - rack-mountable |
|---|---|
| Device Type | Switch - 24 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 195 W |
| Performance | Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 38.68 Mpps ¦ Switching capacity: 52 Gbps |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMP, IGMPv2 |
| Remote Management Protocol | HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP |
| Features | Auto-sensing per device, 1.5MB packet buffer, wall mountable, Cable Diagnostics Function, event log, Syslog support, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, flow control, IGMP snooping, Link Aggregation, LLDP support, loop protection, port mirroring, STP support, TPM, VLAN support, Port Scheduling, auto-negotiation, auto-uplink (auto MDI/MDI-X), CoS, cloud managed, DHCP client, firmware upgradable, QoS, SNTP support |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 44.3 cm x 25.3 cm x 4.39 cm |
| Weight | 3.47 kg |
| Localisation | English / United Kingdom |
| Manufacturer Warranty | Limited lifetime warranty |
Extended specification
General
| Flash Memory | 256 MB |
|---|---|
| Subtype | Gigabit Ethernet |
| RAM | 512 MB SDRAM |
| Encryption Algorithm | SSL |
| PoE Budget | 195 W |
| Power Over Ethernet (PoE) | PoE+ |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Device Type | Switch - 24 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Processor | 1 x ARM: 800 MHz |
| Performance | Latency (100 Mbps): 5.2 µs / Latency (1 Gbps): 2.8 µs / Throughput: 38.68 Mpps / Switching capacity: 52 Gbps |
| Ports | 12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Routing Protocol | IGMP, IGMPv2 |
| Remote Management Protocol | HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP |
| Features | Auto-sensing per device, 1.5MB packet buffer, wall mountable, Cable Diagnostics Function, event log, Syslog support, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, flow control, IGMP snooping, Link Aggregation, LLDP support, loop protection, port mirroring, STP support, TPM, VLAN support, Port Scheduling, auto-negotiation, auto-uplink (auto MDI/MDI-X), CoS, cloud managed, DHCP client, firmware upgradable, QoS, SNTP support |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at |
| Status Indicators | Port status, link/activity, speed, port duplex mode |
Expansion / Connectivity
| Interfaces | 12 x 1000Base-T RJ-45 / 2 x Gigabit LAN SFP / 12 x 1000Base-T RJ-45 PoE+ |
|---|
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime / Technical support - live chat - lifetime / Technical support - phone consulting - 90 days from date of purchase |
|---|
Miscellaneous
| Localisation | English / United Kingdom |
|---|---|
| MTBF | 96.6 years |
Power
| Power Device | Internal power supply |
|---|---|
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 244.6 Watt |
Environmental Parameters
| Min Operating Temperature | 0 °C |
|---|---|
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 95% (non-condensing) |
Dimensions & Weight
| Depth | 25.3 cm |
|---|---|
| Width | 44.3 cm |
| Height | 4.39 cm |
| Weight | 3.47 kg |
