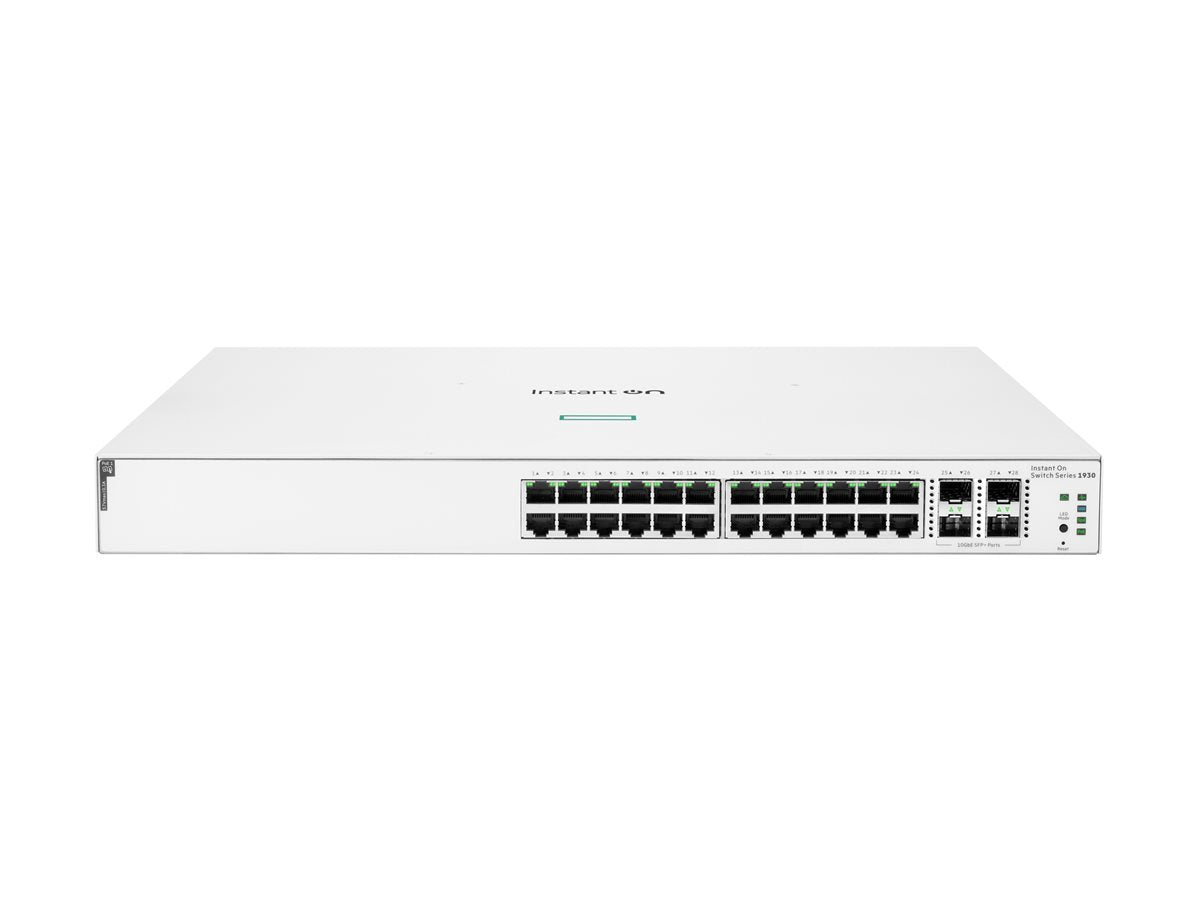

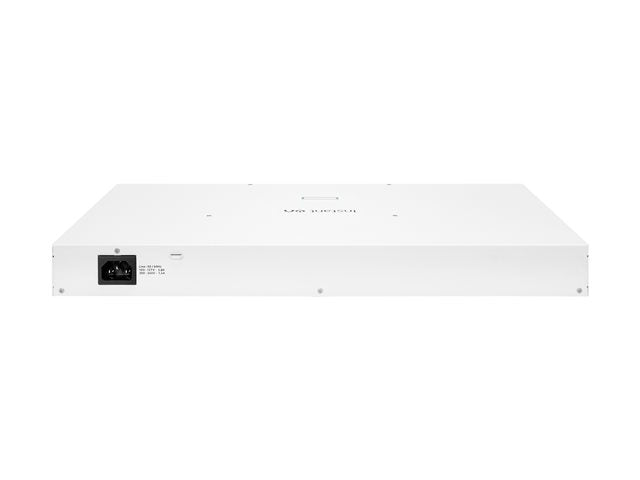

HPE Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 370W 1930
Manufacturer P/N and ITTL SKU: JL684B#ACC
EAN: 190017593470
Product description
HPE Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 370W 1930 provides 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+. Its 370 W PoE budget supports compatible powered devices. Review the management and performance details below and contact In Touch Telecoms for network design or quantity quotations.
Product features
- Ports: 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+
- Power Over Ethernet (PoE): PoE
- PoE Budget: 370 W
- Performance: Switching capacity: 128 Gbps ¦ Throughput: 95.23 Mpps ¦ Latency (1 Gbps): 2.4 µs ¦ Latency (10 Gbps): 1.3 µs
- Remote Management Protocol: SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Main specifications
| Product Description | HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch - switch - 28 ports - Managed - rack-mountable |
|---|---|
| Device Type | Switch - 28 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 370 W |
| Performance | Switching capacity: 128 Gbps ¦ Throughput: 95.23 Mpps ¦ Latency (1 Gbps): 2.4 µs ¦ Latency (10 Gbps): 1.3 µs |
| Capacity | Link aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
| Power | AC 120 V (50/60 Hz) |
| Dimensions (WxDxH) | 44.25 cm x 26.47 cm x 4.39 cm |
| Weight | 3.67 kg |
| Localisation | English / United Kingdom |
| Manufacturer Warranty | Limited lifetime warranty |
Extended specification
General
| Flash Memory | 256 MB |
|---|---|
| Subtype | Gigabit Ethernet |
| Authentication Method | RADIUS |
| RAM | 512 MB SDRAM |
| Encryption Algorithm | SSL |
| Routing Protocol | Static IP routing |
| PoE Budget | 370 W |
| Enclosure Type | Rack-mountable 1U |
| Power Over Ethernet (PoE) | PoE |
| Device Type | Switch - 28 ports - L3 - Managed |
| MAC Address Table Size | 16000 entries |
| Status Indicators | Port status, power, PoE |
| Jumbo Frame Support | 9216 bytes |
| Processor | 1 x ARM: 800 MHz |
| Ports | 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Capacity | Link aggregation ports: 8 / IPv4 routes (static): 32 / VLANs supported: 256 / Access Control Entries (ACEs) per ACL: 480 / Packet buffer size: 1.5 MB |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
| Performance | Switching capacity: 128 Gbps / Throughput: 95.23 Mpps / Latency (1 Gbps): 2.4 µs / Latency (10 Gbps): 1.3 µs |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4 |
Expansion / Connectivity
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE - 370 W / 4 x 1/10Gbit LAN SFP+ |
|---|
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
|---|
Miscellaneous
| Localisation | English / United Kingdom |
|---|---|
| MTBF | 71 years |
| Compliant Standards | CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN 55024:2010, CISPR 35, SSL, EN 55035:2017 |
Power
| Power Consumption Operational | 439 Watt |
|---|---|
| Power Device | Internal power supply |
| Voltage Required | AC 120 V (50/60 Hz) |
Environmental Parameters
| Min Operating Temperature | 0 °C |
|---|---|
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Humidity Range Operating | 15 - 95% (40 °C) |
| Humidity Range Storage | 15 - 95% (60 °C) |
Dimensions & Weight
| Weight | 3.67 kg |
|---|---|
| Height | 4.39 cm |
| Width | 44.25 cm |
| Depth | 26.47 cm |
