SKU: JL681A#ACC
Barcode: 190017355276
In stock: 1
HPE
HPE Networking Instant On Switch 8p Gigabit CL4 PoE 2p SFP 124W 1930 | JL681A#ACC
HPE Partner
HPE Networking Instant On Switch 8p Gigabit CL4 PoE 2p SFP 124W 1930 | JL681A#ACC
Couldn't load pickup availability
Complete your setup
In Touch Telecoms โ HPE Business Partner
HPE Networking Instant On Switch 8p Gigabit CL4 PoE 2p SFP 124W 1930Manufacturer P/N and ITTL SKU: JL681A#ACCEAN: 190017355276 Full Product Specification Product descriptionHPE Networking Instant On Switch 8p Gigabit CL4 PoE...
Full product details and specifications

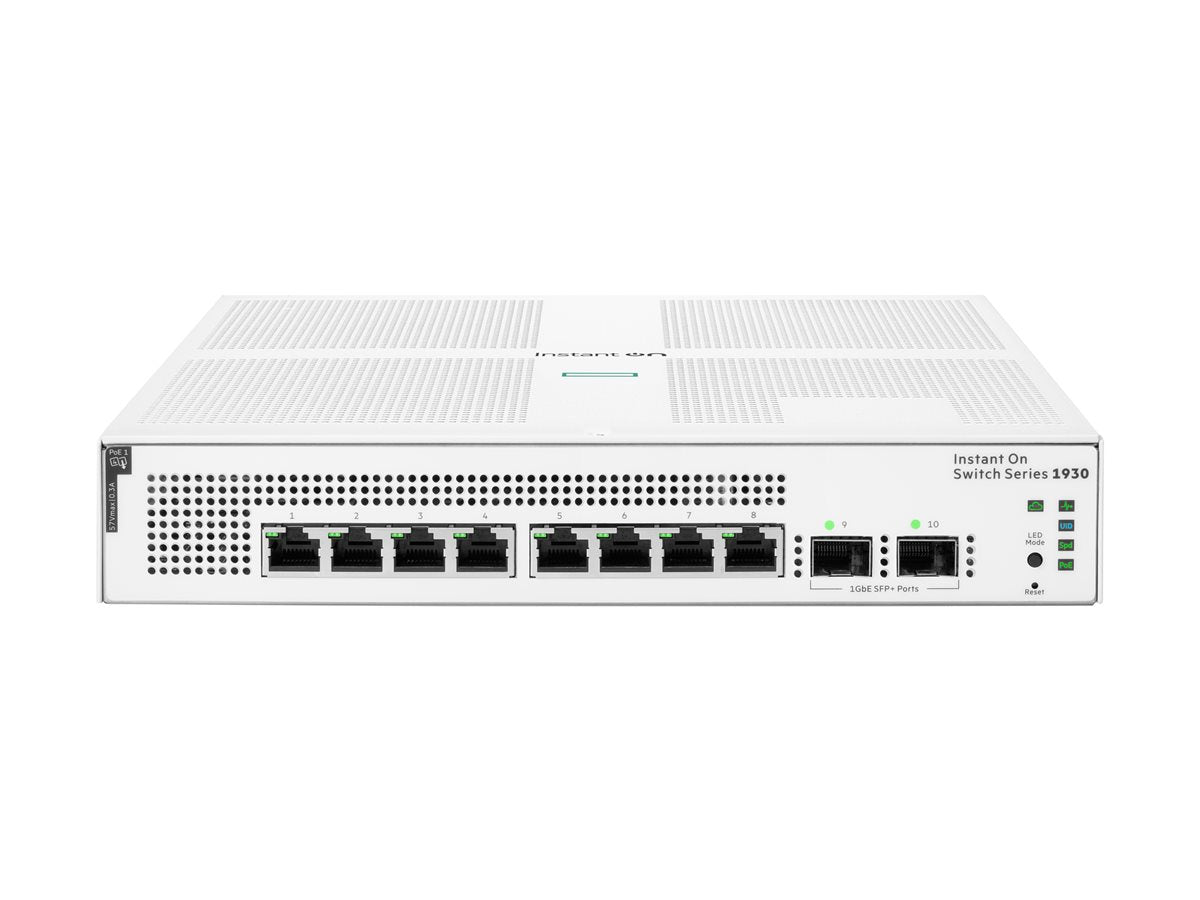

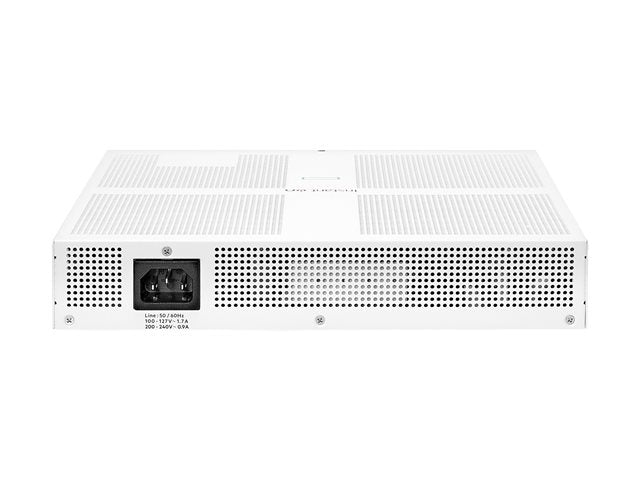

HPE Networking Instant On Switch 8p Gigabit CL4 PoE 2p SFP 124W 1930
Manufacturer P/N and ITTL SKU: JL681A#ACC
EAN: 190017355276
Product description
HPE Networking Instant On Switch 8p Gigabit CL4 PoE 2p SFP 124W 1930 provides 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP. Its 124 W PoE budget supports compatible powered devices. Review the management and performance details below and contact In Touch Telecoms for network design or quantity quotations.
Product features
- Ports: 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP
- Power Over Ethernet (PoE): PoE
- PoE Budget: 124 W
- Performance: Switching capacity: 20 Gbps ยฆ Throughput: 14.88 Mpps ยฆ Latency (100 Mbps): 5.2 ยตs ยฆ Latency (1 Gbps): 3 ยตs
- Remote Management Protocol: SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Main specifications
| Product Description | HPE Networking Instant On 1930 8G Class4 PoE 2SFP 124W Switch - switch - 10 ports - Managed - rack-mountable |
|---|---|
| Device Type | Switch - 10 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 124 W |
| Performance | Switching capacity: 20 Gbps ยฆ Throughput: 14.88 Mpps ยฆ Latency (100 Mbps): 5.2 ยตs ยฆ Latency (1 Gbps): 3 ยตs |
| Capacity | Link aggregation ports: 8 ยฆ IPv4 routes (static): 32 ยฆ VLANs supported: 256 ยฆ Access Control Entries (ACEs) per ACL: 480 ยฆ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 25.4 cm x 25.4 cm x 4.39 cm |
| Weight | 1.16 kg |
| Localisation | English / United Kingdom |
| Manufacturer Warranty | Limited lifetime warranty |
ย
Extended specification
General
| Flash Memory | 256 MB |
|---|---|
| Subtype | Gigabit Ethernet |
| Authentication Method | RADIUS |
| RAM | 512 MB SDRAM |
| Encryption Algorithm | SSL |
| Routing Protocol | Static IP routing |
| Enclosure Type | Rack-mountable 1U |
| Power Over Ethernet (PoE) | PoE |
| Device Type | Switch - 10 ports - L3 - Managed |
| MAC Address Table Size | 8000 entries |
| Status Indicators | Port status, power, PoE |
| PoE Budget | 124 W |
| Ports | 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP |
| Jumbo Frame Support | 9216 bytes |
| Processor | 1 x ARM Cortex-A9: 800 MHz |
| Capacity | Link aggregation ports: 8 / IPv4 routes (static): 32 / VLANs supported: 256 / Access Control Entries (ACEs) per ACL: 480 / Packet buffer size: 1.5 MB |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
| Performance | Switching capacity: 20 Gbps / Throughput: 14.88 Mpps / Latency (100 Mbps): 5.2 ยตs / Latency (1 Gbps): 3 ยตs |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPDU Filter, PoE Class 4 |
General
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 / 2 x Gigabit LAN SFP |
|---|
General
| Service & Support | Limited warranty - lifetime |
|---|
General
| Localisation | English / United Kingdom |
|---|---|
| Compliant Standards | VCCI, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 60825-1, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, EN 55032:2015+AC:2016, CISPR 35, SSL, IEC 62368-1: 2014 Second Edition, EN 55035:2017 |
| MTBF | 95 years |
General
| Power Consumption Operational | 150 Watt |
|---|---|
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
General
| Min Operating Temperature | 0 ยฐC |
|---|---|
| Max Operating Temperature | 40 ยฐC |
| Max Storage Temperature | 70 ยฐC |
| Min Storage Temperature | -40 ยฐC |
| Humidity Range Operating | 15 - 95% (40 ยฐC) |
| Humidity Range Storage | 15 - 95% (60 ยฐC) |
General
| Width | 25.4 cm |
|---|---|
| Depth | 25.4 cm |
| Weight | 1.16 kg |
| Height | 4.39 cm |
