SKU: P77239-425
Barcode: 190017767734
In stock: 3
HPE
HPE ProLiant DL325 Gen11 9224 2.5GHz 24c 64GB-R 8SFF MR408i-o 2x480GB SATA SSD 2x1000W RPS EU Server | P77239-425
HPE ProLiant DL325 Gen11 9224 2.5GHz 24c 64GB-R 8SFF MR408i-o 2x480GB SATA SSD 2x1000W RPS EU Server | P77239-425
Couldn't load pickup availability
In Touch Telecoms — HPE Business Partner

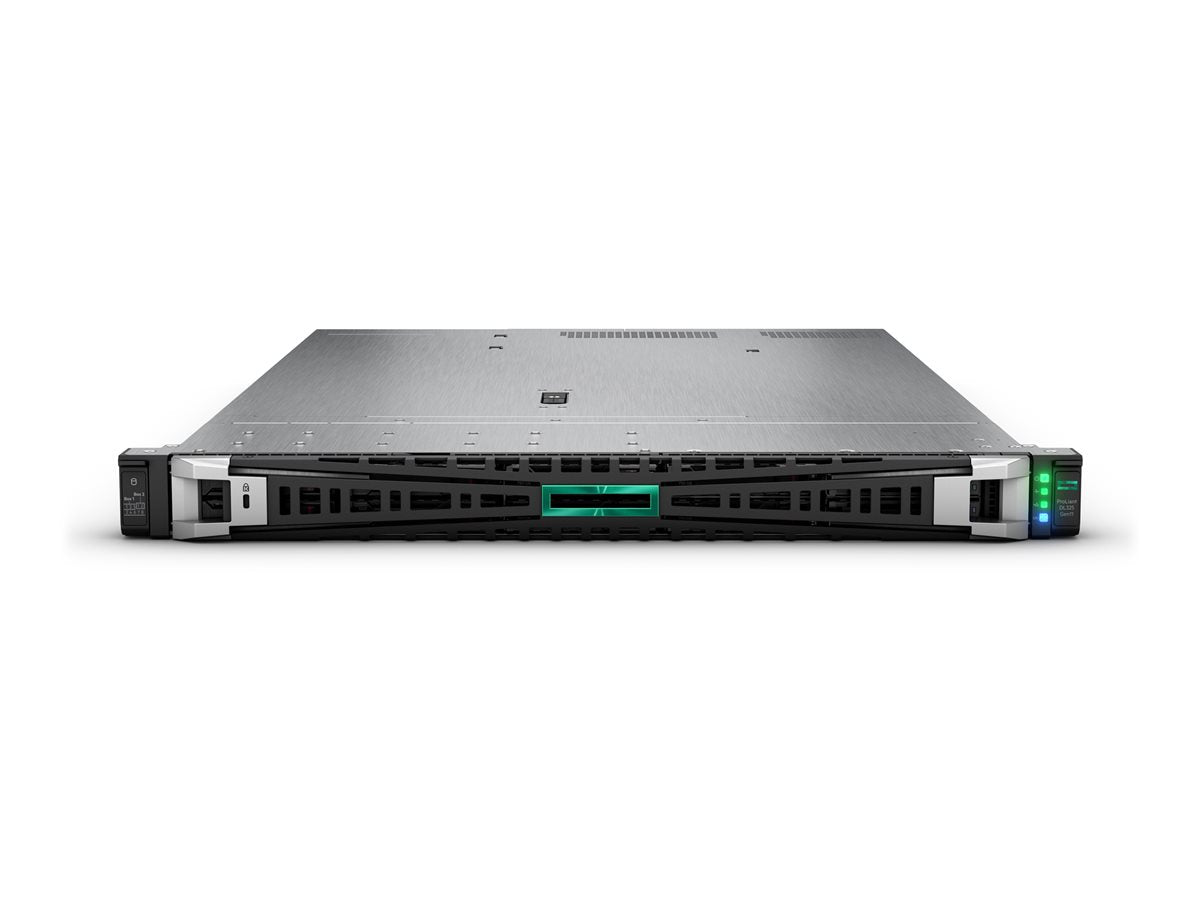

HPE ProLiant DL325 Gen11 9224 2.5GHz 24c 64GB-R 8SFF MR408i-o 2x480GB SATA SSD 2x1000W RPS EU Server
Manufacturer P/N and ITTL SKU: P77239-425
EAN: 190017767734
Product description
HPE ProLiant DL325 Gen11 9224 2.5GHz 24c 64GB-R 8SFF MR408i-o 2x480GB SATA SSD 2x1000W RPS EU Server is supplied with 1 x AMD EPYC 9224 / 2.5 GHz (up to 3.7 GHz, (24-core), 64 GB (installed) / 3 TB (max) - DDR5 SDRAM - Advanced ECC and 2 x SSD 480 GB - SATA. Discuss alternative memory, storage or support requirements using the quotation form.
Product features
- Processor: 1 x AMD EPYC 9224 / 2.5 GHz (up to 3.7 GHz, (24-core)
- RAM: 64 GB (installed) / 3 TB (max) - DDR5 SDRAM - Advanced ECC
- Hard Drive: 2 x SSD 480 GB - SATA
Main specifications
| Product Description | HPE ProLiant DL325 Gen11 - rack-mountable EPYC 9224 2.5 GHz - 64 GB - SSD 2 x 480 GB |
|---|---|
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localisation | Region: EMEA |
| Server Scalability | 1-way |
| Processor | 1 x AMD EPYC 9224 / 2.5 GHz (up to 3.7 GHz, (24-core) |
| Cache Memory | 64 MB L3 Cache |
| Cache Per Processor | 64 MB |
| RAM | 64 GB (installed) / 3 TB (max) - DDR5 SDRAM - Advanced ECC |
| Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP (HPE MR408i-o Gen11 SPDM) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x SSD 480 GB - SATA |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE, 10GbE |
| Power | (50/60 Hz) |
| Power Redundancy | Dual 1000W power supplies supplied |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Dimensions (WxDxH) | 43.46 cm x 64.94 cm x 4.29 cm |
| Weight | 12.56 kg |
| Manufacturer Selling Program | HPE Smart Choice |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
Extended specification
General
| Type | Server |
|---|---|
| Hot-Swap Bays Qty | 8 |
| Built-in Devices | Led panel |
| Server Scalability | 1-way |
| Product Form Factor | Rack-mountable - 1U |
| Localisation | Region: EMEA |
General
| Bays | 8 (total) / 6 (free) x hot-swap 2.5" SFF |
|---|---|
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode) |
| Interfaces | 1 x HPE iLO (1 in front) (service port) / 1 x HPE iLO - RJ-45 / 1 x VGA / 2 x LAN (1/10 Gigabit Ethernet) / 5 x USB 3.2 Gen 1 (1 front, 2 rear, 2 internal) |
General
| Service & Support | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
|---|
General
| Configuration Features | 2 x 32 GB |
|---|---|
| Form Factor | DIMM 288-pin |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Slots | 12 (Total) / 10 (empty) |
| Technology | DDR5 SDRAM - Advanced ECC |
| Installed Size | 64 GB (installed) / 3 TB (max) |
| Features | Registered, HPE SmartMemory, Online Spare Memory |
General
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
|---|---|
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM57416 |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Remote Management Controller | Integrated Lights-Out 6 |
| Remote Management Protocol | IPMI 2.0, SNMP 3 |
| Features | PXE support, Wake on LAN (WoL) |
General
| Manufacturer Selling Program | HPE Smart Choice |
|---|---|
| Compliant Standards | AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1, SMBIOS 3.1, Redfish API, ErP Lot 9, UEFI 2.7, UEFI Class 3, Active Directory v1.0, APML 1.0 |
| Included Accessories | 7 x standard fans, HPE Easy Install Rail 2 Kit |
General
| Installed Qty | 2 |
|---|---|
| Max Supported Qty | 2 |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| 80 PLUS Certification | 80 PLUS Titanium |
| Voltage Required | AC 100-120/200-240 V (50/60 Hz) |
| Power Provided | 1000 watt |
General
| Min Operating Temperature | 10 °C |
|---|---|
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
General
| Channel Qty | 8 |
|---|---|
| Buffer Size | 4 GB |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Type | 1 x RAID - OCP |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
General
| Cache Per Processor | 64 MB |
|---|---|
| Installed Size | L3 Cache - 64 MB |
General
| Type | No optical drive |
|---|
General
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
|---|---|
| OS Certified | CentOS, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, SuSE Linux Enterprise Server 12 SP3, Red Hat Enterprise Linux 7.4, Red Hat Enterprise Linux 7.5, VMware vSphere 6.5 (ESXi) Update 2, VMware vSphere 6.7 (ESXi) |
General
| Monitor Type | None. |
|---|
General
| Video Memory | 16 MB |
|---|---|
| Video Interfaces | VGA |
General
| Interface Type | SATA |
|---|---|
| Type | SSD |
| Capacity | 2 x 480 GB |
General
| Height | 4.29 cm |
|---|---|
| Width | 43.46 cm |
| Weight | 12.56 kg |
| Depth | 64.94 cm |
General
| Shipping Height | 24.2 cm |
|---|---|
| Shipping Width | 60 cm |
| Shipping Depth | 91.6 cm |
General
| CPU Qty | 1 |
|---|---|
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Clock Speed | 2.5 GHz |
| Max Turbo Speed | 3.7 GHz |
| Number of Cores | 24-core |
| CPU | AMD EPYC 9224 |
General
| ENERGY STAR Version | 4.0 |
|---|---|
| ENERGY STAR Certified | Yes |
