HP
HPE ProLiant DL380 Gen10 SMB
HPE ProLiant DL380 Gen10 SMB
Couldn't load pickup availability

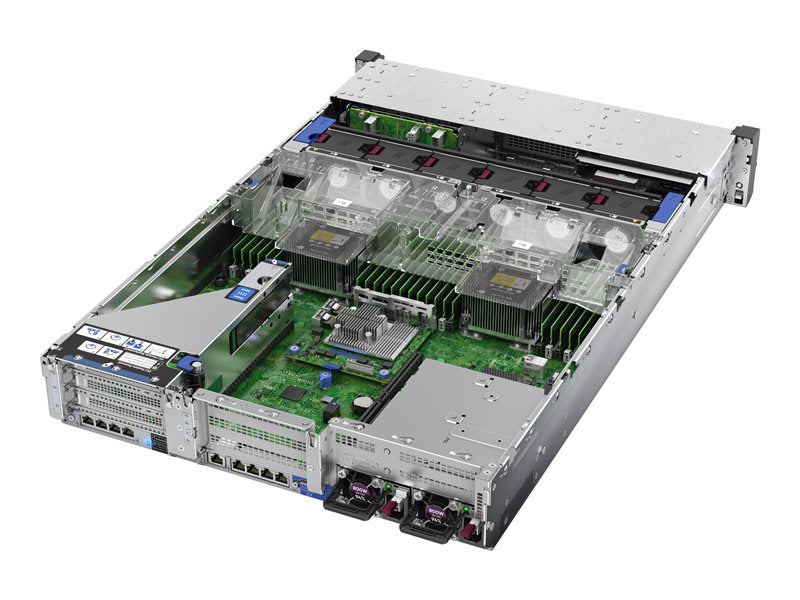

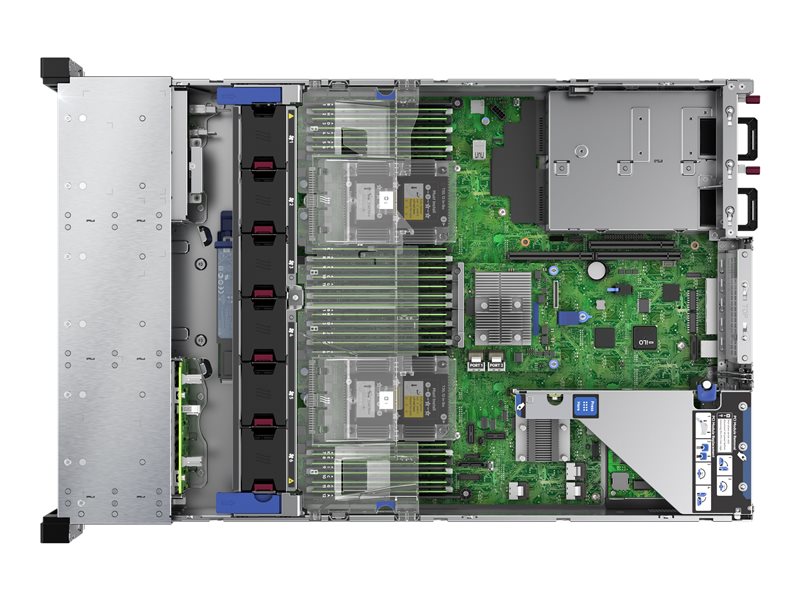

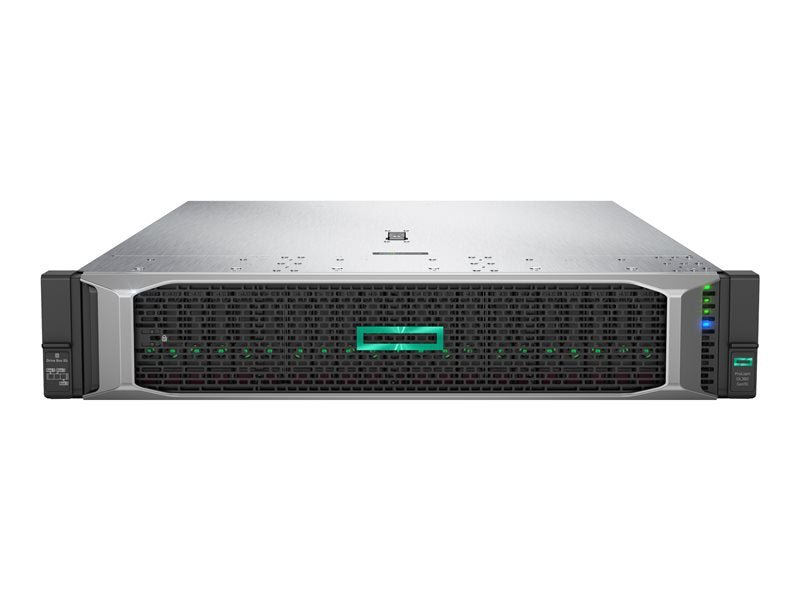

HPE ProLiant DL380 Gen10 SMB
Product Description
The HPE ProLiant DL380 Gen10 server delivers great security, performance and expandability. It's securely designed to reduce costs and complexity.
Main Specifications
| Product Description | HPE ProLiant DL380 Gen10 SMB - rack-mountable - Xeon Silver 4214 2.2 GHz - 16 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Localisation | Region:Worldwide |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon Silver 4214 / 2.2 GHz (3.2 GHz) (12-core) |
| Processor Socket | FCLGA3647 Socket |
| Processor Main Features | Hyper-Threading Technology,Intel Turbo Boost Technology 2 |
| Cache Memory | 16.5 MB L3 Cache |
| Cache Per Processor | 16.5 MB |
| RAM | 16 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (HPE Smart Array P816i-a) |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Software Included | HPE Server UEFI |
| Dimensions (WxDxH) | 44.54 cm x 73.02 cm x 8.73 cm |
| Weight | 17.1 kg |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labour - 3 years - on-site - response time:next business day |
Extended Specification collapse
| General | |
|---|---|
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 12 |
| Localisation | Region:Worldwide |
| Processor / Chipset | |
|---|---|
| CPU | Intel Xeon Silver 4214 |
| Clock Speed | 2.2 GHz |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology,Intel Turbo Boost Technology 2 |
| CPU Socket | FCLGA3647 Socket |
| Chipset Type | Intel C621 |
| Cache Memory | |
|---|---|
| Installed Size | L3 Cache - 16.5 MB |
| Cache Per Processor | 16.5 MB |
| RAM | |
|---|---|
| Installed Size | 16 GB / 1.5 TB (max) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2933 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 24 (Total) / 23 (empty) |
| Features | Registered,dual rank,slots 13 - 24 are available in two-processor configuration only,HPE SmartMemory,6-channel memory architecture |
| Configuration Features | 1 x 16 GB |
| RAM Supported | 3 TB Load-Reduced - ECC 1.5 TB registered - ECC 192 GB Non-Volatile - ECC |
| Hard Drive | |
|---|---|
| Type | No HDD |
| Storage Controller | |
|---|---|
| Type | 1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | HPE Smart Array P816i-a |
| Channel Qty | 16 |
| RAID Level | RAID 0,RAID 1,RAID 5,RAID 6,RAID 10,RAID 50,RAID 60,RAID 1 ADM,RAID 10 ADM |
| Buffer Size | 2 GB |
| Optical Storage | |
|---|---|
| Type | No optical drive |
| Monitor | |
|---|---|
| Monitor Type | None. |
| Graphics Controller | |
|---|---|
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Networking | |
|---|---|
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | HPE 331i |
| Data Link Protocol | Ethernet,Fast Ethernet,Gigabit Ethernet |
| Remote Management Protocol | SNMP 3,IPMI 2.0,SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 5 |
| Features | Wake on LAN (WoL),PXE support |
| Expansion / Connectivity | |
|---|---|
| Bays | 12 (total) / 12 (free) x hot-swap 3.5" LFF |
| Slots | 1 (total) / 1 (free) x FlexibleLOM 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length,full-height 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length,full-height 1 (total) / 1 (free) x microSD Card (internal) |

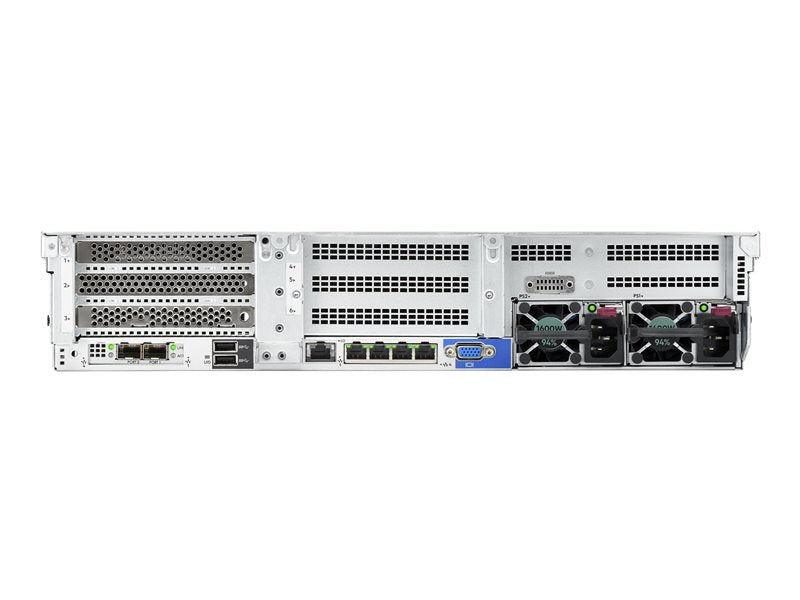

| Interfaces | 4 x LAN (Gigabit Ethernet) - RJ-45 1 x HPE iLO - RJ-45 (1 rear) 1 x VGA (1 rear) 8 x SATA-600 / SAS 3.0 1 x HPE iLO - Type A (1 in front) 5 x USB 3.0 (1 front,2 rear,2 internal) |
| Miscellaneous | |
|---|---|
| Included Accessories | Cable management arm,6 performance fans,LFF Easy Install rails |
| Compliant Standards | AES,FIPS 140-2,IPv6 Ready,PCI DSS,TLS v1.2,ASHRAE Class A4,ASHRAE Class A3,WEEE 2002/95/EC,ACPI 6.1 |
| Power | |
|---|---|
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 800 Watt |
| Operating System / Software | |
|---|---|
| OS Certified | SUSE Linux Enterprise Server,Microsoft Windows Server,Red Hat Enterprise Linux |
| Software | HPE Server UEFI |
| Environmental Standards | |
|---|---|
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 2.1 |
| Manufacturer Warranty | |
|---|---|
| Service &Support | Limited warranty - parts and labour - 3 years - on-site - response time:next business day |
| Dimensions &Weight | |
|---|---|
| Width | 44.54 cm |
| Depth | 73.02 cm |
| Height | 8.73 cm |
| Weight | 17.1 kg |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
