TP-Link RJ45 to Multi-Mode SC Fiber Converter - 1 Gbps | MC200CM
TP-Link RJ45 to Multi-Mode SC Fiber Converter - 1 Gbps | MC200CM
Couldn't load pickup availability
TP-Link RJ45 to Multi-Mode SC Fiber Converter - 1 Gbps | MC200CM

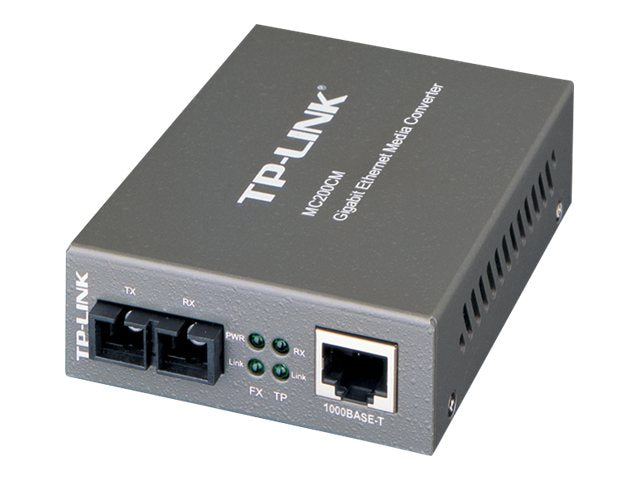

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards,the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19'system chassis,Auto MDI/MDI-X for TX port,and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
- Complies with IEEE 802.3ab and IEEE 802.3z
- Link fault passthrough and far end fault minimize the loss caused by link failure timely
- Provides switch configuration of force /auto transfer mode for FX port
- Extends fiber distance up to 0.5km
- Supports auto MID/MID-X for TX port
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
Main Specifications
| Product Description | TP-Link MC200CM - fibre media converter - GigE |
| Device Type | Fibre media converter - RJ-45 / SC multi-mode |
| Form Factor | External |
| Cabling Type | 1000Base-SX,1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | GigE |
| Max Transfer Distance | 550 m |
| Dimensions (WxDxH) | 9.5 cm x 7.3 cm x 2.7 cm |
| Designed For | P/N:TL-MC1400,TL-SG3452XP V1 |
Extended Specification
| General | |
|---|---|
| Device Type | Fibre media converter |
| Form Factor | External |
| Networking | |
|---|---|
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX,1000Base-T |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 550 m |
| Status Indicators | Power,receive,link/activity |
| Features | Flow control,auto-uplink (auto MDI/MDI-X),full duplex mode |
| Compliant Standards | IEEE 802.3z,IEEE 802.3ab,IEEE 802.3x |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female 1 x Ethernet 1000Base-SX - SC multi-mode female x 2 |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC |
| Power | |
|---|---|
| Power Device | External power adapter |
| Dimensions & Weight | |
|---|---|
| Width | 9.5 cm |
| Depth | 7.3 cm |
| Height | 2.7 cm |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% |
| Compatibility Information | |
|---|---|
| Designed For | P/N:TL-MC1400,TL-SG3452XP V1 |
